Views of Projector Parts

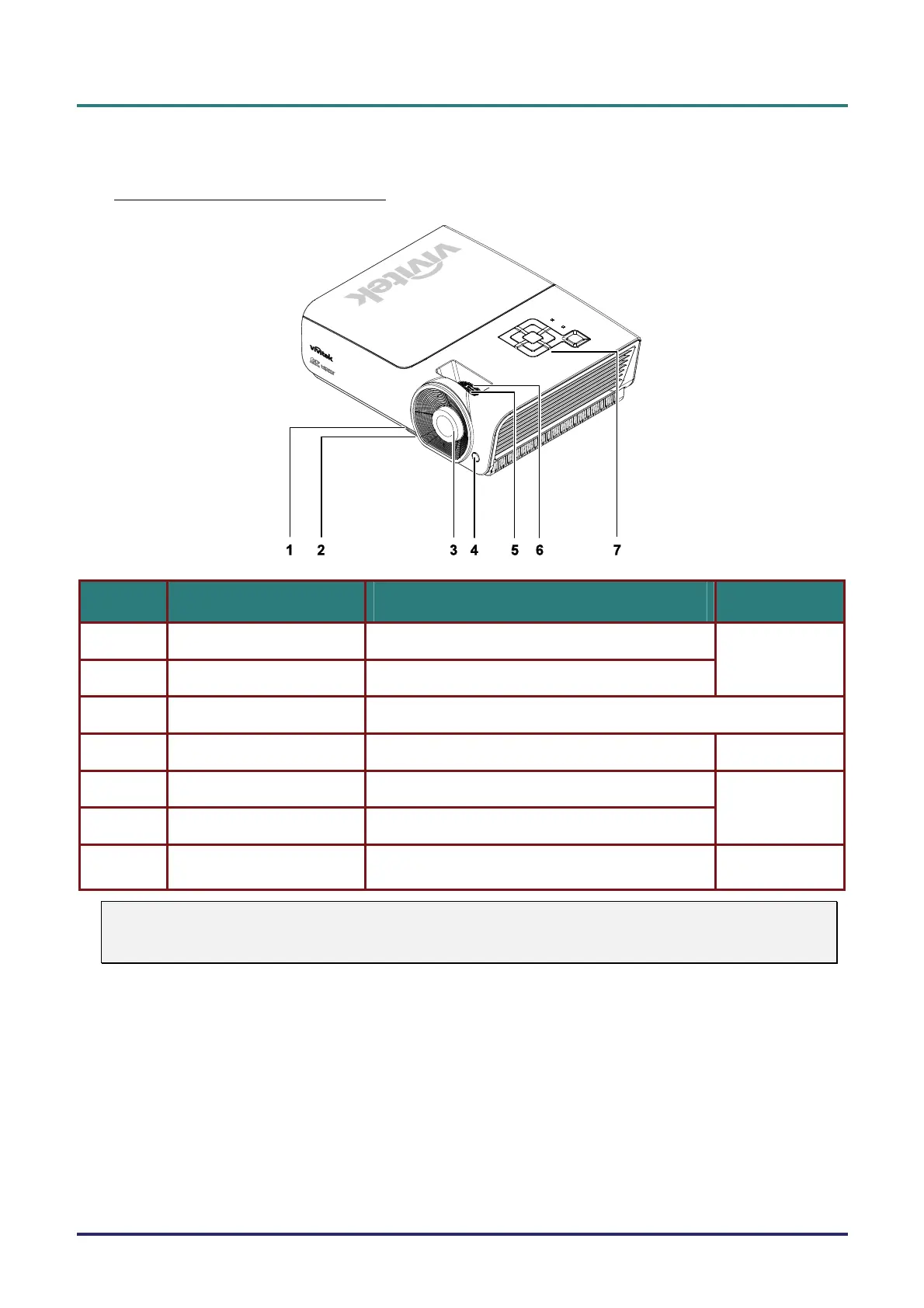

H1080 Series Front-right View
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Height-adjuster button Push to release height adjuster
2.
Height adjuster Adjusts level of projector
13
3.
Lens Projection Lens
4.
IR receiver Receive IR signal from remote control
6
5.
Focus ring Focuses the projected image
6.
Zoom ring Enlarges the projected image
14
7.
Function keys
See Top view—On-screen Display (OSD) buttons
and LEDs.
3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
