4 5
STEP 3

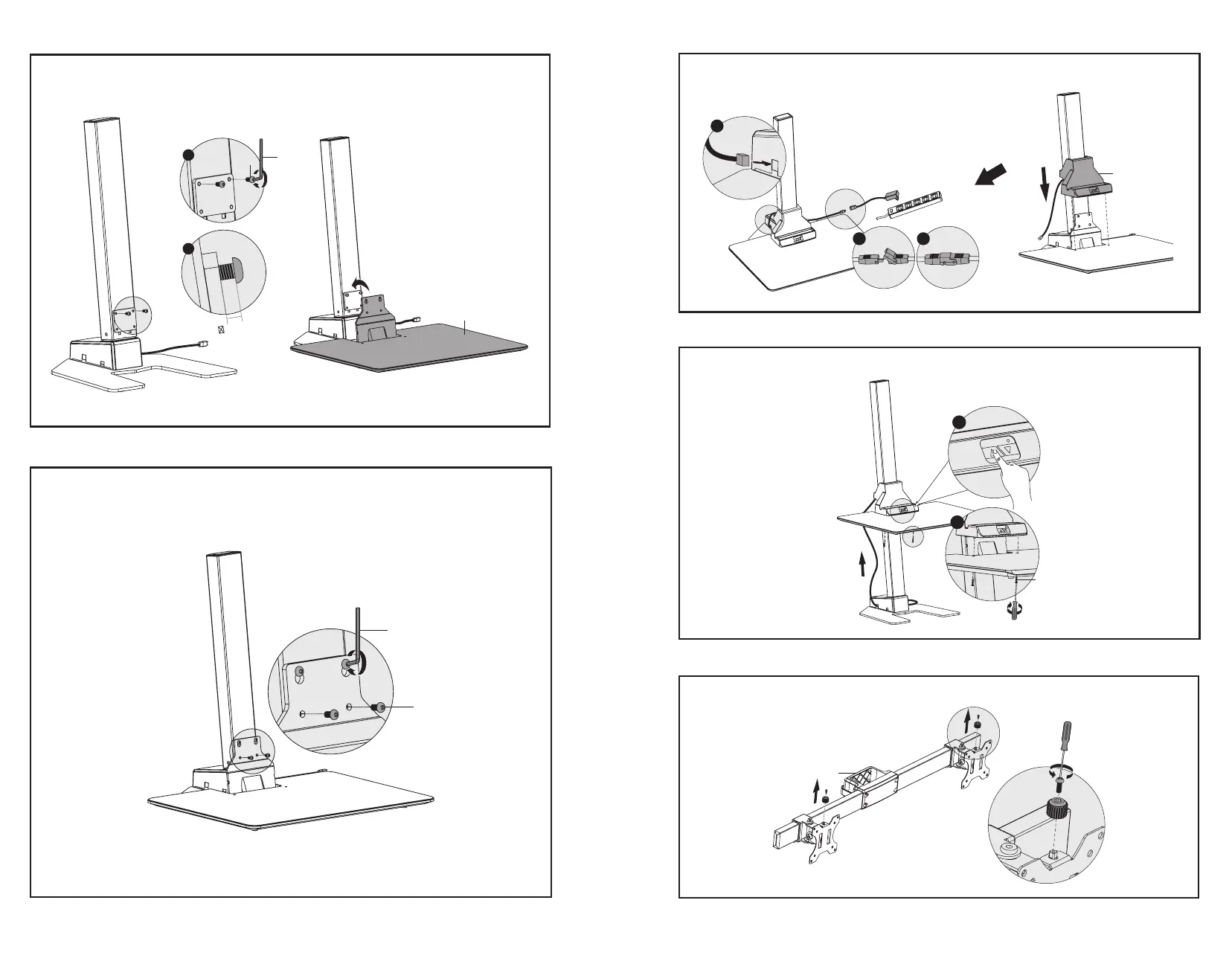

Insert two more screws (H) into the bottom 2 holes at the base of pole (A) using 4mm allen wrench.
Tighten all 4 screws.
J
H
Insert power cord (F) at base of pole (A). Slide decorative cover (C) onto base of pole (A).
STEP 4
N
O P
C
Use up arrow to raise tray (E). Insert screws (G) into bottom of tray (E) as shown in diagram.
STEP 5
N
G
O
Insert two screws (H) into the top 2 holes at the base of pole (A) using 4mm allen wrench (J) as shown
in diagram. Do not tighten completely. Hang tray (E) on screws just inserted.
STEP 2
J
H
N
O
6mm
E
STEP 6
Remove VESA plates by turning knob counterclockwise. Keep all parts nearby.
D
To Next Page
