VIVOTEK
User's Manual - 53

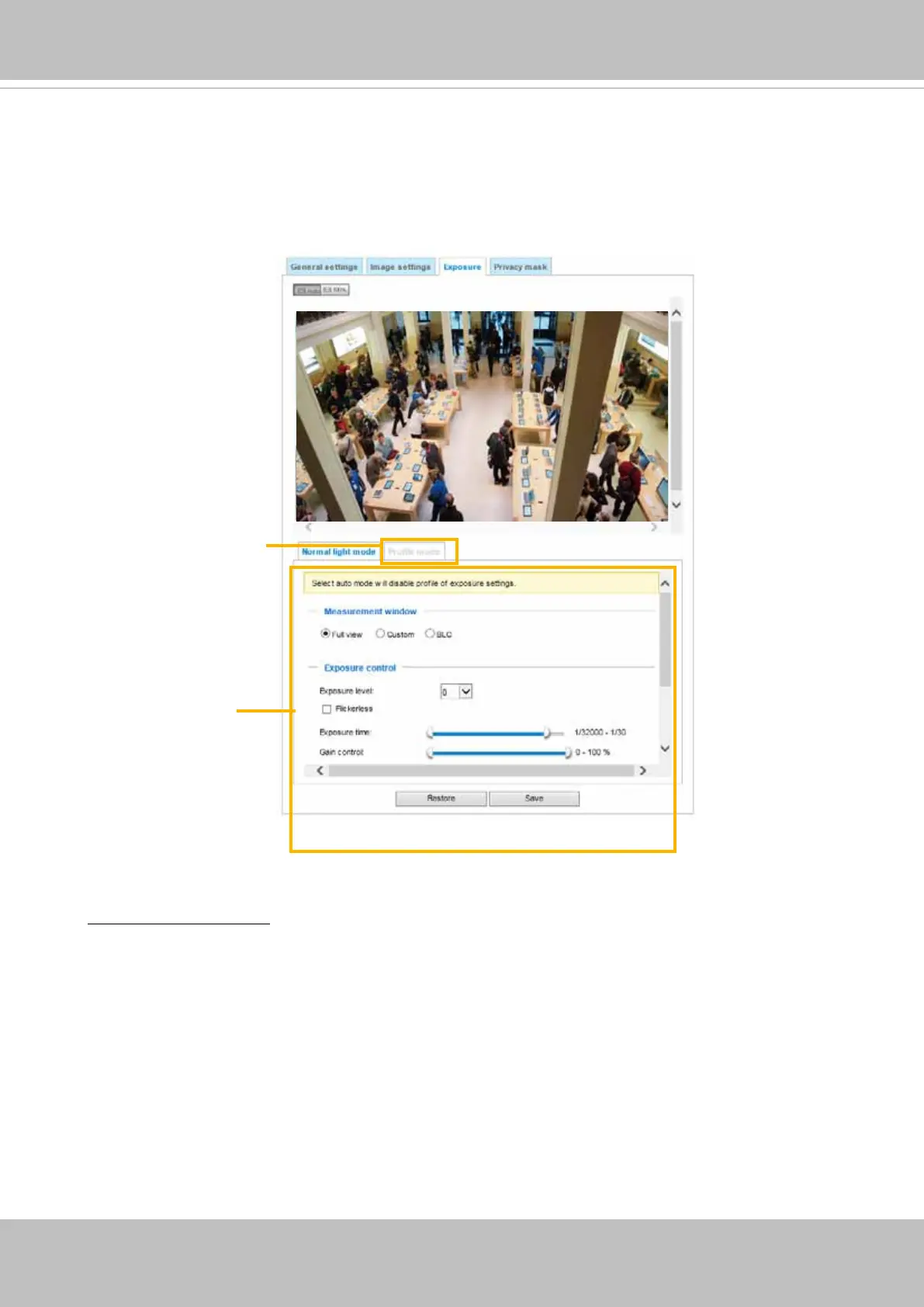

Exposure
On this page, you can congure the Exposure measurement window, Exposure level, Exposure
time, Gain control, and WDR Enhanced settings. You can congure two sets of Exposure settings:
one for normal situations, the other for special situations, such as the prole schedule mode.
Sensor Setting 1:
For normal situations
Sensor Setting 2:
For special situations
Measurement Window: This function allows users to configure measurement window(s) for
exposure compensation. For example, where low-light objects are posed against an extremely
bright background. You may want to exclude the bright sunlight shining through a building's
corridor.
■ Full view: Calculate the full range of view and offer appropriate
light compensation.
■ Custom: This option allows you to manually add customized windows as inclusive or exclusive
regions. A total of 10 windows can be configured. Please refer to the next page for detailed
illustration.
