Mounting the Network Camera - Ceiling or Wall Mount

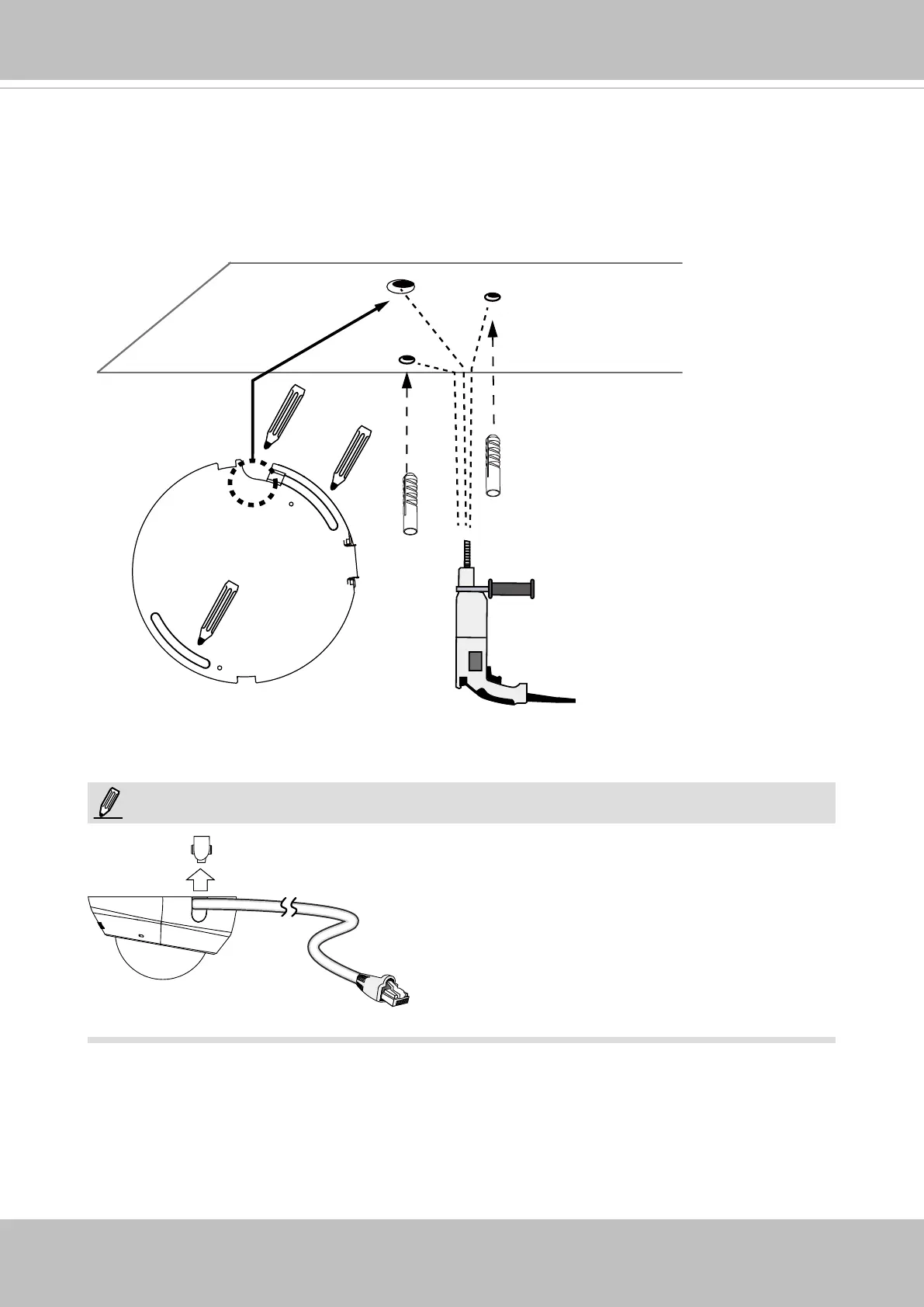

4. Use the curved slots on the camera as a template to mark where holes will be drilled on
the ceiling. Drill two holes into the ceiling; and hammer in the plastic anchors.
5. Drill another hole if you want to route cables through the ceiling or wall.
6. Connect and route an Ethernet cable through the ceiling or wall.
7. Attach the Network Camera to the ceiling using two included screws.
Routing hole
position
NOTE:
1. Do not completely tighten the mounting screws
in the screw slots yet. You may need to turn the
camera left or right for a best shooting direction
later.
2. The camera can only be powered by PoE. There
is no DC or AC input connector.
3. As shown on the left, you may also route cable
from the side.
