User's Manual - 7
Installation
30mm
Front mark

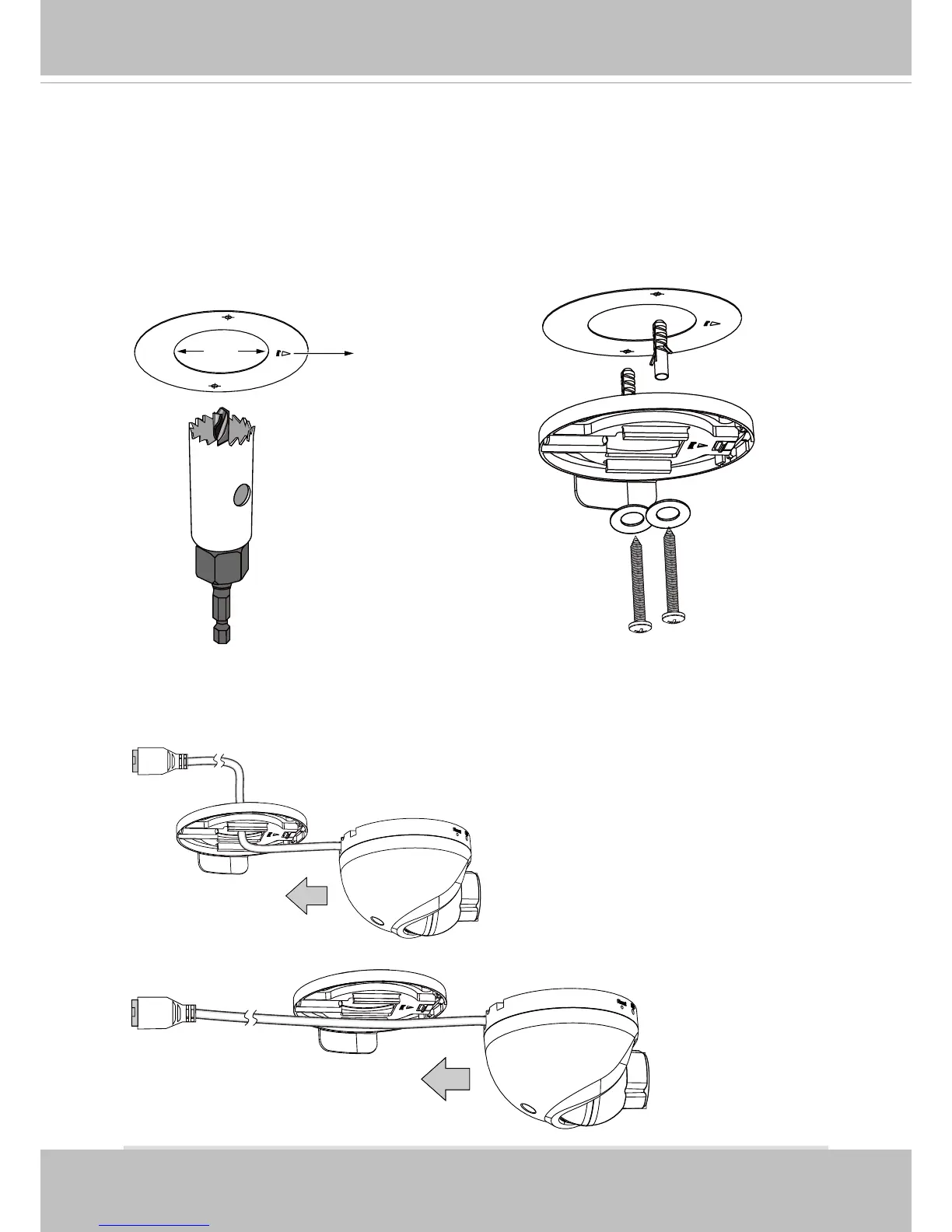

Ceiling Mount Procedure:
1. Attach the alignment sticker to a preferred
location, with the Front mark facing the
shooting direction.
3. Install the mount bracket using the self-
tapping screws.
2. Drill a 30mm cabling hole if preferred.
4. Pass the Ethernet cable through the cabling hole or along the wall.
5. Join the camera with the mount bracket by sliding it along the grooves to t into place.
Mount bracket
