312 - User's Manual
Model
FD8182-T: Vari-focal, P-iris, Remote Focus
FD8182-F2: Fixed-focal
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 1Gb
RAM 4Gb
Camera Features
Image Sensor 1/3.2" Progressive CMOS
Maximum Resolution 2560x1920 (5MP)
Lens Type
FD8182-T: Vari-focal
FD8182-F2: Fixed-focal
Focal Length
FD8182-T: f = 3 ~ 9 mm
FD8182-F2: f= 2.8 mm
Aperture
FD8182-T: F1.2 ~ F16
FD8182-F2: F2.1
Auto-iris P-iris (FD8182-T)
Field of View
FD 8182-T:
35° ~ 78° (Horizontal)
27° ~ 54° (Vertical)
44° ~ 101° (Diagonal)
FD8182-F 2:
90° (Horizontal)
67° (Vertical)
118° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Enhanced
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination
FD8182-T:
0.04 Lux @ F1.2 (Color)
0.001 Lux @ F1.2 (B/W)
FD8182-F 2:
0.39 Lux @ F2.1 (Color)
0.001 Lux @ F2.1 (B/W)
Pan/tilt/zoom Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators
Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*8
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264 & MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
In both compression modes
Maximum Streams 4 simultaneous streams
S/N Ratio 67dB
Dynamic Range 70dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings
Adjustable image size, quality and bit rate, Time stamp,
text overlay, flip & mirror, Configurable brightness,
contrast, saturation, sharpness, white balance,
exposure control, gain, backlight compensation, privacy
masks,Scheduled profile settings, seamless recording,
smart stream, 3D Noise Reduction, Video Rotation,
Defog
Audio
Audio Capability Two-way Audio (full duplex)
Compression G.711, G.726
Interface
Internal microphone input
External line output
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP,
IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS,
QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e
& CAT6 cables which are compliant with the 3P/ETL
standard.

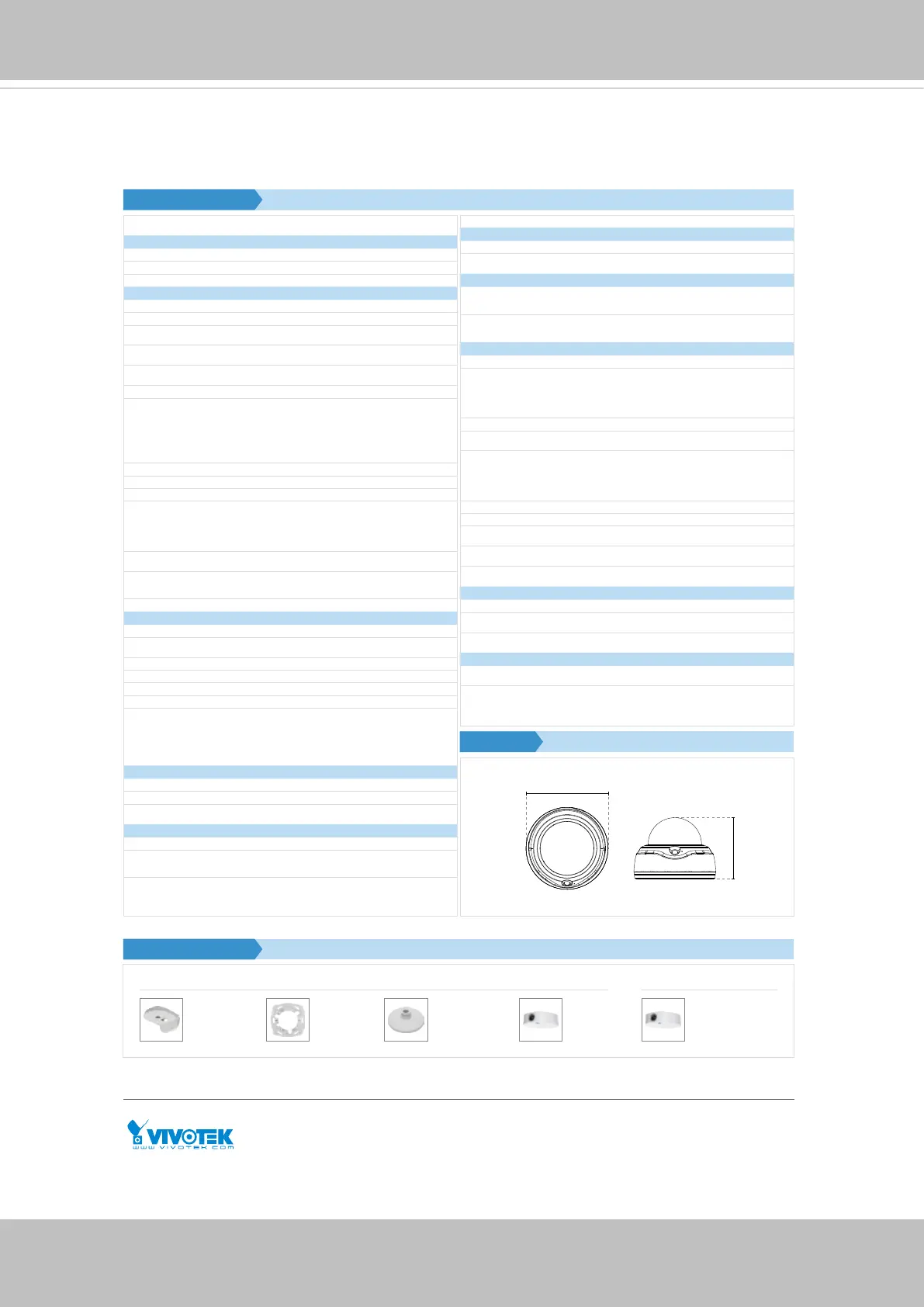

Technical Specifications
Compatible Accessories
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
VC A*
Line crossing detection, field detection, loitering
detection
Alarm and Event
Alarm Triggers
Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification,
camera tampering detection, audio detection
Alarm Events
Event notification using digital output, HTTP, SMTP, FTP
and NAS server, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System FD8182-T: Remote Focus
Connectors
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input
DC 12V
IEEE 802.3at PoE
Power Consumption
FD 8182-T:
Max. 8 W (DC 12V)
Max. 9.5 W (PoE)
FD8182-F 2:
Max. 7.5 W (DC 12V)
Max. 9 W (PoE)
Dimensions Ø 138 x 103 mm
Weight 541g
Safety Certifications
FD8182-T:CE, LVD, FCC Class B, VCCI, C-Tick, UL
FD8182-F2:CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
Warranty
36 months (FD8182-T)
24 months (FD8182-F2)
System Requirements
Operating System Microsoft Windows 7/8/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation
Wizard 2, ST7501 32-channel recording software
Others
Quick installation guide, warranty card, alignment
sticker/desiccant
bag, screw pack
Dimensions
Ø138 mm
103 mm
Mounting Kits
AM-215 (v02)
L Shape Bracket
PoE Kits
AM-517 (v03)
Adapter Ring
AM-520 (v03)
Mounting Adapter
AM -712
Conduit Box
AP-FXC- 0201
PoE Extender with
Conduit Box
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: salesusa@vivotek.com
VIVOTEK USA
Ver. 3
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36-5298-434
E: saleseurope@vivotek.com
VIVOTEK Europe
602, Best sky Tower, Plot No. F-5,
Netaji Subhash Place, Pitam Pura, Delhi-110 034
T: +91-11-45137465
E: salesindia@vivotek.com
VIVOTEK India
* Available per project request
