VIVOTEK
User's Manual - 7
Hardware Installation

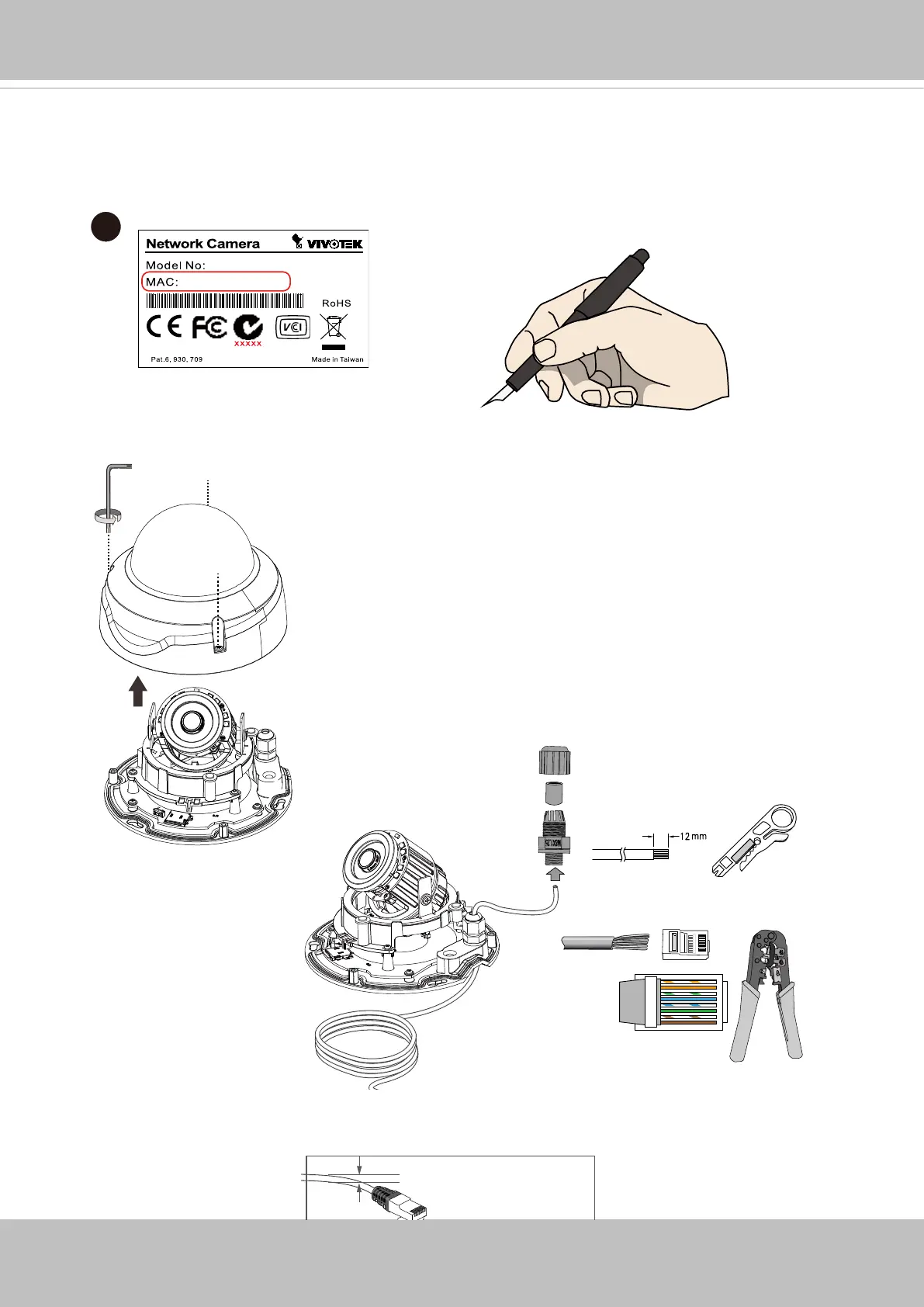

2. Use the included anti-tamper key wrench to remove the dome cover.
0002D10766AD
XXXXXX
1
1. Jot down the camera's MAC address for later reference.
Ethernet
port
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
M8X1.25
5~6.3mm
3. Loosen and remove the waterproof connectors.
4. Insert an Ethernet cable through the cable gland, and the
rubber seal.
5. Remove part of cable sheath.
6. You will need an RJ45 crimping tool to attach the Ethernet
wires to a connector. When done, connect the cable to the
camera’s Ethernet RJ45 socket.
To Next Page
