Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.

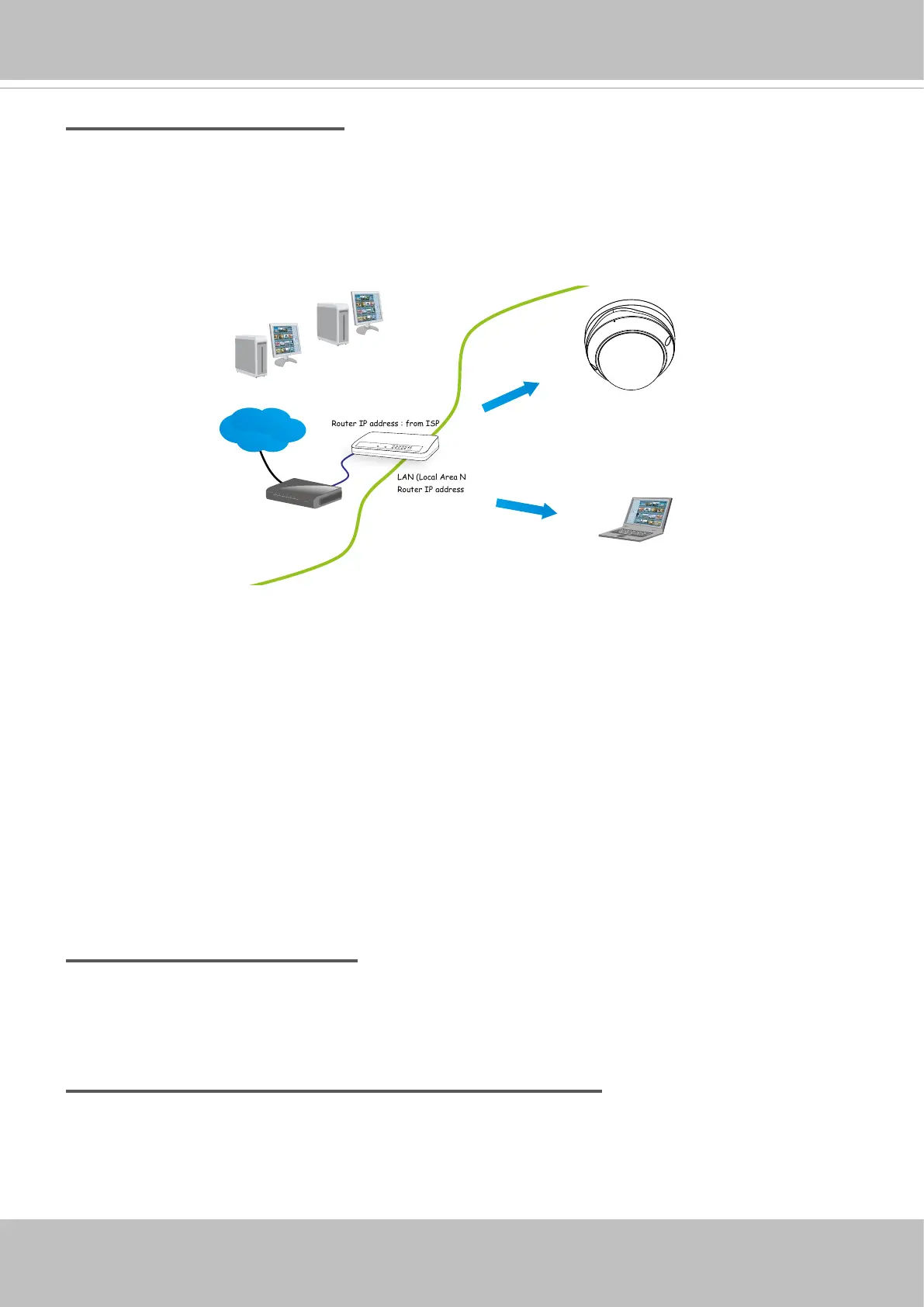

1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 20 for
details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ HTTP port: default is 80
■ RTSP port: default is 554
■ RTP port for video: default is 5556
■ RTCP port for video: default is 5557
If you have changed the port numbers on the Network page, please open the ports
accordingly on your router. For information on how to forward ports on the router, please refer
to your router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 81 for details.
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN setting on page 80 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 81 for details.

Vivotek FD9369 Specifications

General

Type	IP security camera
Certification	CE, FCC, ICES-003, RCM, VCCI, Safety, UL, CB, IA, BIS, IK10, IP66
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Wi-Fi	-
Number of users	10 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Flash memory	256 MB
Compatible memory cards	SD, SDHC, SDXC
Ethernet LAN (RJ-45) ports	1
Sensor type	CMOS
Optical sensor size	1/3.1 \
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Power consumption (typical)	4 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
International Protection (IP) code	IP66
Pan range	0 - 350 °
Tilt angle range	-10 - 75 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.08 lx
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Audio system	1-way
Audio formats supported	G.711, G.726
Signal-to-Noise Ratio (SNR)	59 dB
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, H.265, M-JPEG
Image quality adjustment	Brightness, Saturation, Sharpness
LED type	IR
Night vision distance	30 m
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Digital zoom	18 x
Focal length range	2.8 mm

Weight and Dimensions

Weight	465 g
Diameter	110 mm
