Vivotek FD9369 User Manual

VIVOTEK
User's Manual - 55
Media > Image

This section explains how to configure the image settings of the Network Camera. It is
composed of the following columns: General settings, IR control, Image settings, Exposure,
Focus, and Privacy mask. The Focus window is available only for models that come with
motorized lens.

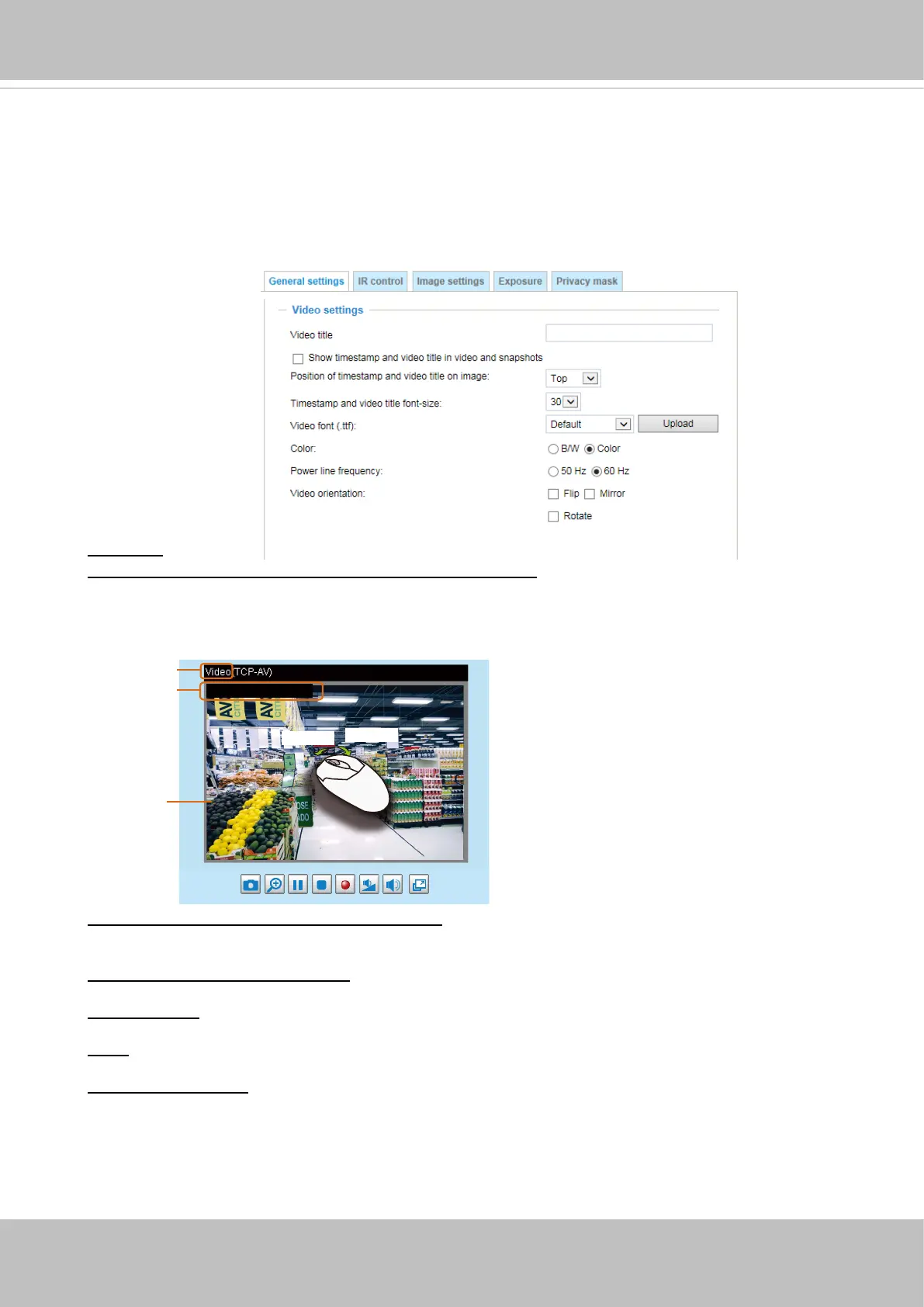

General settings
Video title
Show_timestamp_and video_title_in_video_and_snapshots: Enter a name that will be displayed on
the title bar of the live video as the picture shown below. A zoom indicator will be displayed on the
Home page when you zoom in/out on the live viewing window as shown below. You may zoom in/
out on the image by scrolling the mouse wheel inside the live viewing window, and the maximum
zoom in will be up to 12 times.
Position of timestamp and video title on image: Select to display time stamp and video title on the
top or at the bottom of the video stream.
Timestamp and video title font size: Select the font size for the time stamp and title.
Video font (.ttf): You can select a True Type font le for the display of textual messages on video.
Color: Select to display color or black/white video streams.
Power line frequency: Set the power line frequency consistent with local utility settings to eliminate
image flickering associated with fluorescent lights. Note that after the power line frequency is
changed, you must disconnect and reconnect the power cord of the Network Camera in order for
the new setting to take e󰀨ect.
Video Title
Title and Time
Video 17:08:56 2018/7/09
2018/7/09 17:08:56
X2.1
Zoom Factor
Zoom In
Zoom Out

Vivotek FD9369 Specifications

General

Type	IP security camera
Certification	CE, FCC, ICES-003, RCM, VCCI, Safety, UL, CB, IA, BIS, IK10, IP66
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Wi-Fi	-
Number of users	10 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Flash memory	256 MB
Compatible memory cards	SD, SDHC, SDXC
Ethernet LAN (RJ-45) ports	1
Sensor type	CMOS
Optical sensor size	1/3.1 \
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Power consumption (typical)	4 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
International Protection (IP) code	IP66
Pan range	0 - 350 °
Tilt angle range	-10 - 75 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.08 lx
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Audio system	1-way
Audio formats supported	G.711, G.726
Signal-to-Noise Ratio (SNR)	59 dB
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, H.265, M-JPEG
Image quality adjustment	Brightness, Saturation, Sharpness
LED type	IR
Night vision distance	30 m
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Digital zoom	18 x
Focal length range	2.8 mm

Weight and Dimensions

Weight	465 g
Diameter	110 mm
