Vivotek FE8171V - Hardware Installation

EN - 5
English
Hardware Installation
3
Dome Cover Retainer
Rubber Stopper on
the hole for Power &
IO Cables
Tamper-proof Screw
Rubber Seal Plug
on the hole for RJ45
Ethernet Cable
i
Connect the supplied power
& IO cables if your switch
does not support PoE.

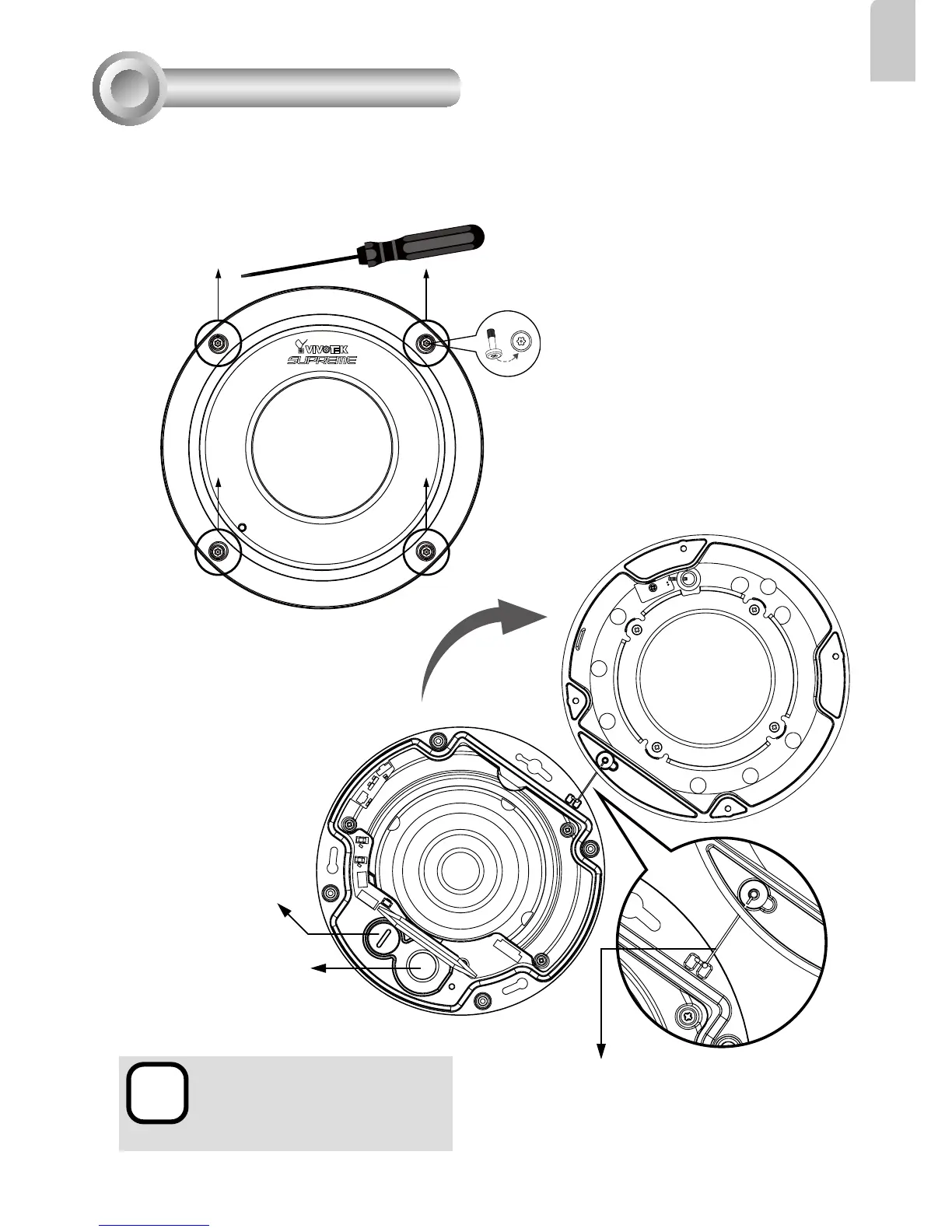

First, use the supplied screwdriver to loose the four screws and detach the dome cover from the
camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.
