Vivotek IB836BA-HT User Manual

VIVOTEK
8 - User's Manual
3.5 ~ 6mm

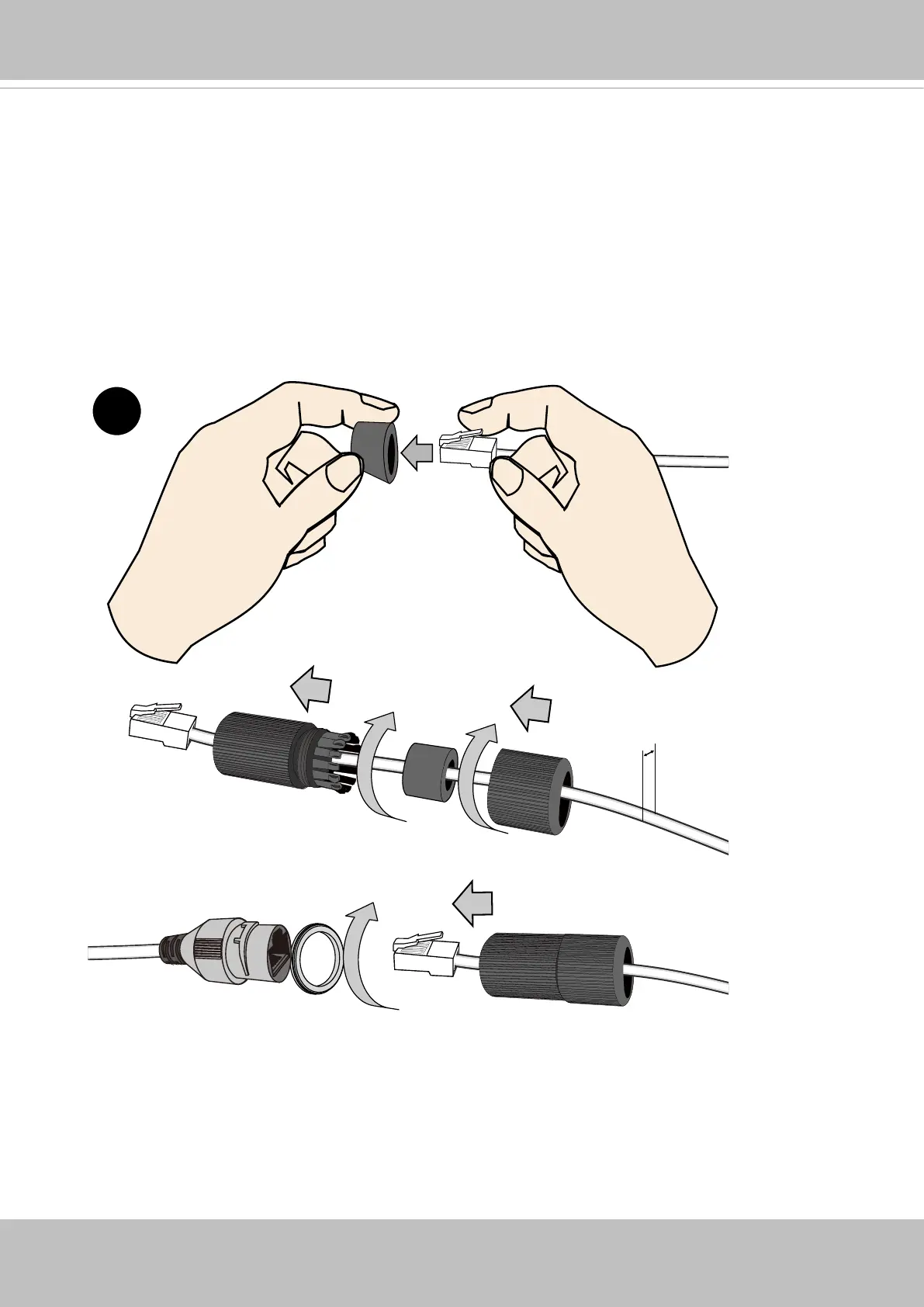

8. When connecting the LAN cable, use the cable housing to make sure the connections
are waterproof.
8-1. Pass the cable through the seal dome, and squeeze the rubber seal through an RJ45
connector.
8-2. You can then pass the cable through the cable gland body.
8-3. Fasten up these components. Make sure enough pressure is exerted on the rubber
seal.
8-4. Connect the Ethernet cable to the RJ45 connector with a seal ring. Fasten the cable
housing.
8

Vivotek IB836BA-HT Specifications

General

Brand	Vivotek
Model	IB836BA-HT
Category	Security Camera
Language	English
