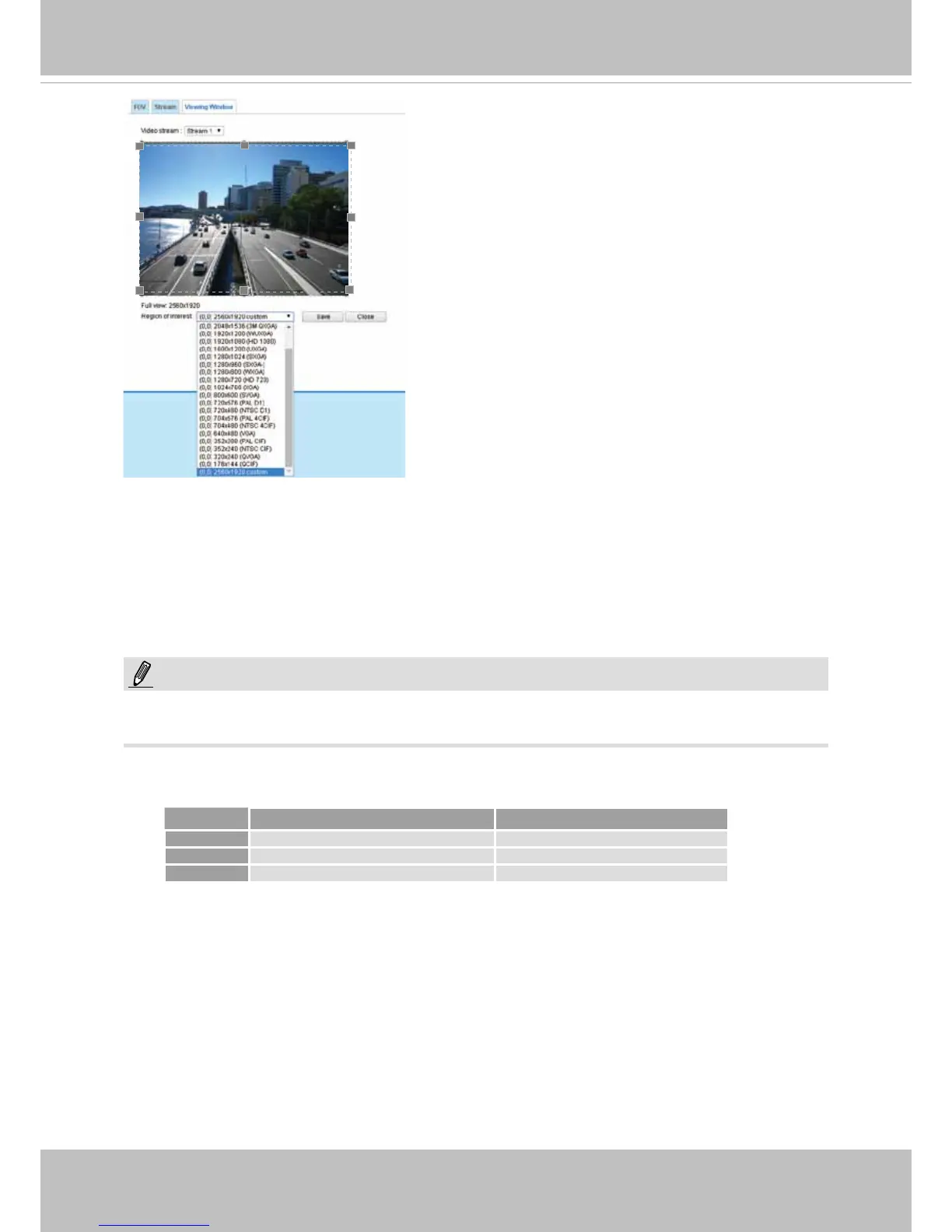

Please follow the steps below to congure video stream settings:
1. Select a stream for which you want to set up the viewing region.
2. Select a Region of Interest from the drop-down list. The oating frame, the same as the one
in the Gloabl View window on the home page, will resize accordingly. If you want to set up a
customized viewing region, you can also resize and drag the oating frame to a desired position
using your mouse.
3. Choose a proper Output Frame Size from the drop-down list according to the size of your
monitoring device.
► All the items in the “Region of Interest” should not be larger than the “Output Frame Size“
(current maximum resolution).
■ The parameters of the multiple streams:
NOTE:
Region of Interest Output frame size
Stream 1 2560 x 1920 ~ 176 x 144 (Selectable) 2560 x 1920 ~176 x 144 (Selectable)
Stream 2 2560 x 1920 ~ 176 x 144 (Selectable) 2560 x 1920 ~176 x 144 (Selectable)
Stream 3 2560 x 1920 (Fixed) 2560 x 1920 ~176 x 144 (Selectable)
