Vivotek IB9371-HT User Manual

VIVOTEK
16 - User's Manual
13. Install the "Installation Wizard 2" software utility on your software CD.
14. The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras
on the same LAN.
15. Double-click on the camera's MAC address to open a browser management session with
the camera.

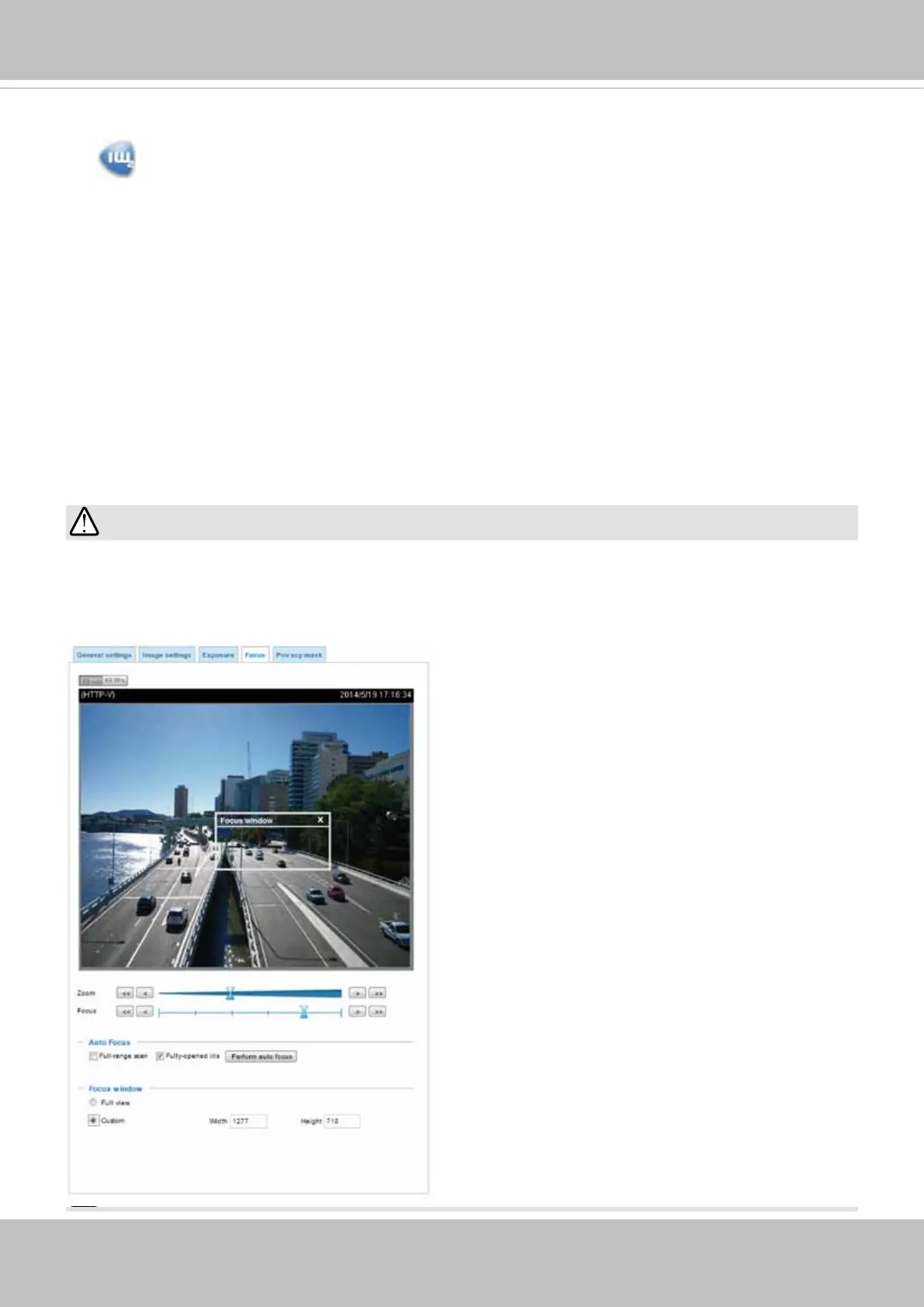

15. With a live view is displayed on your laptop, adjust the zoom and focus to obtain an optimal
image. Check the live view to ensure the image is in focus.
The "T" models comes with motorized focus lens. Use the Auto Focus function in rmware
menu for best image.
Perform the Auto Focus function for best image. However, if you have cascaded cameras, do
this one by one. Do not perform this function simultaneously on multiple cameras because the
motorized lens also consume considerable power, and may cause the last camera on the line to
hang.
IMPORTANT:

Vivotek IB9371-HT Specifications

General

Built-in HDD	-
Flash memory	128 MB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Certification	CE, LVD, FCC Class A, VCCI, C-Tick, UL
Placement supported	Outdoor
Connectivity technology	Wired
Video streaming	Adjustable resolution, quality and bitrate Smart Stream II
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video formats supported	H.264, H.265
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	2048 x 1536 (QXGA)
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	48 x
Focal length range	3 - 9 mm
Maximum aperture number	2.3
Audio input	1
Camera shutter speed	1/5 - 1/16000 s
Minimum illumination	0.001 lx
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
LED indicators	Power, Status
Housing material	Metal
Protection features	Vandal proof
International Protection (IP) code	IP66
LED type	IR
Night vision distance	30 m
Audio system	2-way
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	60 dB
Browser supported	Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
Number of users	10 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface	RJ-45
DC output voltage	12
Power source type	PoE
Power consumption (max)	11 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Height	293 mm
Weight	1182 g
Diameter	88 mm
