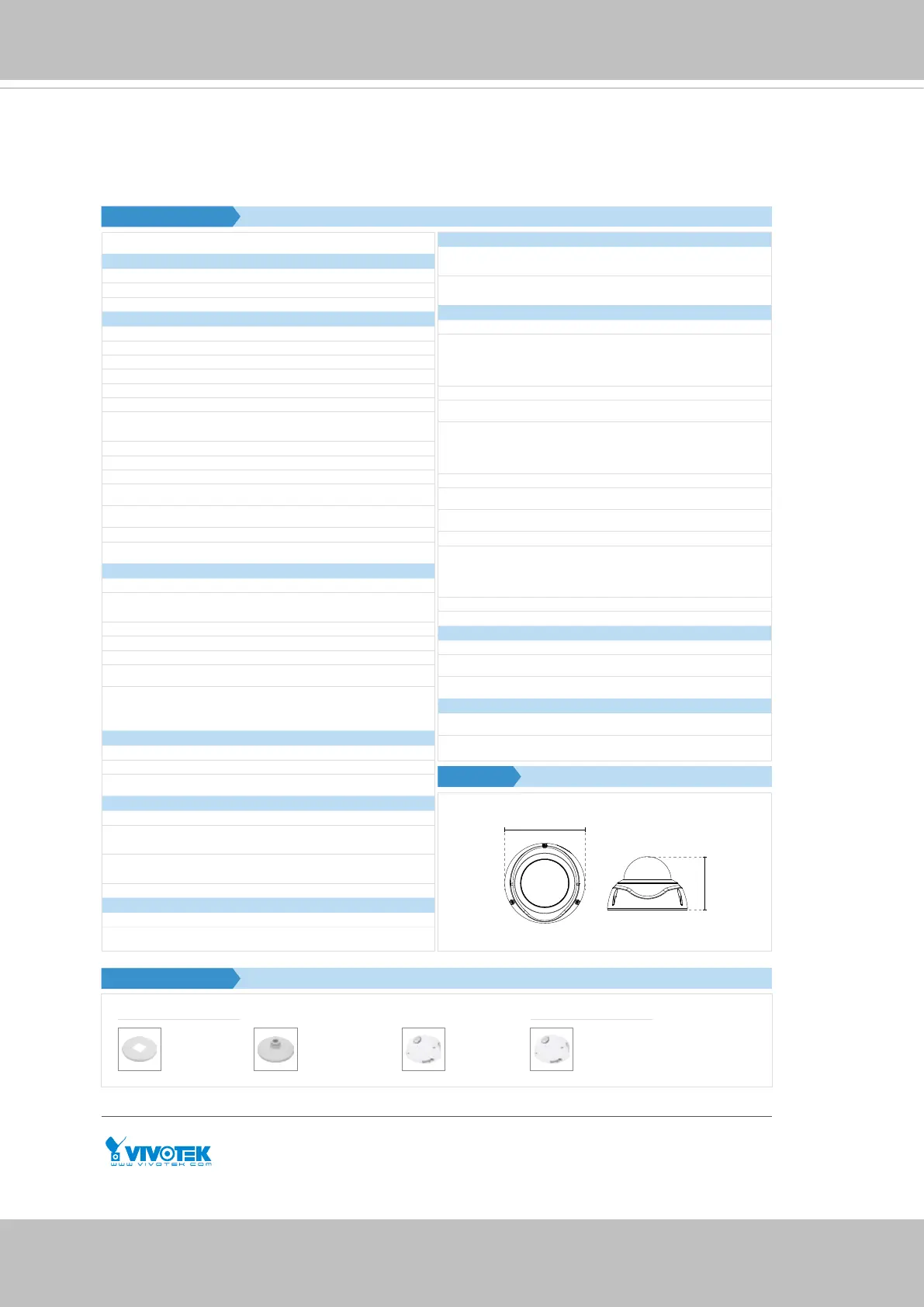

Technical Specications
Model
FD9371-HTV: Remote Focus
FD9371-EHTV: Remote Focus, Extreme Weather
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 512 MB
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Maximum Resolution 2048x1536 (3MP)
Lens Type Vari-Focal
Focal Length f = 3 ~ 9 mm
Aperture F1.2 ~ F2.3
Auto-iris P-iris
Field of View
41° ~ 86° (Horizontal)
31° ~ 64° (Vertical)
51° ~ 113 (Diagonal)
Shutter Time 1/5 sec. to 1/16000 sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination
0.01 Lux @ F1.2 (Color)
0.001 Lux @ F1.2 (B/W)
Pan/Tilt/Zoom
Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators 30 meters
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.265 & H.264 & MJPEG
Maximum Frame Rate
30fps @ 2048x1536
30fps @ 1920x1080
In all compression modes
Maximum Streams 3 simultaneous streams
S/N Ratio 60 dB
Dynamic Range 100 dB
Video Streaming
Adjustable resolution, quality and bitrate
Smart Stream II
Image Settings
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white
balance, exposure control, gain, backlight compensation,
privacy masks
Scheduled profile settings, 3DNR, video rotation, defog
Audio
Audio Capability Two-Way Audio (full duplex)
Compression G711, G726
Interface
External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP, ARP, SSL, TLS
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables
which are compliant with the 3P/ETL standard.
ONVIF Supported, specifications available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
VC A* Line crossing detection, field detection, loitering detection
Technical Specifications
Compatible Accessories
Alarm and Event
Alarm Triggers
Video motion detection, manual trigger, digital input, periodical
trigger, system boot, recording notification, camera tampering
detection, audio detection
Alarm Events
Event notification using digital output, HTTP, SMTP, FTP and NAS
server, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Remote focus
Connectors
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input
12V DC
IEEE 802.3at PoE
Power Consumption
FD9371- HTV:
Max. 9.6 W (DC 12V)
Max. 12 W (PoE)
FD9371-EHTV:
Max. 21 W (DC 12V-Heater on)
Max. 24.7 W (PoE-Heater on)
Dimensions Ø 155 x 103 mm
Weight
FD9371-HTV: 927 g
FD9371-EHTV: 928 g
Casing
Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature
FD9371- HTV
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
FD9371- EHT V
Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
Humidity 90%
Warranty 36 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation Wizard 2,
VAST
Others
Quick installation guide, mounting bracket, screw pack,
alignment sticker, desiccant bag, water-proof connectors
Dimensions
Ø155 m m
103 mm
Mounting Kits PoE Kits
AM-51C (v01)
Adapter Ring
AM-525 (v01)
Mounting Adapter
AM -713
Conduit Box
AP-FXC- 0251
PoE Extender with
Conduit Box
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: salesusa@vivotek.com
VIVOTEK USA
Ver. 13
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36 -5298 -434
E: saleseurope@vivotek.com
VIVOTEK Europe
602, Best sky Tower, Plot No. F-5,
Netaji Subhash Place, Pitam Pura, Delhi-110 034
T: +91-11-45137465
E: salesindia@vivotek.com
VIVOTEK India
* Available per project request.

Vivotek IB9371-HT Specifications

General

Built-in HDD	-
Flash memory	128 MB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Certification	CE, LVD, FCC Class A, VCCI, C-Tick, UL
Placement supported	Outdoor
Connectivity technology	Wired
Video streaming	Adjustable resolution, quality and bitrate Smart Stream II
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video formats supported	H.264, H.265
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	2048 x 1536 (QXGA)
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	48 x
Focal length range	3 - 9 mm
Maximum aperture number	2.3
Audio input	1
Camera shutter speed	1/5 - 1/16000 s
Minimum illumination	0.001 lx
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
LED indicators	Power, Status
Housing material	Metal
Protection features	Vandal proof
International Protection (IP) code	IP66
LED type	IR
Night vision distance	30 m
Audio system	2-way
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	60 dB
Browser supported	Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
Number of users	10 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface	RJ-45
DC output voltage	12
Power source type	PoE
Power consumption (max)	11 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Height	293 mm
Weight	1182 g
Diameter	88 mm
