Vivotek IB9371-HT User Manual

VIVOTEK
56 - User's Manual
IR cut lter
With a removable IR-cut lter, this Network Camera can automatically remove the lter to let IR
light enter the light sensor during low light conditions.
■ Auto mode
The Network Camera automatically removes the lter by judging the level of ambient light.
■ Day mode
In day mode, the Network Camera switches on the IR cut lter at all times to block infrared light
from reaching the sensor so that the colors will not be distorted.
■ Night mode
In night mode, the Network Camera switches off the IR cut lter at all times for the sensor to
accept infrared light, thus helping to improve low light sensitivity.
■ Synchronize with digital input
The Network Camera automatically removes the IR cut lter when a Digital Input is triggerred.
For example, an external IR light may come with its own detection circuits.
Exclude x

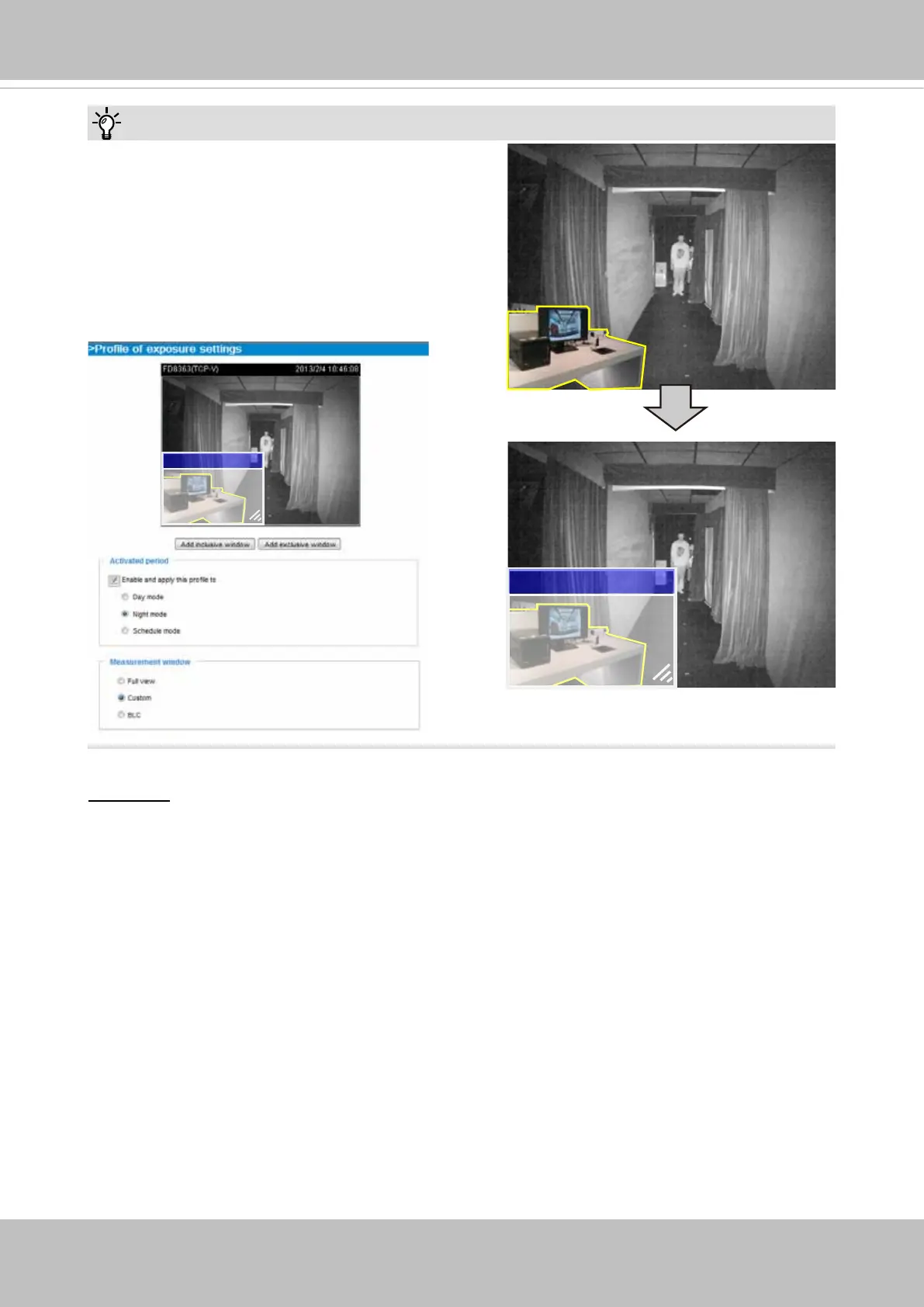

Tips:
If there is an object in close proximity, the IR lights
reflected back from it can mislead the Smart IR’s
calculation of light level. To solve this problem, you
can place an “Exposure Exclude” window on an
unavoidable object in the Exposure setting window.
See page 6159 for how to do it.
You can also configure the “Exposure Exclude”
window in a night mode “Prole” setting so that your
day time setting is not affected.
Exclude x

Vivotek IB9371-HT Specifications

General

Built-in HDD	-
Flash memory	128 MB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Certification	CE, LVD, FCC Class A, VCCI, C-Tick, UL
Placement supported	Outdoor
Connectivity technology	Wired
Video streaming	Adjustable resolution, quality and bitrate Smart Stream II
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video formats supported	H.264, H.265
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	2048 x 1536 (QXGA)
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	48 x
Focal length range	3 - 9 mm
Maximum aperture number	2.3
Audio input	1
Camera shutter speed	1/5 - 1/16000 s
Minimum illumination	0.001 lx
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
LED indicators	Power, Status
Housing material	Metal
Protection features	Vandal proof
International Protection (IP) code	IP66
LED type	IR
Night vision distance	30 m
Audio system	2-way
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	60 dB
Browser supported	Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
Number of users	10 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface	RJ-45
DC output voltage	12
Power source type	PoE
Power consumption (max)	11 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Height	293 mm
Weight	1182 g
Diameter	88 mm
