VIVOTEK
User's Manual - 7

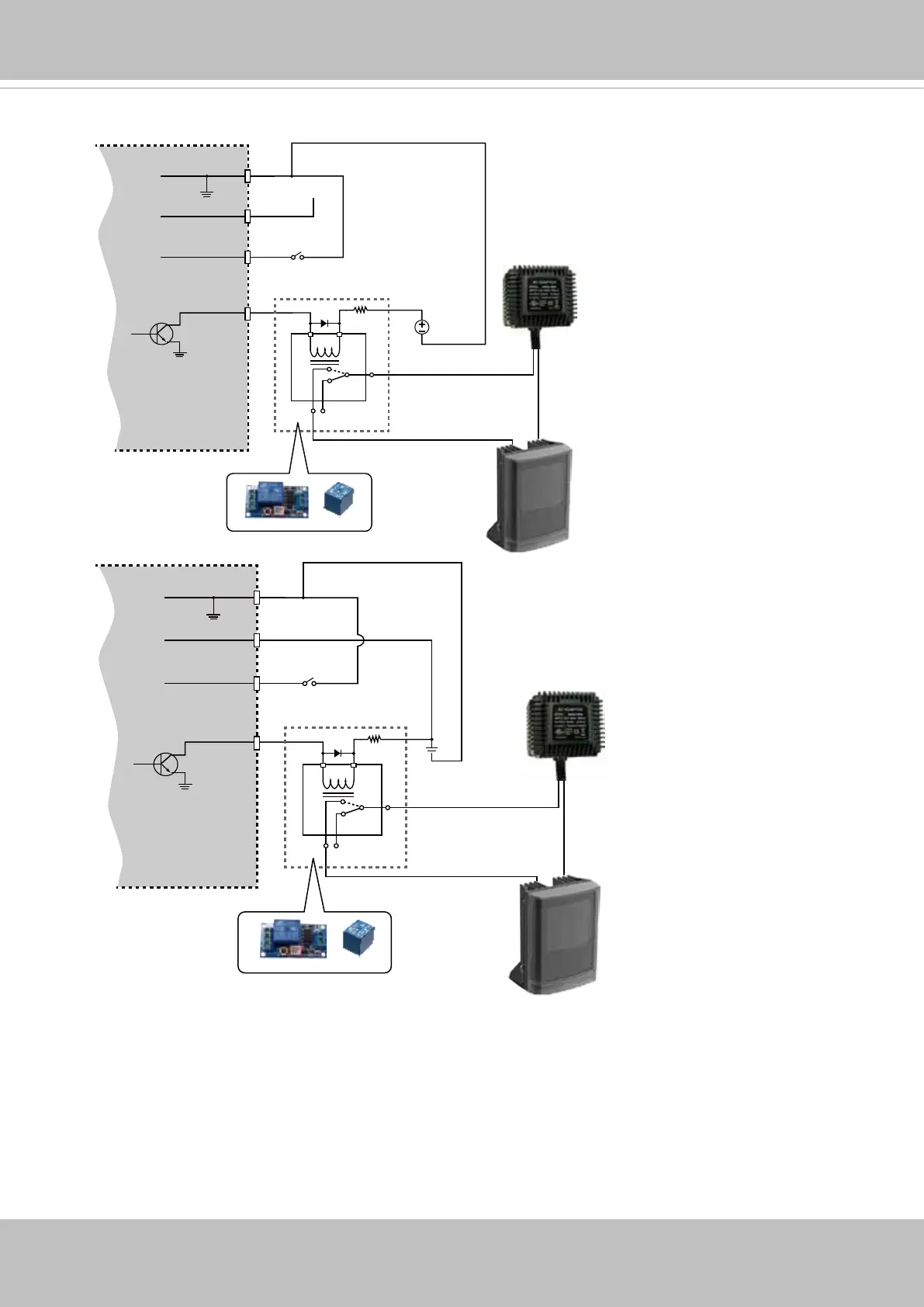

DI/DO Diagram
DI-
DO+
DI+
DO-
External
power source
VDC
Switch
BJT transistor
Relay
AC
Source
NO NC
External
device
DI-
DO+
DI+
DO-
VDC
Switch
BJT transistor
Relay
AC
Source
NO NC
External
device
1. The DO+ pin provides different output voltages depending on the camera model, 12V for
this model, and the max. load is 50mA.
2. The max. voltage for DO- pins is 80VDC (External power).
In order to control AC devices, the above diagram can be taken in consideration. The
diagram uses a relay to control the ON/OFF condition of the AC device.
3. An external relay can be triggered by using DO+ or by an external power source,
depending on the type of relay you use.
4. In case of using an individual relay (instead of using a relay module), for protection
against voltage or current spikes, a transient voltage suppression diode must be
connected in parallel with the inductive load.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vivotek IB9371-HT and is the answer not in the manual?

Vivotek IB9371-HT Specifications

General IconGeneral
Built-in HDD-
Flash memory128 MB
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
CertificationCE, LVD, FCC Class A, VCCI, C-Tick, UL
Placement supportedOutdoor
Connectivity technologyWired
Video streamingAdjustable resolution, quality and bitrate Smart Stream II
Total megapixels3 MP
Maximum resolution2048 x 1536 pixels
Video formats supportedH.264, H.265
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions2048 x 1536 (QXGA)
Sensor typeCMOS
Optical sensor size1/2.8 \
Digital zoom48 x
Focal length range3 - 9 mm
Maximum aperture number2.3
Audio input1
Camera shutter speed1/5 - 1/16000 s
Minimum illumination0.001 lx
Form factorBullet
Mounting typeCeiling/wall
Product colorWhite
LED indicatorsPower, Status
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP66
LED typeIR
Night vision distance30 m
Audio system2-way
Audio formats supportedG.711
Signal-to-Noise Ratio (SNR)60 dB
Browser supportedMozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
Number of users10 user(s)
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.3af, IEEE 802.3at
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
InterfaceRJ-45
DC output voltage12
Power source typePoE
Power consumption (max)11 W
Storage temperature (T-T)-20 - 50 °C
Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 90 %
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight and Dimensions IconWeight and Dimensions
Height293 mm
Weight1182 g
Diameter88 mm
