VIVOTEK
User's Manual - 89
[Register] Successfully Your account information has
been mailed to registered e-mail address

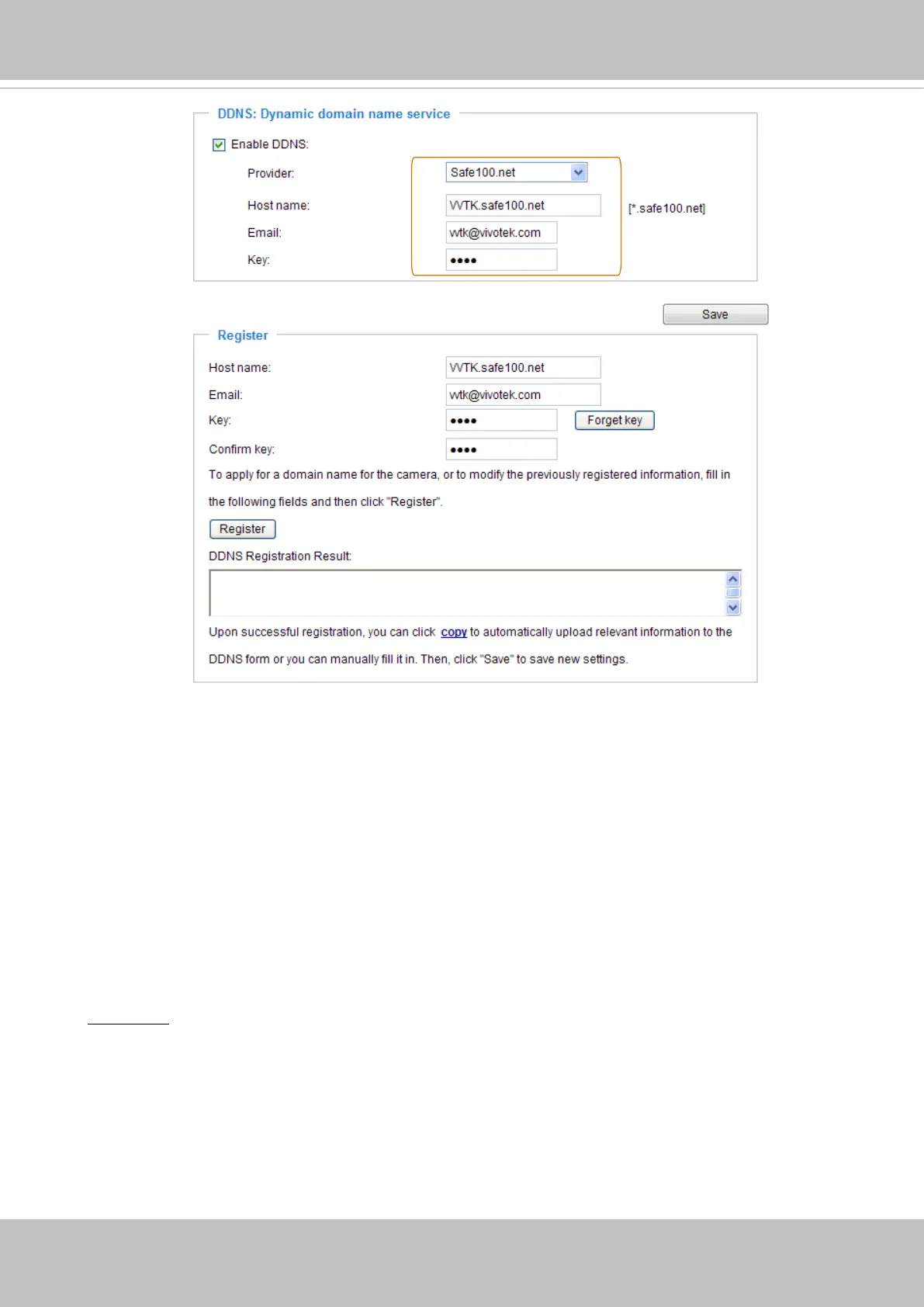

4. Select Enable DDNS and click Save to enable the setting.
■ CustomSafe100
VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and
system integrators. You can use CustomSafe100 to register a dynamic domain name if your
distributor or system integrators offer such services.
1. In the DDNS column, select CustomSafe100 from the drop-down list.
2. In the Register column, ll in the Host name, Email, Key, and Conrm Key; then click Register.
After a host name has been successfully created, you will see a success message in the DDNS
Registration Result column.
3. Click Copy and all for the registered information will be uploaded to the corresponding elds in
the DDNS column.
4. Select Enable DDNS and click Save to enable the setting.
Forget key: Click this button if you have forgotten the key to Safe100.net or CustomSafe100. Your
account information will be sent to your email address.
Refer to the following links to apply for a dynamic domain account when selecting other
DDNS providers:
■ Dyndns.org(Dynamic) / Dyndns.org(Custom): visit http://www.dyndns.com/

Vivotek IB9371-HT Specifications

General

Built-in HDD	-
Flash memory	128 MB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Certification	CE, LVD, FCC Class A, VCCI, C-Tick, UL
Placement supported	Outdoor
Connectivity technology	Wired
Video streaming	Adjustable resolution, quality and bitrate Smart Stream II
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video formats supported	H.264, H.265
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	2048 x 1536 (QXGA)
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	48 x
Focal length range	3 - 9 mm
Maximum aperture number	2.3
Audio input	1
Camera shutter speed	1/5 - 1/16000 s
Minimum illumination	0.001 lx
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
LED indicators	Power, Status
Housing material	Metal
Protection features	Vandal proof
International Protection (IP) code	IP66
LED type	IR
Night vision distance	30 m
Audio system	2-way
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	60 dB
Browser supported	Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
Number of users	10 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface	RJ-45
DC output voltage	12
Power source type	PoE
Power consumption (max)	11 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Height	293 mm
Weight	1182 g
Diameter	88 mm
