Network Deployment

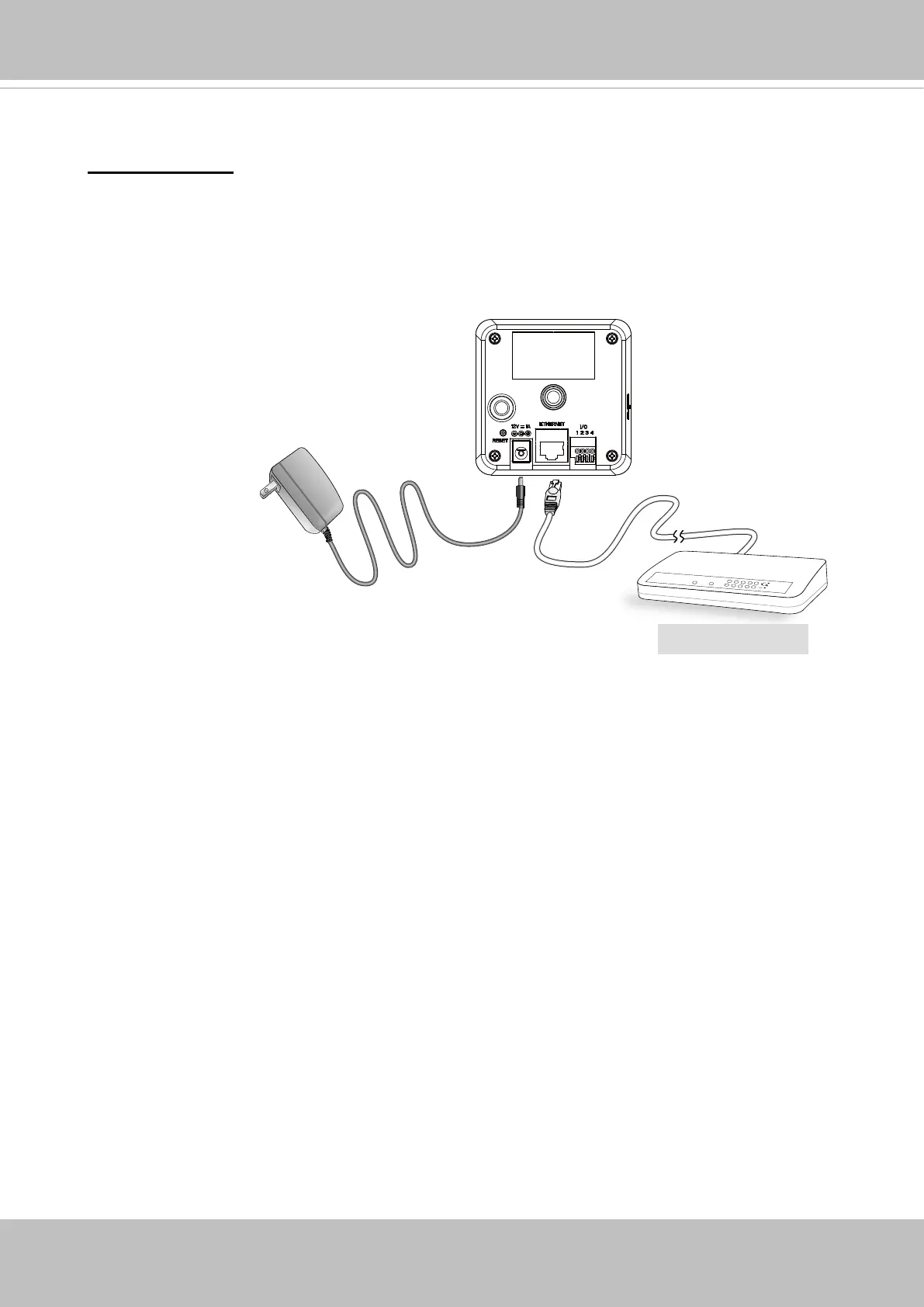

1. If you have external devices such as sensors and alarms, make connections from
general I/O terminal block�
LAN Connection
3� Connect the supplied power cable from
the camera to a power outlet�
2� Connect the camera to a switch via Ethernet cable or directly to a computer� Ethernet
must be connected before power on�
Wireless conguration will be discussed later on page 19.
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Non-PoE Switch
