Vivotek MD7560 Quick Installation Guide

5
English

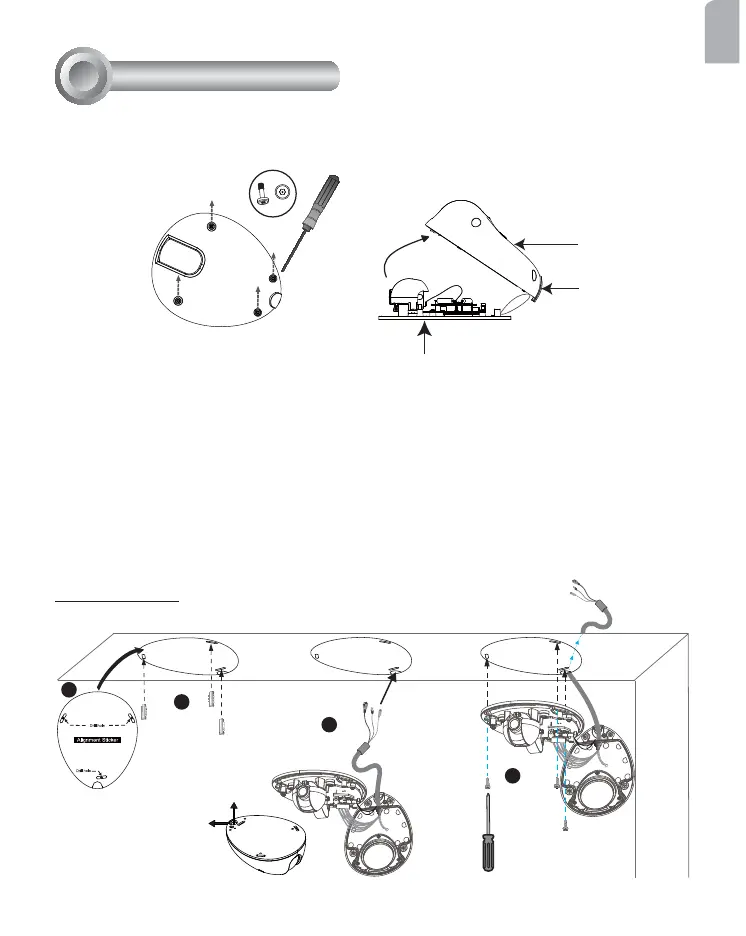

First, use the supplied screwdriver to detach the dome cover from the camera base. Insert your
MicroSD/SDHC Card if necessary.
Then, follow the steps below to install the camera to either the ceiling or the wall:
1. Attach the supplied alignment sticker to the ceiling/wall.
2. Using the 3 screw circles on the sticker, drill 3 pilot holes into the ceiling/wall. Then hammer the
plastic anchors into the holes if necessary.
3. This Network Camera can be mounted with the cable routed through the ceiling/wall or from the
side. If you want to feed the cable through the ceiling/wall, drill a cable hole A as shown in the
picture. If the cable goes through the side of the dome cover, please remove the rubber stopper
(B).
4. Through the 3 holes on the camera base, insert the screws to corresponding holes and secure
the camera base with a screwdriver.
1
2
3
4
A
B
A
Dome Cover
Hardware Installation
3
Tamper-proof Screw
Camera Base
Rubber Stopper
Ceiling Mount

Vivotek MD7560 Specifications

General

Brand	Vivotek
Model	MD7560
Category	Security Camera
Language	English
