VIVOTEK
User's Manual - 9
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to
PPPoE on page 35 for details�

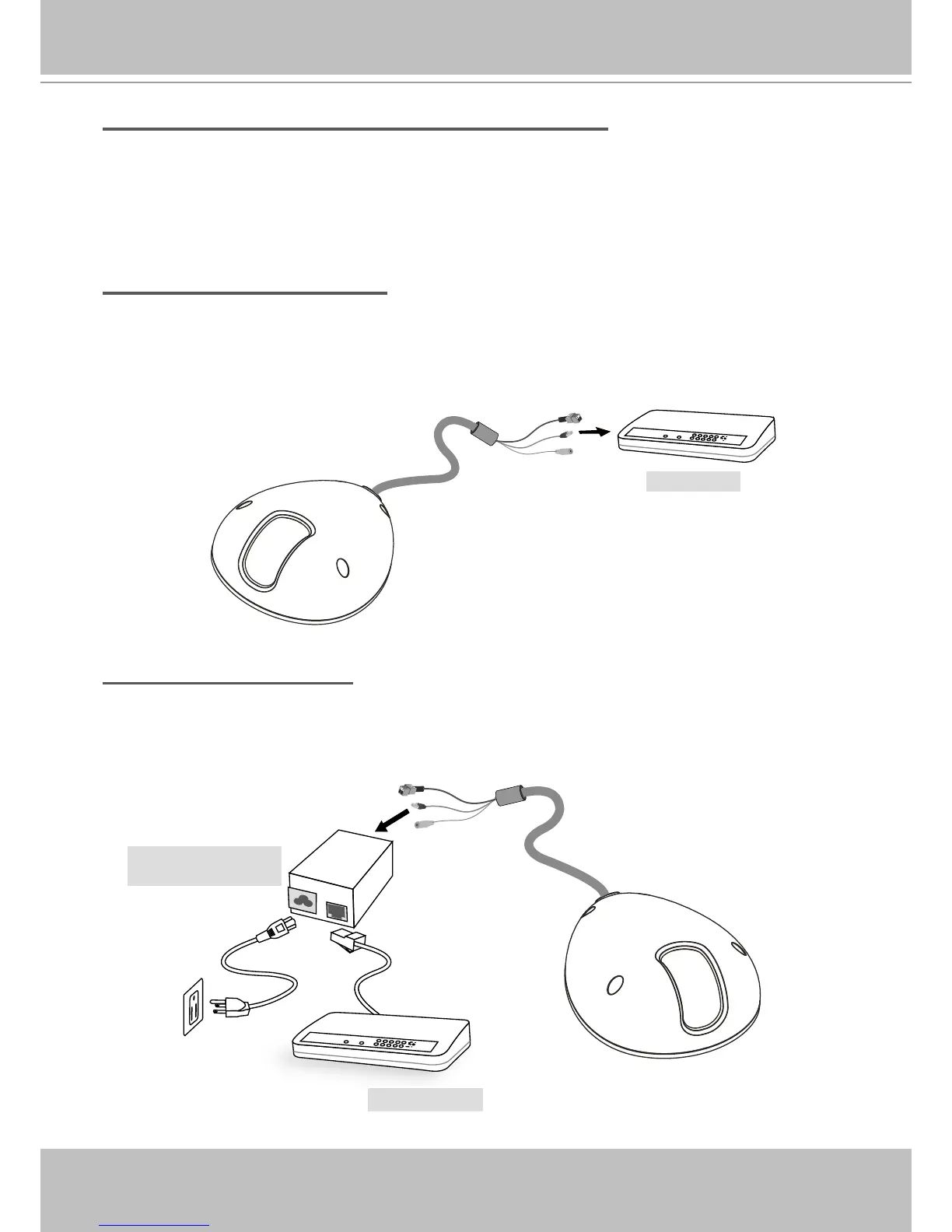

Set up the Network Camera through Power over Ethernet (PoE) (MD7530 / MD7560)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled
switch via Ethernet cable�
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch�
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
PoE Switch
power + data transmission
POWER
COLLISION
LINK
RECEIV E
PARTITION
1
2
3
4
5
Non-PoE Switch
PoE Power Injector
(optional)
To Next Page
