VIVOTEK
8 - User's Manual

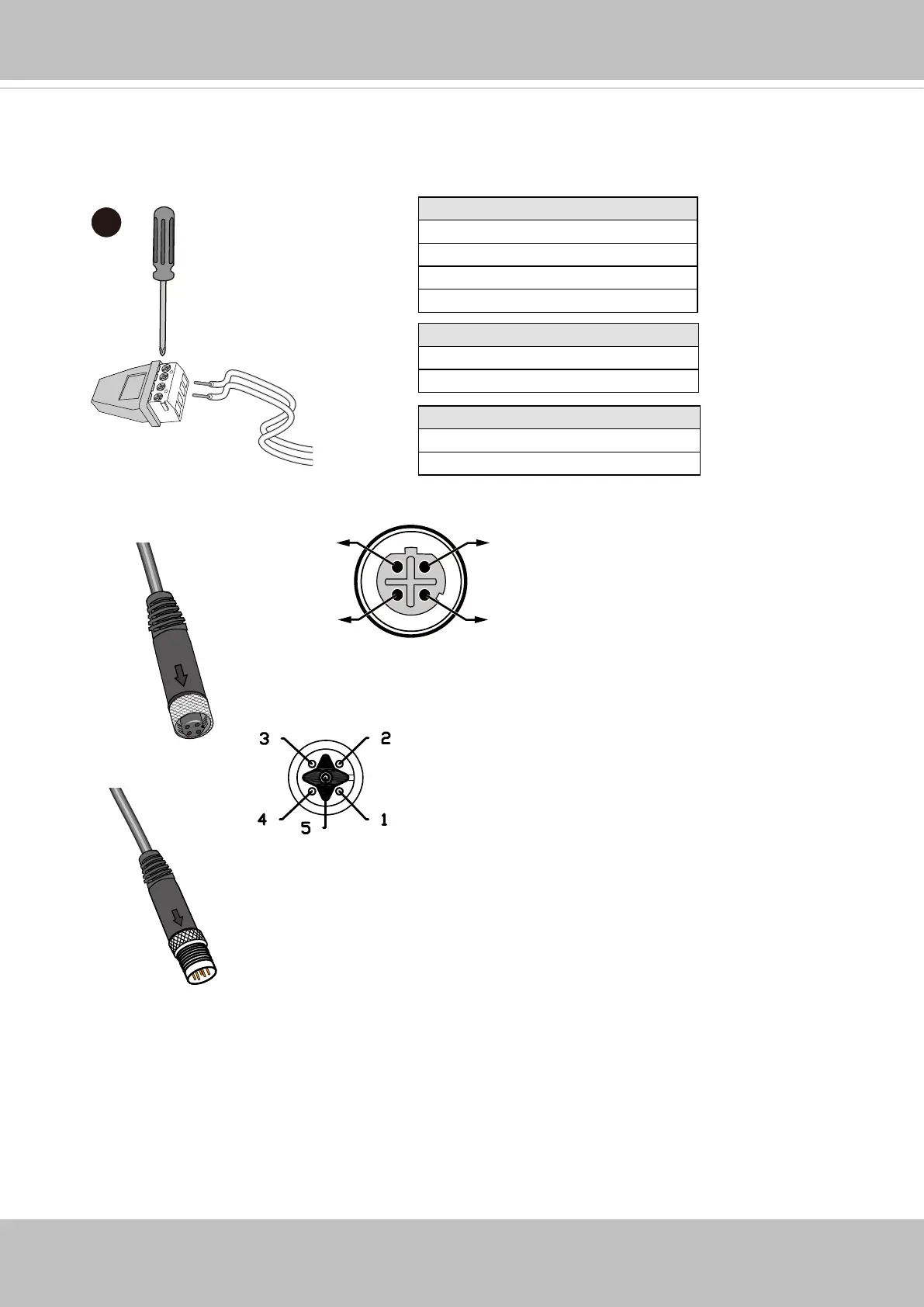

3. If preferred, connect the DI/DO and audio pins to external sensor, microphone, or
speaker devices. The camera can also be powered by a 24V power source via the M12
power connector.
3
Name
DO+ (5V, max. 50mA)
GND
DI+ (any input <30V)
DI- GND
Name
L-OUT
GND
Name
L-IN
GND
1
4
3
2TxData+
TxData-
RxData+
RxData-
M12 Ethernet
1
+24V DC
2
+24V DC
4
GND
5
Not used
3
GND
M12 Power
