EN - 2

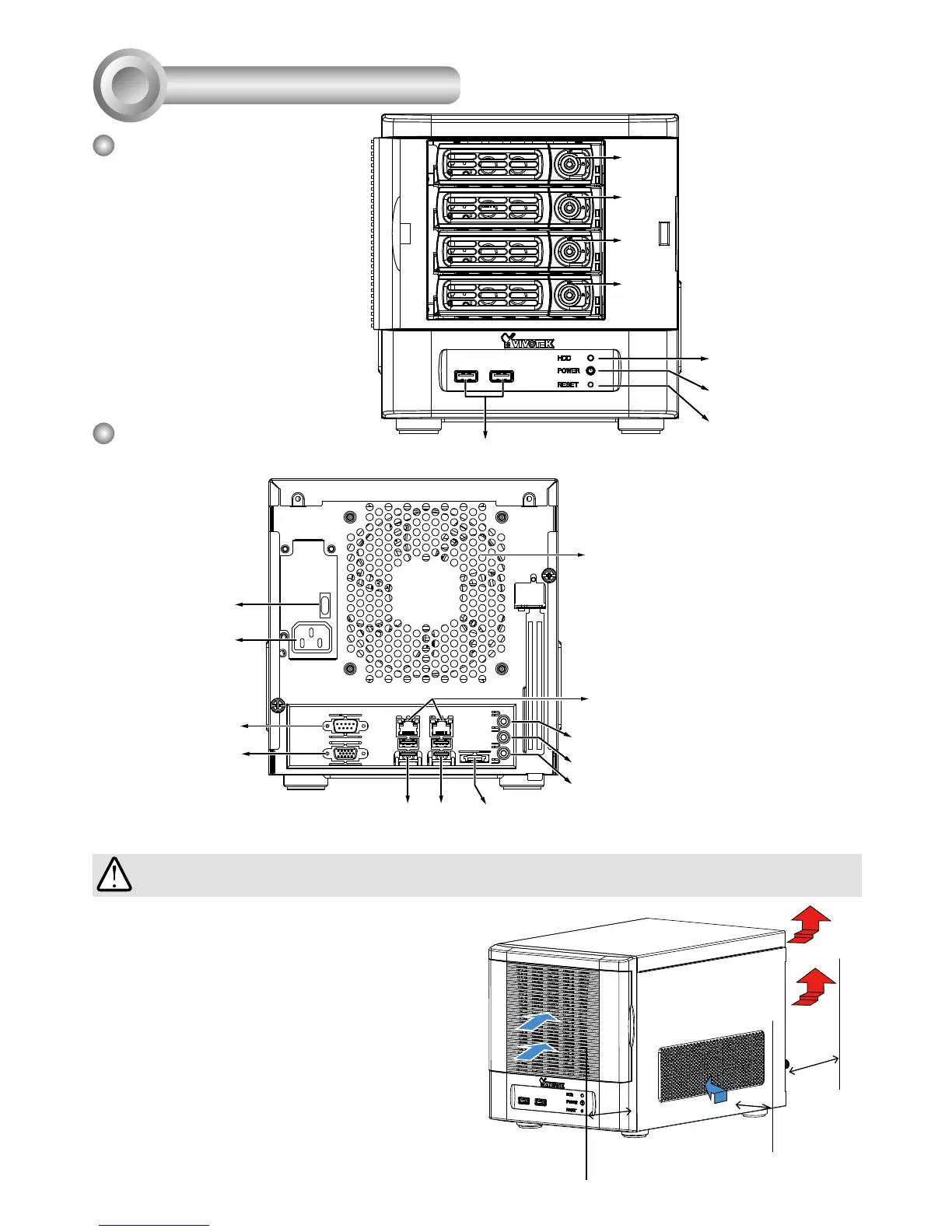

Physical Description
2
Front View
Rear View
0
1
Disk 1
Disk 2
HDD LED
Power
button & LED
Reset button
RS-232
(reserved)
LAN -
WAN
VGA
USB combo
eSATA
MIC In
Line Out
Line In
Power Switch
Fan exhaust
outlet
IMPORTANT:
It is important to leave a clearance of 15cm
to the rear side of the chassis. The clear-
ance is required to ensure an adequate air-
ow through the chassis to ventilate heat.
A 5cm clearance is also required on both
sides of the chassis.
To ensure normal operation, maintain
ambient airow. Do not block the airow
around chassis such as placing the system
in a closed cabinet.
15cm
5cm
5cm
Disk 3
Disk 4
USB ports
Power Socket
