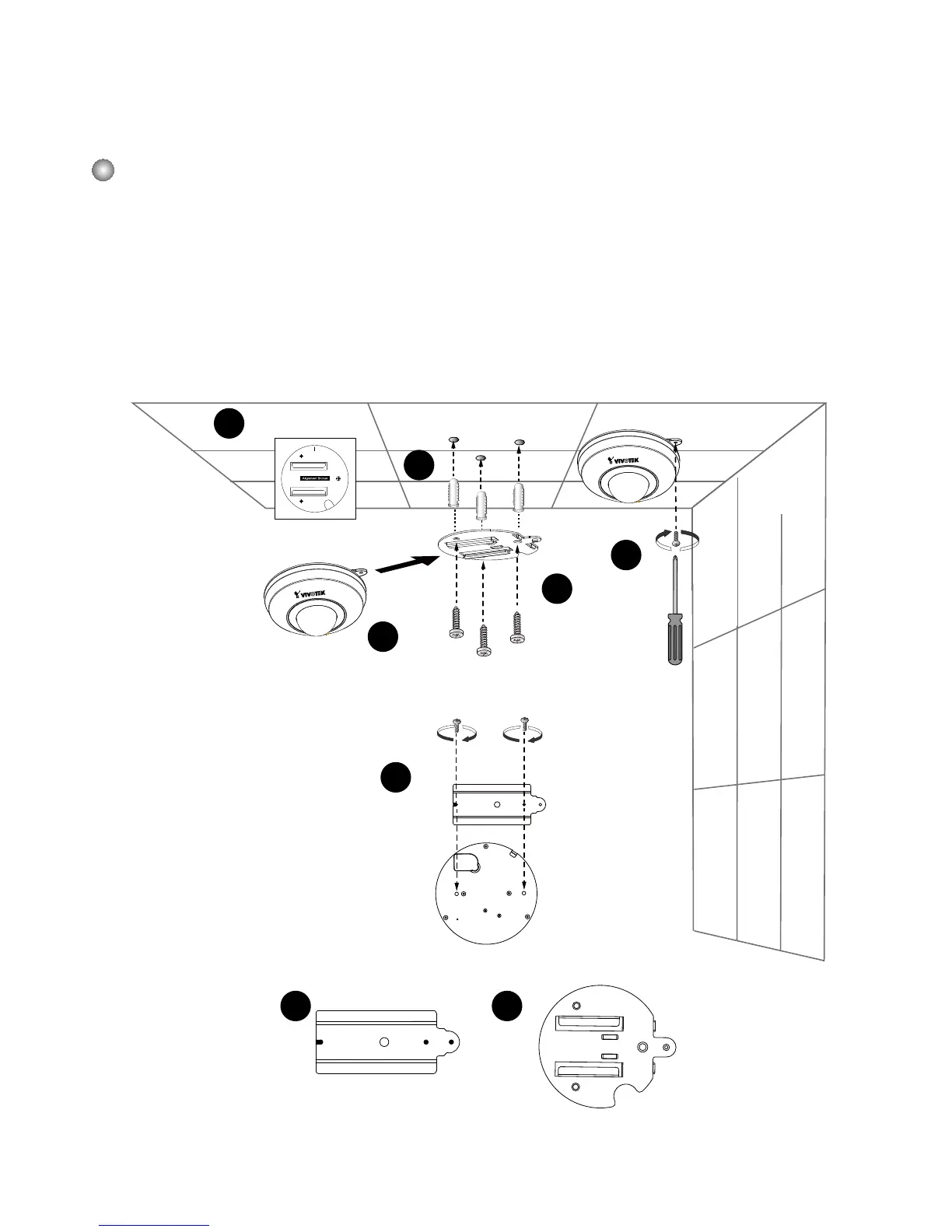

Mounting the Network Camera
1. Attach base plate "A" of the ceiling mount bracket to the bottom of camera and
secure it with two small round head screws. Note that the guiding edge of the base
plate (where a screw hole is available) must protrude from the edge of camera.
2. Use the included alignment sticker, orient the sticker toward the direction you prefer.
3. Drill three holes into the ceiling; hammer the plastic anchors into the holes.
4. Install ceiling mounting plate "B" to the ceiling with three screws.
5. Slide the Network Camera into mounting plate "B."
6. Secure the camera to the mounting plate with a small screw.
