Vivotek SD8311E User Manual

4
AM-231 Parapet Mount - Alignment Sticker
228.15
430
180 18035
178.15
10
AM-231 Corner Mount - Alignment Sticker
430
278.53
180 18035
10
117.27 117.27
Fold Line

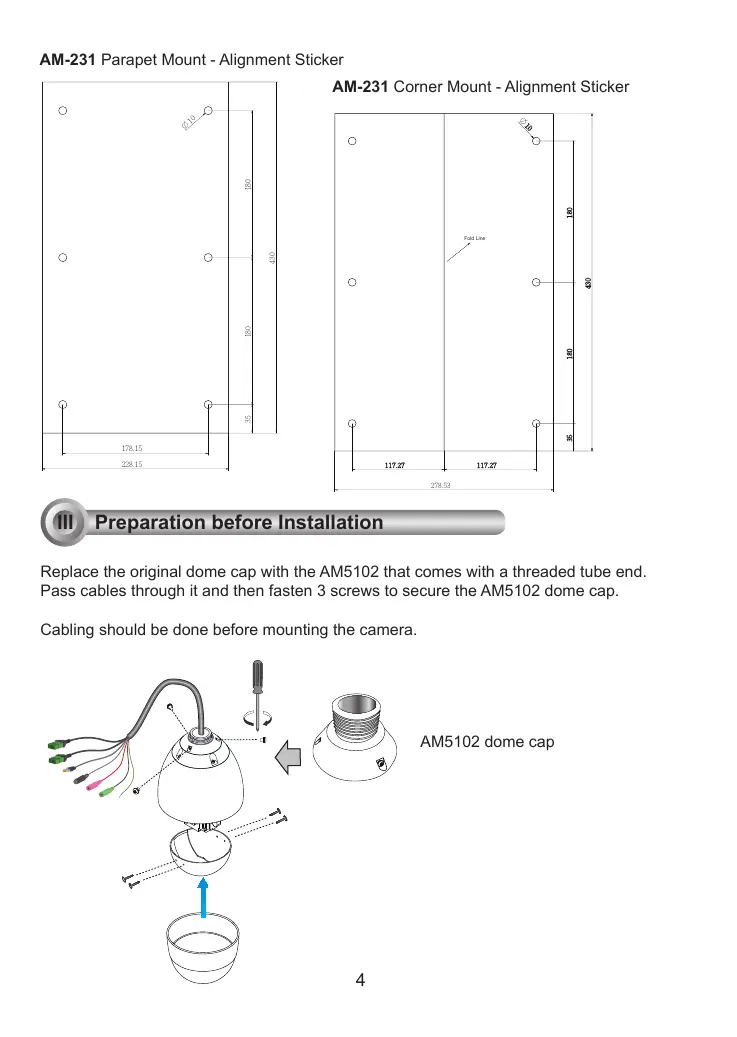

Preparation before Installation
III
Replace the original dome cap with the AM5102 that comes with a threaded tube end.
Pass cables through it and then fasten 3 screws to secure the AM5102 dome cap.
Cabling should be done before mounting the camera.
AM5102 dome cap
