The screws included in the parapet set are:
Sleeve anchors 5/16" x3" 6
Hex bolts M8x25 6
Hex bolts M8x70 3
Hex lock nuts M8 6
Washers M8 15
Lock washers M8 15
982
65
Parapet
Front view
Room for routing cables
The parapet bracket is designed for installation on the inside of a parapet. Note the
following before you start to install:
1. There must be a clearance of 65mm between the upper edge of the parapet wall and
WKHPHWDOEUDFNHW¿[HGWRWKHZDOO<RXFDQÀXVKDOLJQWKHXSSHUHGJHRIWKHDOLJQPHQW
sticker with the edge of a parapet wall.
2. At least two inches of space should be available below the parapet bracket for routing
cables.

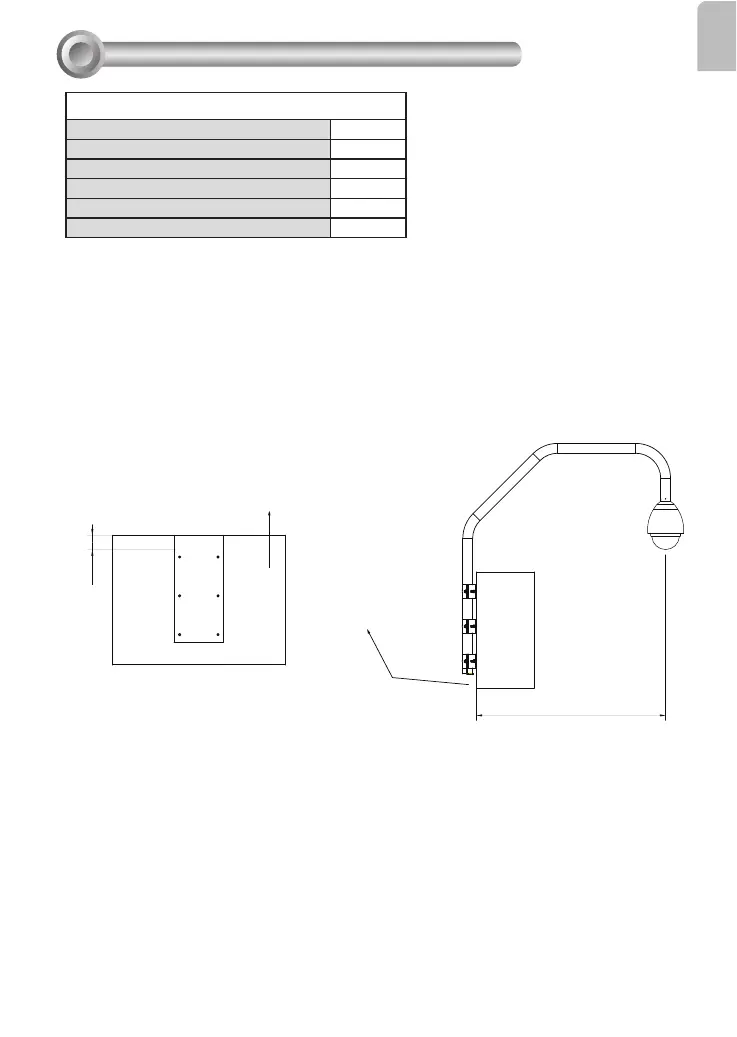

The space requirements for a parapet mount are shown below:
The parapet wall should have a
concrete strength of 4000 PSI or
higher. Each sleeve anchor can
withstand an 800kgs pull-out force.
Parapet Mounting: AM-231
