To mount your TV on a wall, you will need a wall mount. Consult the
information on this page to nd the appropriate mount for your TV.
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have
the correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, at, stable surface. Be sure the
surface is clear of debris that can scratch or damage the TV.
3. Remove the stands by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following the
instructions that came with your mount. Use only with a UL-listed
wall mount bracket rated for the weight/load of this TV.

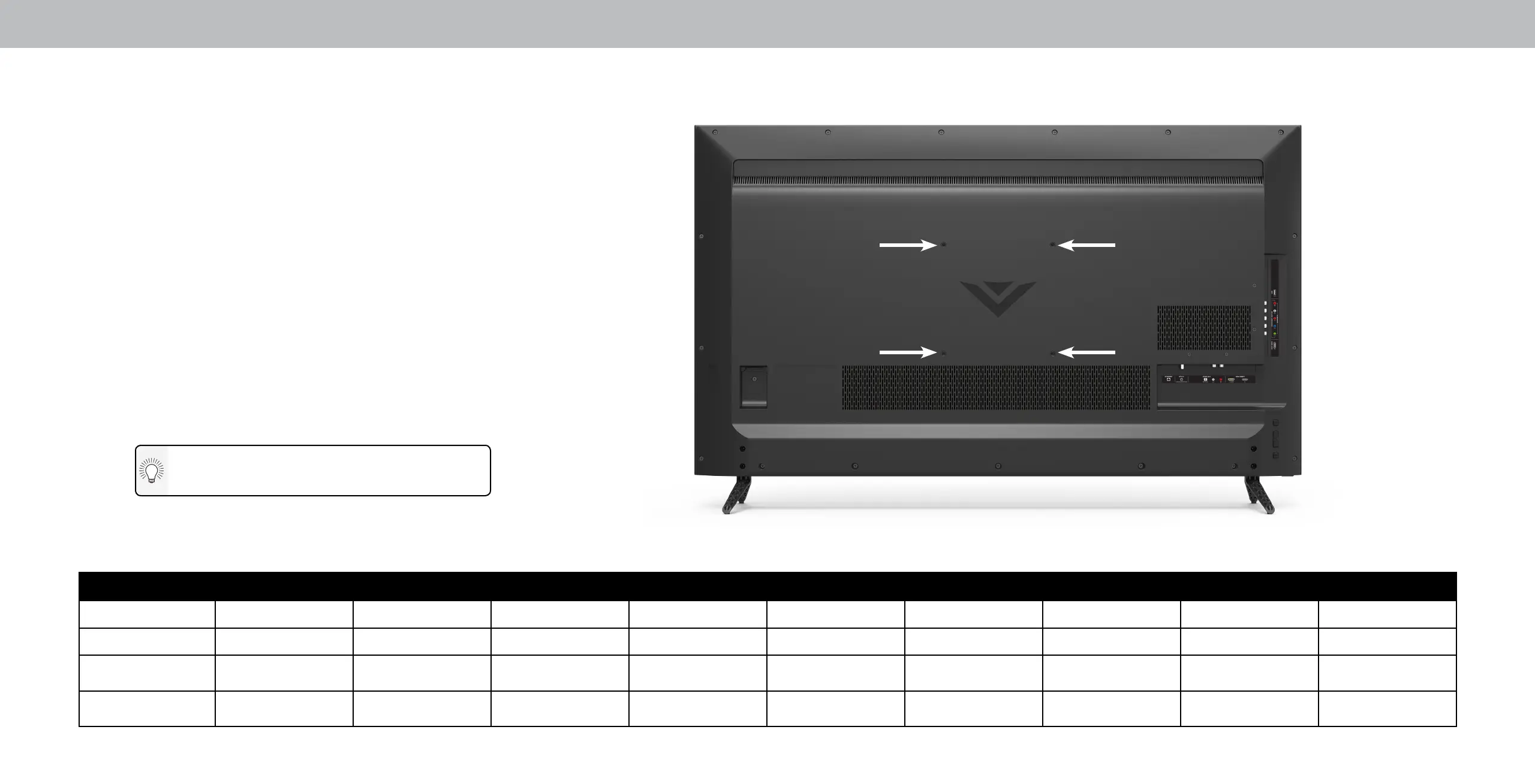

WALL-MOUNTING THE TV
D24f-F1 D32f-F1 D39f-F1 D39f-F0 D40f-F1 D43f-F1 D43f-F2 D48f-F0 D50f-F1
Screw Size:
M4 M4 M6 M4 M6 M4 M6 M6 M6
Hole Depth:
8mm 14mm 14mm 12mm 14mm 14mm 18mm 12mm 14mm
Hole Pattern:
100 mm (V) x 100
mm (H)
100 mm (V) x 100
mm (H)
200 mm (V) x 200
mm (H)
100 mm (V) x 100
mm (H
200 mm (V) x 200
mm (H)
200 mm (V) x 200
mm (H)
200 mm (V) x 200
mm (H)
200 mm (V) x 200
mm (H)
200 mm (V) x 200
mm (H)
Weight w/o Stand:
7.28 lb
(3.30 kg)
11.46 lb
(5.20 kg)
16.42 lb
(7.45 kg)
15.10 lb
(6.85. kg)
17.09 lb
(7.75 kg)
19.84 lb
(9.00 kg)
21.01 lb
(9.53 kg)
25.57 lb
(11.60 kg)
26.66 lb
(12.10 kg)
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
