Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult the information below to nd the appropriate mount for your TV model:
Be sure the mount you choose is capable of supporting the weight of the TV. After you have determined that you have the correct mount for
your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, at, stable surface. Be sure the surface is clear of debris that can scratch or damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the weight/load of this TV.

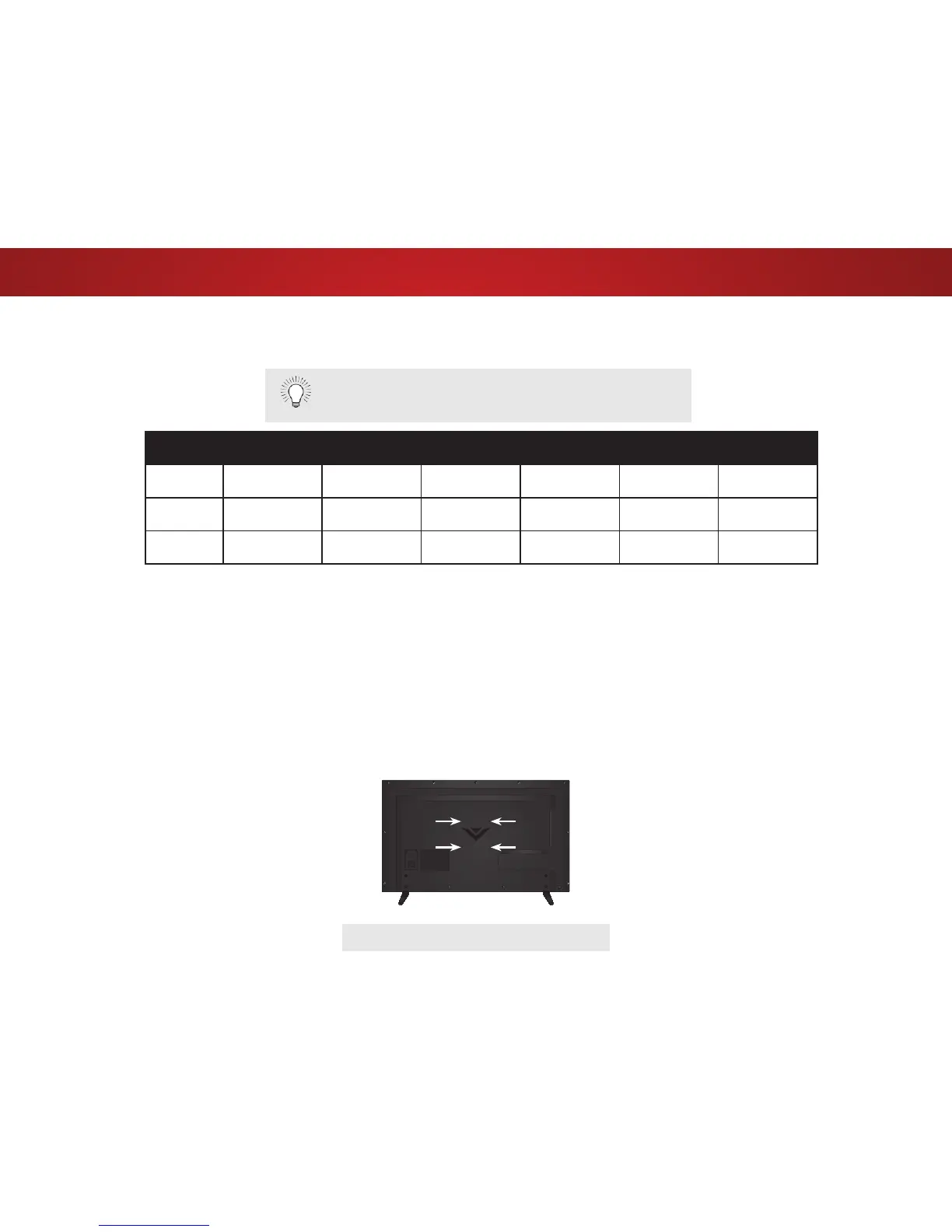

WALL MOUNT SCREW LOCATIONS
E40-C2 E40x-C2 E43-C2 E48-C2 E55-C2 E65x-C2
Screw Size: M6 M6 M6 M6 M6 M6
Hole
Pattern:
200 mm (V) x
200 mm (H)
200 mm (V) x
200 mm (H)
200 mm (V) x
200 mm (H)
200 mm (V) x
200 mm (H)
200 mm (V) x
200 mm (H)
400 mm (V) x
400 mm (H)
Weight w/o
Stand:
15.87 lbs 15.43 lbs 17.64 lbs 23.15 lbs 30.42 lbs 49.60 lbs
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
