WALLMOUNTING THE TV
First you will need a wall mount. Consult the provided table below to find the
appropriate mount for your TV.
Be sure the mount you choose is capable of supporting the weight of the TV.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface. Be sure the surface is
clear of debris that can scratch or damage the TV.
3. If attached, remove the stands by loosening and removing the screws.
4. Attach your TV and wall mount to the wall by carefully following the instructions
that came with your mount. Use only with a UL-listed wall mount bracket rated
for the weight/load of your TV.
TIP: Installing a TV on a wall requires lifting. To prevent injury or
damage to the TV, ask someone to help you.
WARNING: Do not use the screws that are included inside the wall
mount holes to mount TV.

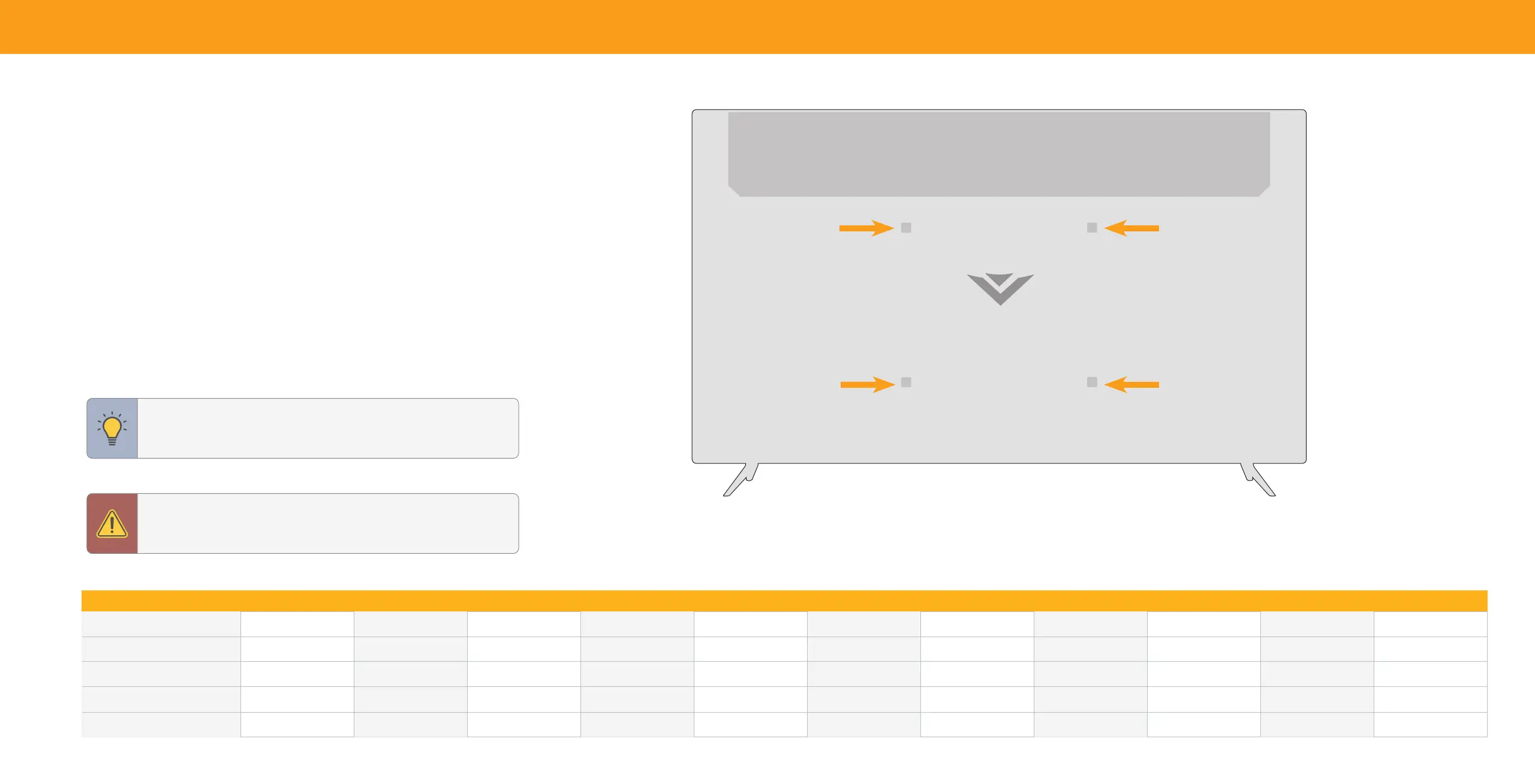

Note: The image shown here is for illustrative purposes only and may be subject to change. The actual number
of ports and their locations may vary, depending on the model.
V435-J01 V505-J01 V505-J09 V555-J01 V585-J01 V655-J04 V655-J09 V705-J01 V705-J03 V705x J03 V755-J04
Screw Size
M6 M6 M6 M6 M6 M6 M6 M8 M6 M6 M8
# of Screws (not included)
4 4 4 4 4 4 4 4 4 4 4
Hole Depth
14 mm 14 mm 10.2 mm 14 mm 14 mm 10 mm 9 mm 12 mm 12 mm 12 mm 12 mm
Hole Pattern
200 x 200 mm 200 x 200 mm 200 x 200 mm 300 x 200 mm 300 x 200 mm 400 x 200 mm 400 x 200 mm 400 x 200 mm 400 x 200 mm 400 x 200 mm 400 x 400 mm
Weight w/o Stand
15.65 lb (7.1 kg) 21.38 lb (9.7 kg) 18.87 lb (8.56 kg) 30.14 lb (13.67 kg) 31.53 lb (14.3 kg) 42.6 lb (19.32 kg) 39.24 lb (17.8 kg) 49.30 lb (22.36 kg) 52.70 lb (23.9 kg) 52.7 lb (23.9 kg) 59.97 lb (27.2 kg)
-
To Next Page
