FAN MOUNTING
QDF-30
DC-
DC+
Remove jumper to activate Safe Stop
Max. 24 Volt !
12
13
18
19 27 29 32
33
20
61
68
39
42
50
53 54
06 05 04
03 02 01
130BB493.10

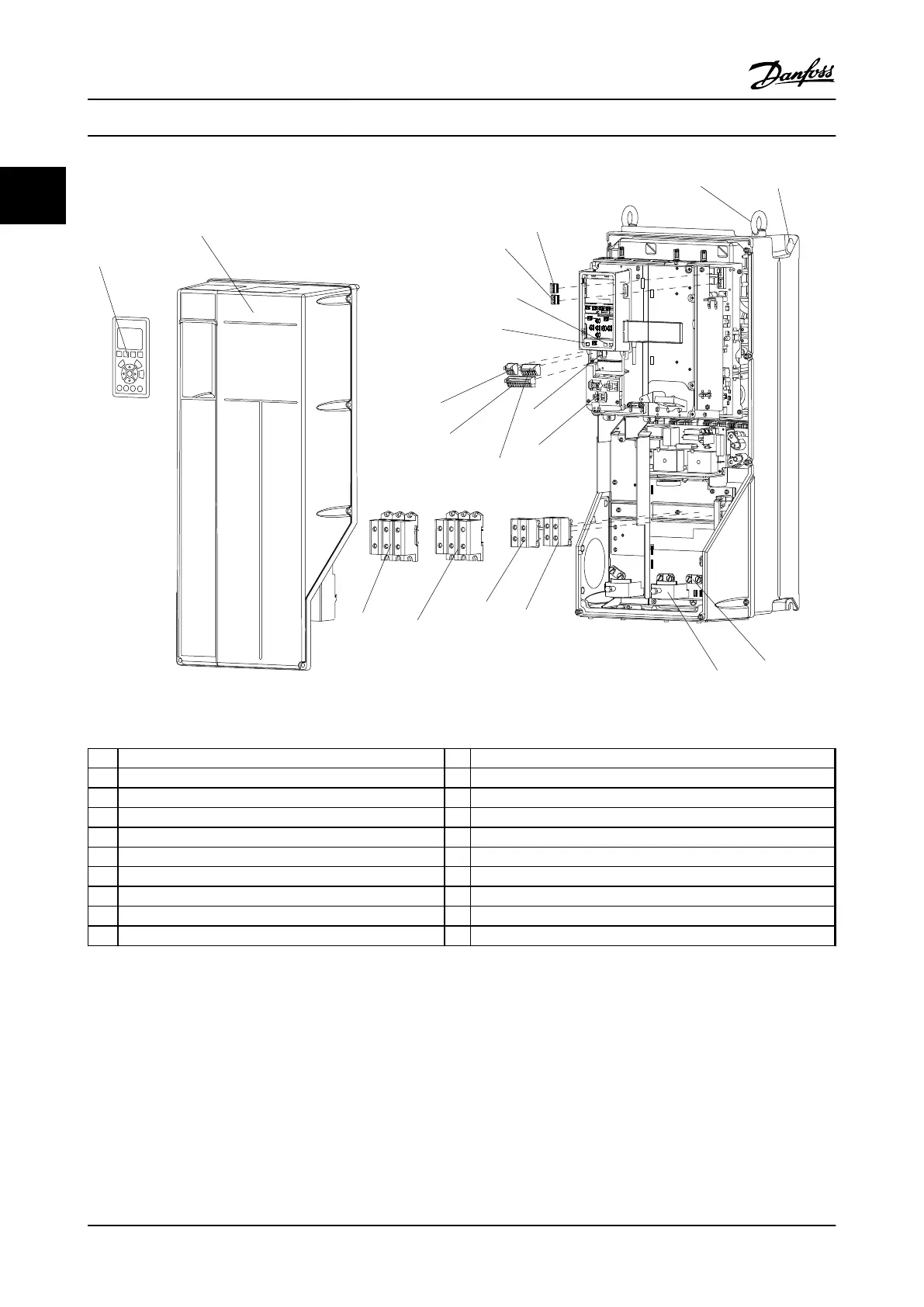

Figure 1.2 Exploded View B and C Sizes, IP55/66
1
LCP 11 Relay 2 (04, 05, 06)
2 Cover 12 Lifting ring
3 RS-485 serial bus connector 13 Mounting slot
4 Digital I/O and 24 V power supply 14 Grounding clamp (PE)
5 Analog I/O connector 15 Cable strain relief/PE ground
6 Cable strain relief/PE ground 16 Brake terminal (-81, +82)
7 USB connector 17 Load sharing terminal (DC bus) (-88, +89)
8 Serial bus terminal switch 18 Motor output terminals 96 (U), 97 (V), 98 (W)
9 Analog switches (A53), (A54) 19 Line power input terminals 91 (L1), 92 (L2), 93 (L3)
10 Relay 1 (01, 02, 03)
Table 1.2 Legend to Figure 1.2
1.1
Purpose of the Manual
This manual is intended to provide detailed information for
the installation and startup of the adjustable frequency
drive. provides requirements for mechanical and electrical
installation, including input, motor, control and serial
communications wiring and control terminal functions.
provides detailed procedures for startup, basic operational
programming, and functional testing. The remaining
chapters provide supplementary details. These details
include user interface, detailed programming, application
examples, startup troubleshooting, and specifications.
Introduction
VLT
®
AutomationDrive Instruction
Manual
