SPEAKER WIRING

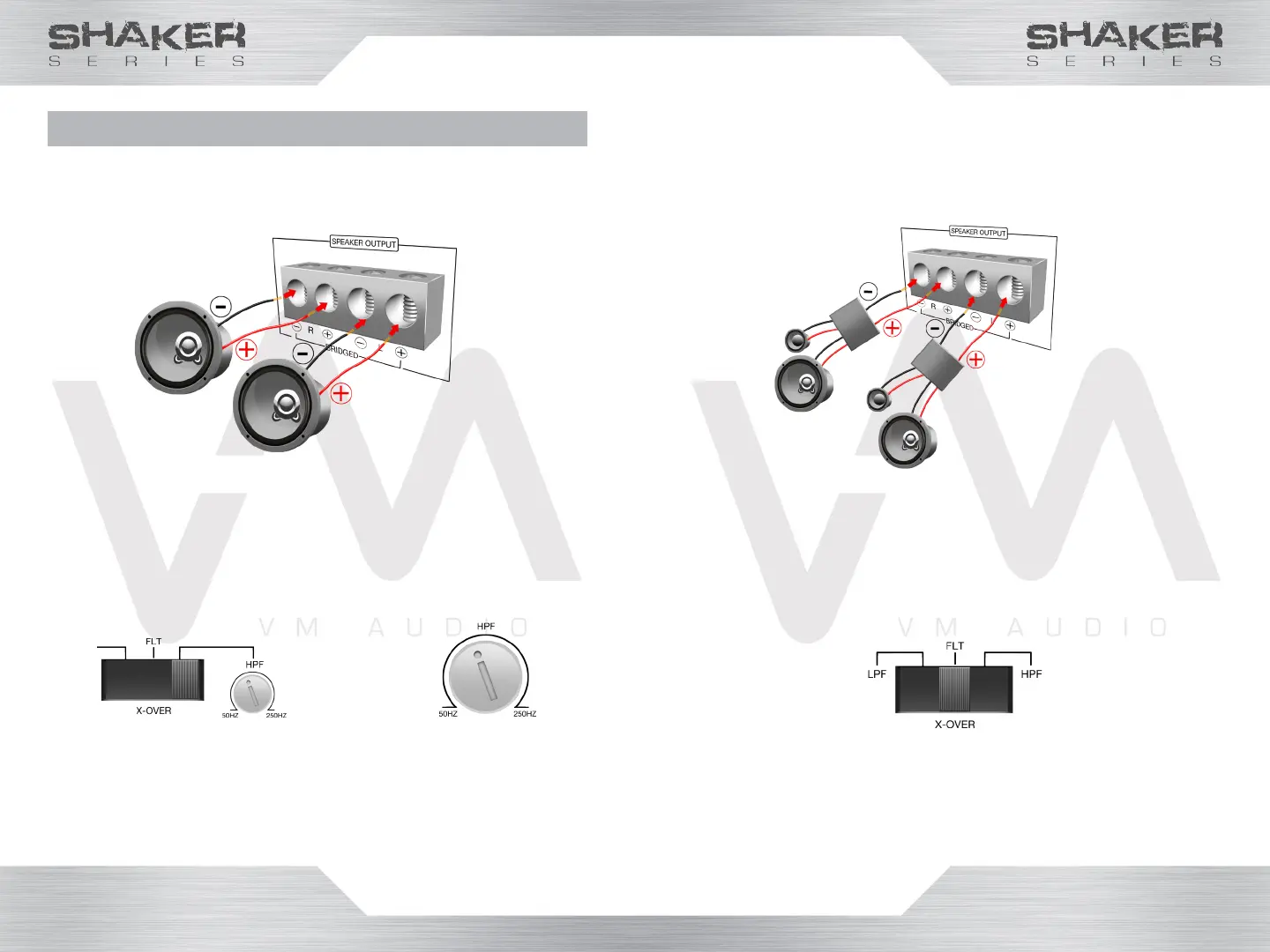

Full Range Speaker Wiring
Observing polarity, connect one speaker to the right
channel and the other speaker to the left channel.
80 Hz
Amplier Crossover Settings
HPF
Component Speaker Wiring
Observing polarity, Connect one speaker to the right
channel and the other speaker to the left channel.
Amplier Crossover Settings
FLT
2Ω - 4Ω
SPEAKER
IMPEDANCE
2Ω - 4Ω
SPEAKER
IMPEDANCE
