Vogt VT40 User Manual

2-2 Vogt
®
VT Service Manual
Installation Instructions

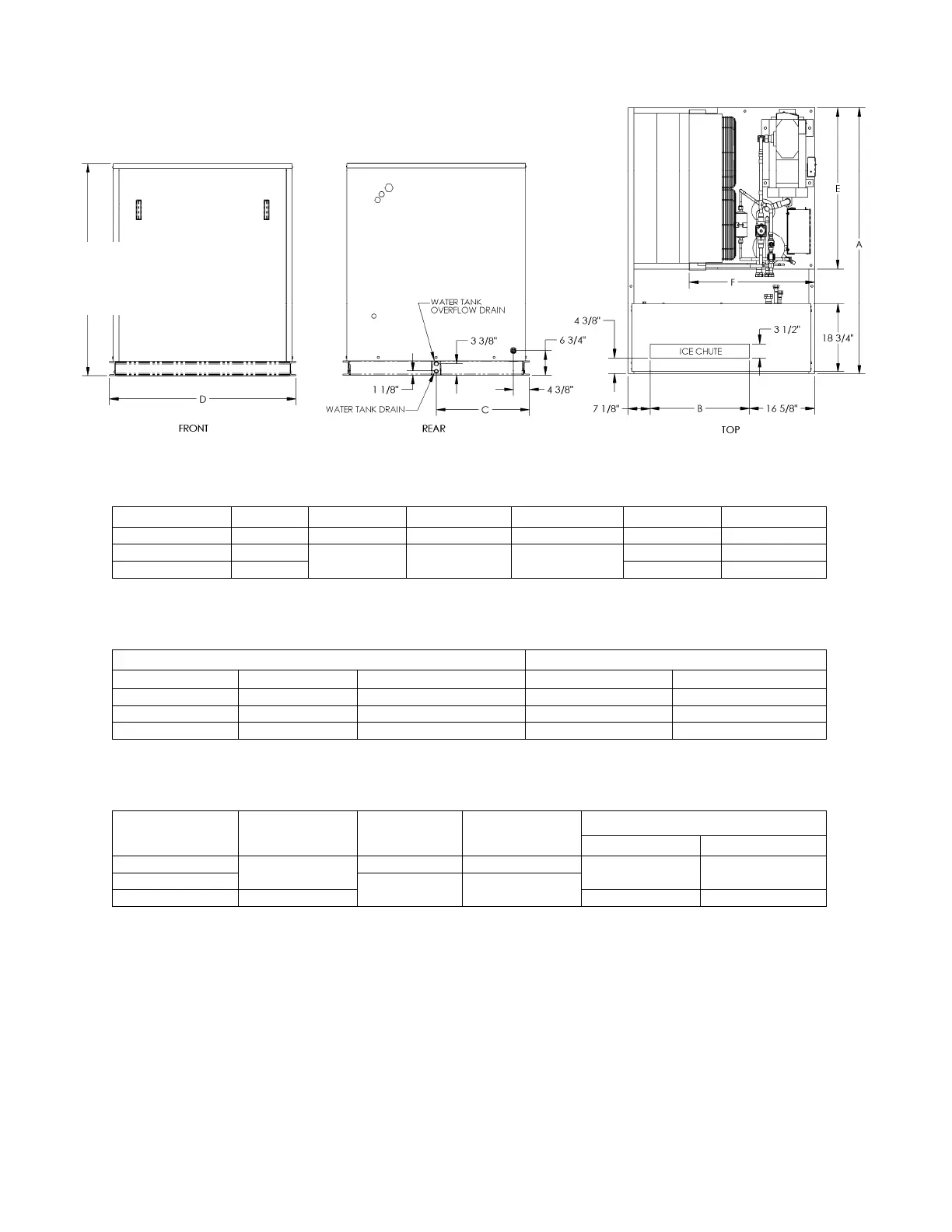

FIGURE 2-1
Ice Machine Dimensions
Unit
"A"
"B"
"C"
"D"
"E"
"F"
VT40 72 5/8" 27" 24 3/8" 50 3/4" 44" 34"
VT60 89" 39 1/2" 30 1/2" 63 1/4" 57.5 68"
VT100 44 7/8" N/A N/A
TABLE 2-1
Ice Machine Dimensions
Remote Weights
Skid Mounted Weights
Model
Lowside
Condensing Unit
Model
Skid Mounted
VT40 520 lbs. 975 lbs. VT-40 1,525 lbs.
VT60 650 lbs. 1330 lbs. VT-60 2290 lbs.
VT100 1,850 lbs. 400 lbs. (condenser) VT-100 ----------
TABLE 2-2
Weight Of Machines
Suction
Hot Gas
Liquid
Remote Condenser
Model
Line
Line
Line
Discharge
Liquid Return
VT40 1 3/8 OD 7/8 OD 5/8 OD N/A N/A
VT60 1 1/8 OD 7/8 OD
VT100 1 5/8 OD 1 3/8 OD OD 7/8 OD
Note: Split systems will be supplied with Rota-lock adapters to connect the highside to the lowside
TABLE 2-3
Refrigerant Line Sizes
Machine Clearances: A minimum three (3) feet of clearance is recommended around entire ice
machine. This will provide sufficient area for service and air flow.
Evaporator Installation: Mount evaporator section (lowside) on storage area capable of sustaining its
weight and secure by thru bolting.
Note: Ambient at the lowside should remain between 50º F –105º F. Makeup wa ter temperature should
not drop below 40º F. Machine may experience problems if operated outside of these ranges.
58" - VT40, VT60
71" - VT100
& VT80
