2-12 Vogt
®
VT Service Manual
Installation Instructions
Teflon Seal
12A2600T01 (for 1 1/4”-12 thread fitting)
12A2600T03 (for 1 3/4”-12 thread fitting)

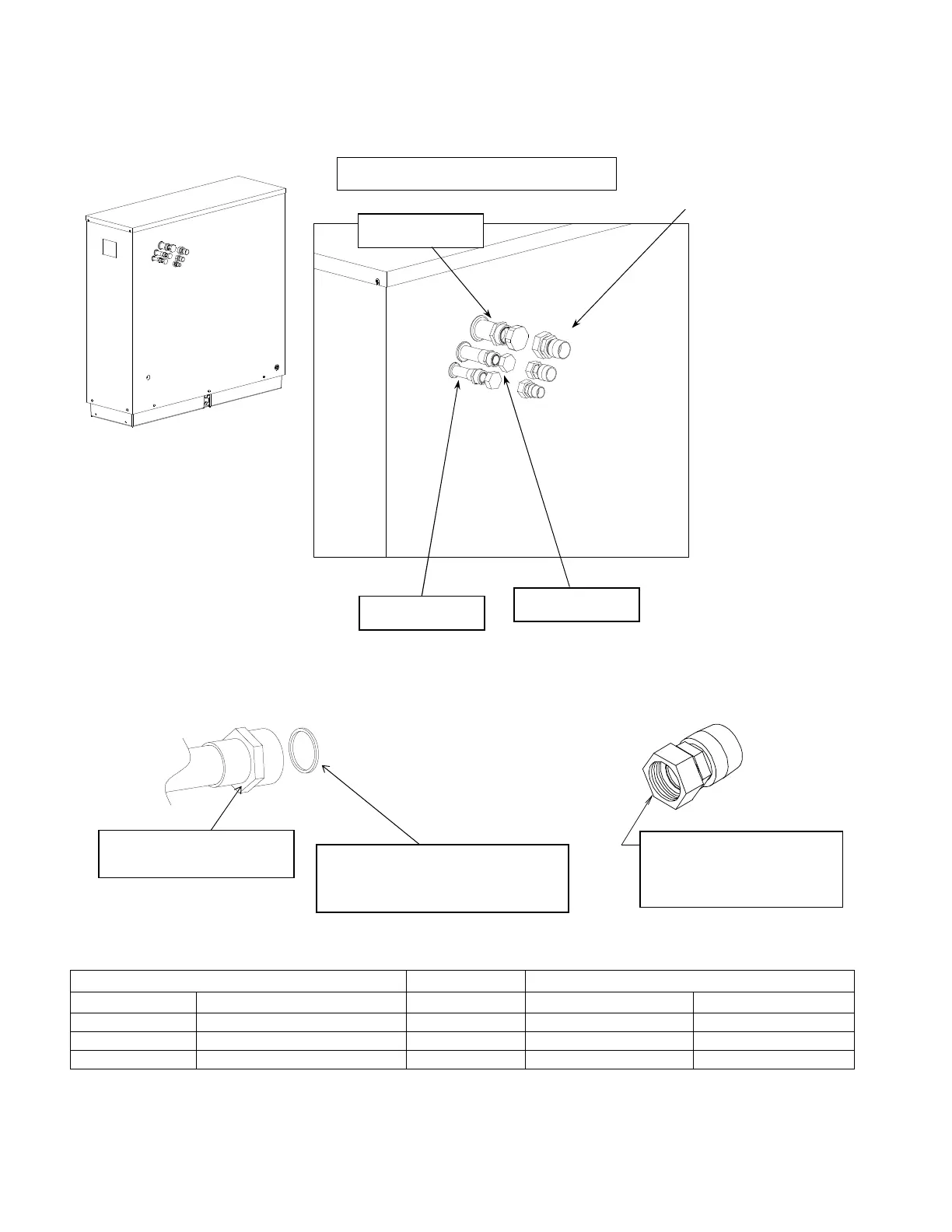

FIGURE 2-12
VT Lowside Connections
Rota
-
lock Adapter
Teflon Seal
Where U
sed
Part # Description Part # VT40 VT60
12A2396A0501 1 1/8” IDS X 1 1/4”-12Thrd 12A2600T01 N/A Hot Gas Line
12A2396A0601 1 3/8” IDS X 1 3/4”-12Thrd 12A2600T03 Suction Line Suction Line
12A2396A0701 7/8” IDS X 1 1/4”-12Thrd 12A2600T01 Liquid & Hot Gas line Liquid Line
TABLE 2-5
Rota-lock Adapters
Note: See Refrigerant Line Size TABLE 2-3 for line sizes
Rota-lock Adapter
1 3/8” IDS X 1 3/4”-12 Threads
1 1/8” IDS X 1 1/4”-12 Threads
7/8” IDS X 1 1/4”-12 Threads
Note: Rota-lock fittings
supplied for both lowside
and highside
Must solder with 45% silver
Liquid Line
Suction Line
Hot Gas Line
Rota-lock Fitting
(on lowside & condensing unit)
