Void Infinite 8 V2 User Manual

Infinite V2
Page 5
Reference Manual
1 4
3
2

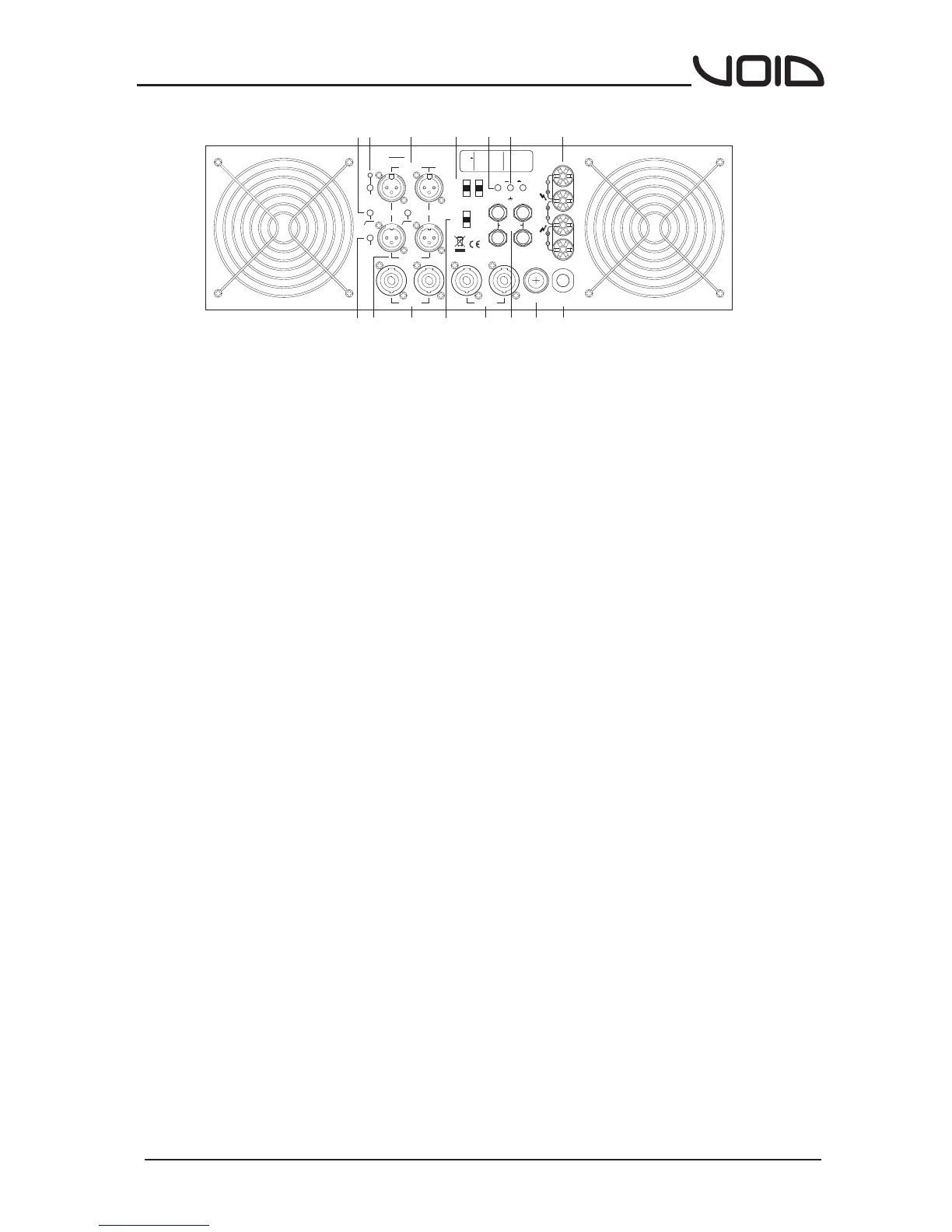

Rear Panel
1.Input XLR's
The input impedance of the balanced XLR's is 20Kohms. Pin 2 is signal +
2.Output XLR's
Linked outputs from the inputs.
3.Bridge Mode Switch
Selects Bridge Mode. A red LED will illuminate when the amplifier is operating
in bridge mode. Use input 1 in bridge mode. See page 8 for more details.
4.25Hz Hi Pass Filter Switches
Turns each channels 25Hz 18 dB/oct butterworth Hi Pass filter on or off.
For maximum protection leave both filters on (pressed in position).
5.Parallel Mode Switch
Links input 1 with input 2. See page 8 for more details.
6.Limiter Switches
Turns each channels limiter on or off. For maximum protection leave in the
on position (pressed in).
7.Filter Select Switches
Independent channel selection of Hi Pass, Lo Pass or bypassed filters.
8.Crossover Frequency Switch
Selects the crossover frequency point between the Lo and Hi Pass filters.
9.Crossover outputs
Jack outputs for both Hi and Lo pass filters. See page 8 for more details.
10.CH1 Speakon Outputs
In stereo/parallel mode use +1 and -1. In bridge mode use +1 and +2.
CH2 output is on pins +2 and -2.
11.CH2 Speakon Outputs
In stereo/parallel mode use 1+ and 1-. Pins +2 and -2 are not used.
12.Ground Switch
Ground is connected when pressed in and lifted when pressed out.
13.Output Binding Posts
Accepts both 4 mm plugs or bare wire. Use CH1 + and CH 2 + for bridge out.
14.Fuse
Replaceable 35 Amp fuse for amplifier protection.
15.Power Cable
AC power in 230 VAC 50Hz. Fitted with 16 Amp CEE Form connector.
(For 2 ohm operation a 32 Amp CEE Form connector must be fitted)
25Hz 25Hz
Filter Type
Lo Pass
Bypass
Hi Pass
CH 2 CH 1
Limiter Limiter
Out 1 : Pin 1+ : ch 1 +
Pin 1 - : ch 1 -
Pin 2+ : ch 2 +
Pin 2 - : ch 2 -
Out 2 : Pin 1+ : ch 1 +
Pin 1 - : ch 1 -
Bridge Mode : out 1
Pin 1+ : sig +
Pin 2+ : sig -
Inputs
Pin 1 :
Pin 2 : +
Pin 3 : -
CH 2 CH 1
Inputs
CH 2 GND CH 1
Link Outs
Fuse
XOVER
FREQ
90 Hz
120 Hz
160 Hz
XOVER
OUTPUTS
LO LO
HI HI
OUT 1
OUT 2
Bridge
OUT 2 OUT 1
Parallel
Inputs
Bridge
Mode
230V AC
50Hz
Serial No
Bridge Input
On Off
5
6
7
8
91011
12 13
14 15
