Infinite X
Page 6
Reference Manual

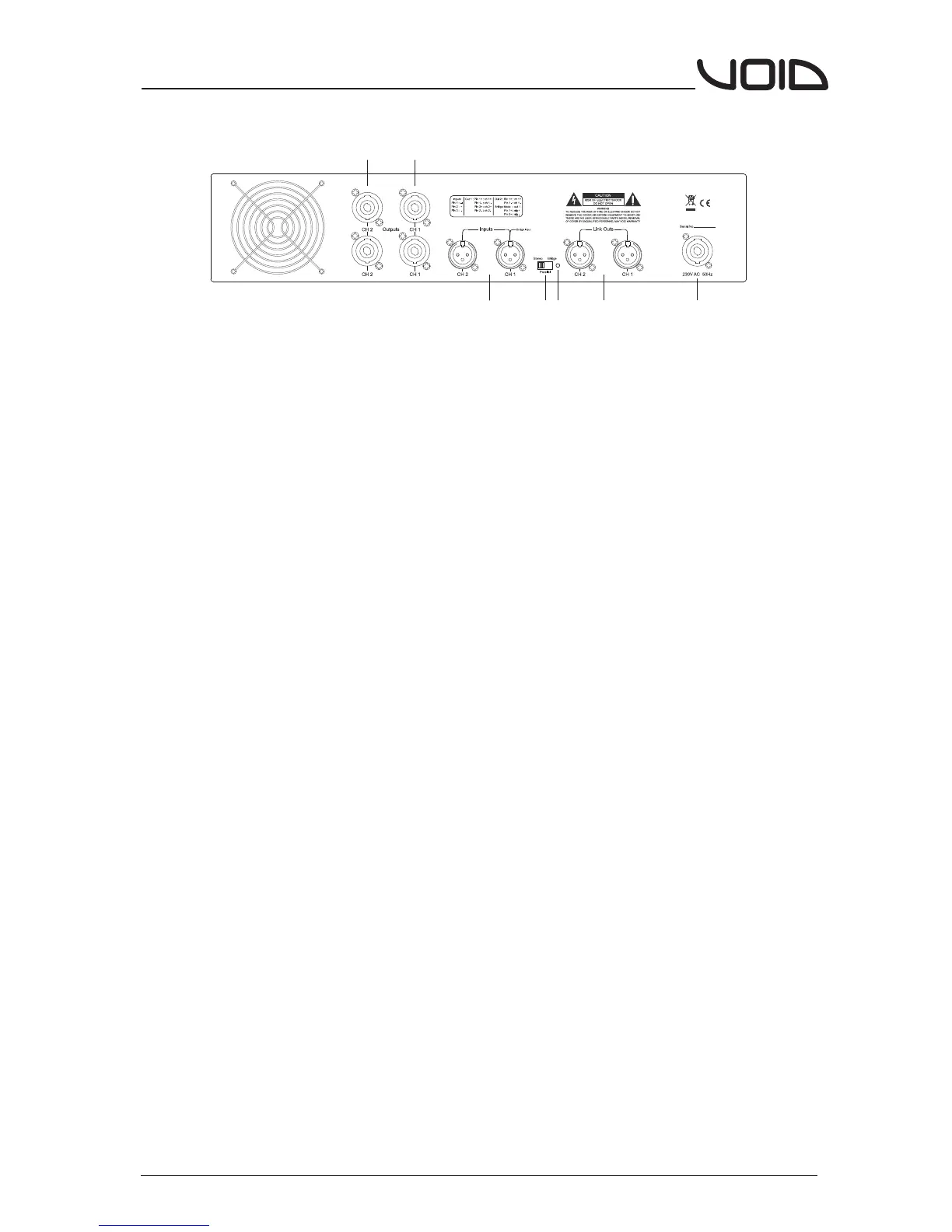

Rear Panel
1.Input XLR's
The input impedance of the balanced XLR's is 20Kohms. Pin 2 is signal +
2.Output XLR's
Linked outputs from the inputs.
3.Mode Switch
Switches between stereo, parallel or bridge modes. See page 8 for more details.
4.Bridge Mode Light
A blue LED will illuminate when the amplifier is operating in bridge mode.
Use input 1 in bridge mode. See page 8 for more details.
5.CH1 Speakon Outputs
In stereo/parallel mode use +1 and -1. In bridge mode use +1 and +2.
CH2 output is on pins +2 and -2.
6.CH2 Speakon Outputs
In stereo/parallel mode use 1+ and 1-. Pins +2 and -2 are not used.
7.Power Input
16 Amp Powercon socket. 230 VAC 50Hz.
2
1
3 4
56
7
