30

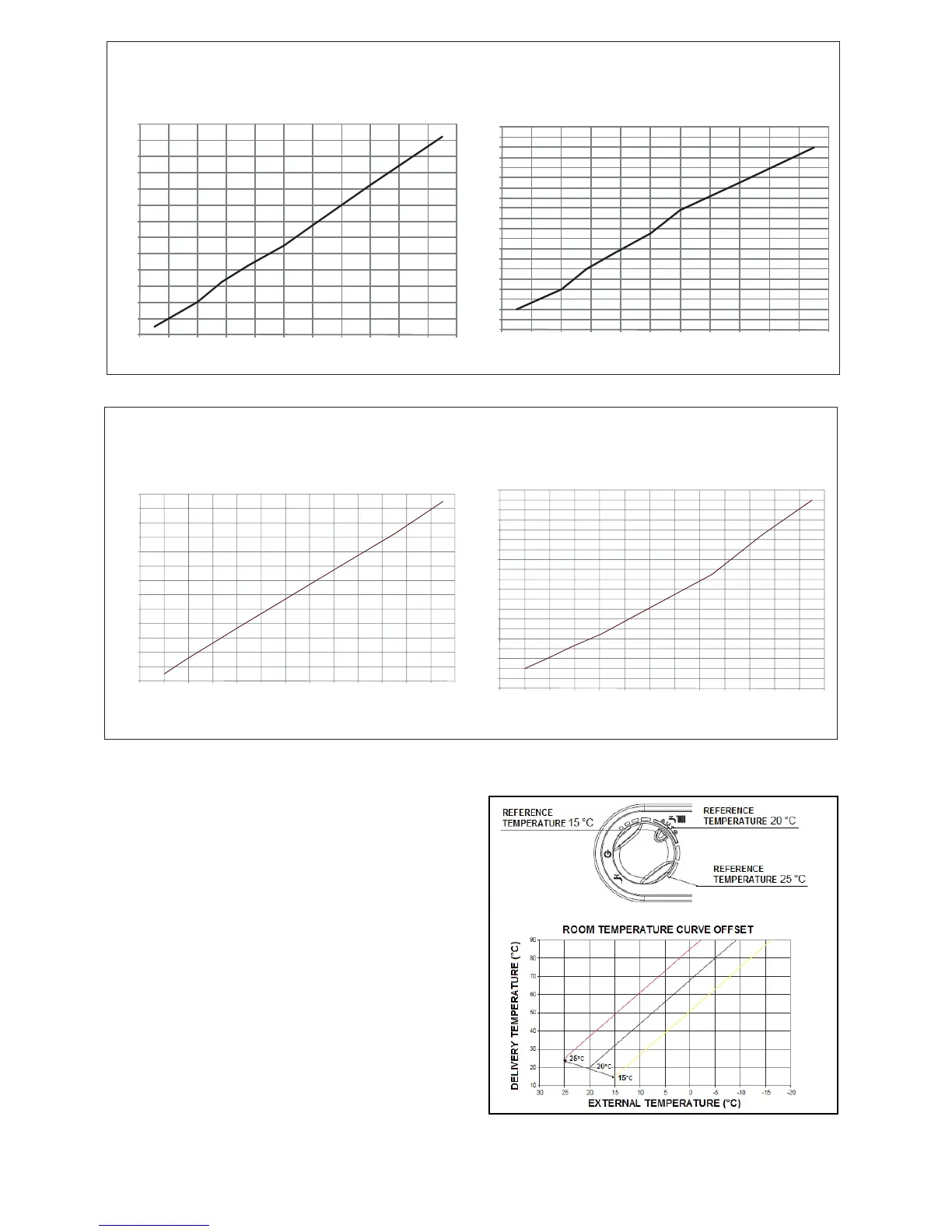

The boiler is supplied with the adjustments shown in the table. Depending on plant engineering requirements or regional ue gas emission limits it is, however,
possible to modify this value, referring to the graphs below.
COs.a. curve (Qnheating)
Heat output (kW)
HTG curve (Qnheating)
Heat output (kW)
Fan rotations (rpm)
CO emissions s.a. (p.p.m.)
Vision 30C
7.10.1 CHECKING THE FAN SPEED
Locate the CO button (see Fig 43).
Select the main selector switch to the ON position, press the
CO button once, the display will then scroll through the fan
speeds along with the relevant icon.
7.10.2 THERMOREGULATION
To set the temperature regulation curve, locate potentiometer
(P3). By turning (P3), the curve is shown on the LCD display.
The user can adjust the temperature of the heating system
indirectly by changing the required room temperature from
between 15°C & 25°C, this will allow the PCB to recalculate
the system temperature required, the default temperature for
calculating the curve is 20°C.
The graph below can be used to determine the correct curve
setting.
The boiler is supplied with the adjustments shown in the table. Depending on plant engineering requirements or regional ue gas emission limits it is, however,
possible to modify this value, referring to the graphs below.
