Volare Marcopolo - Page 108

108

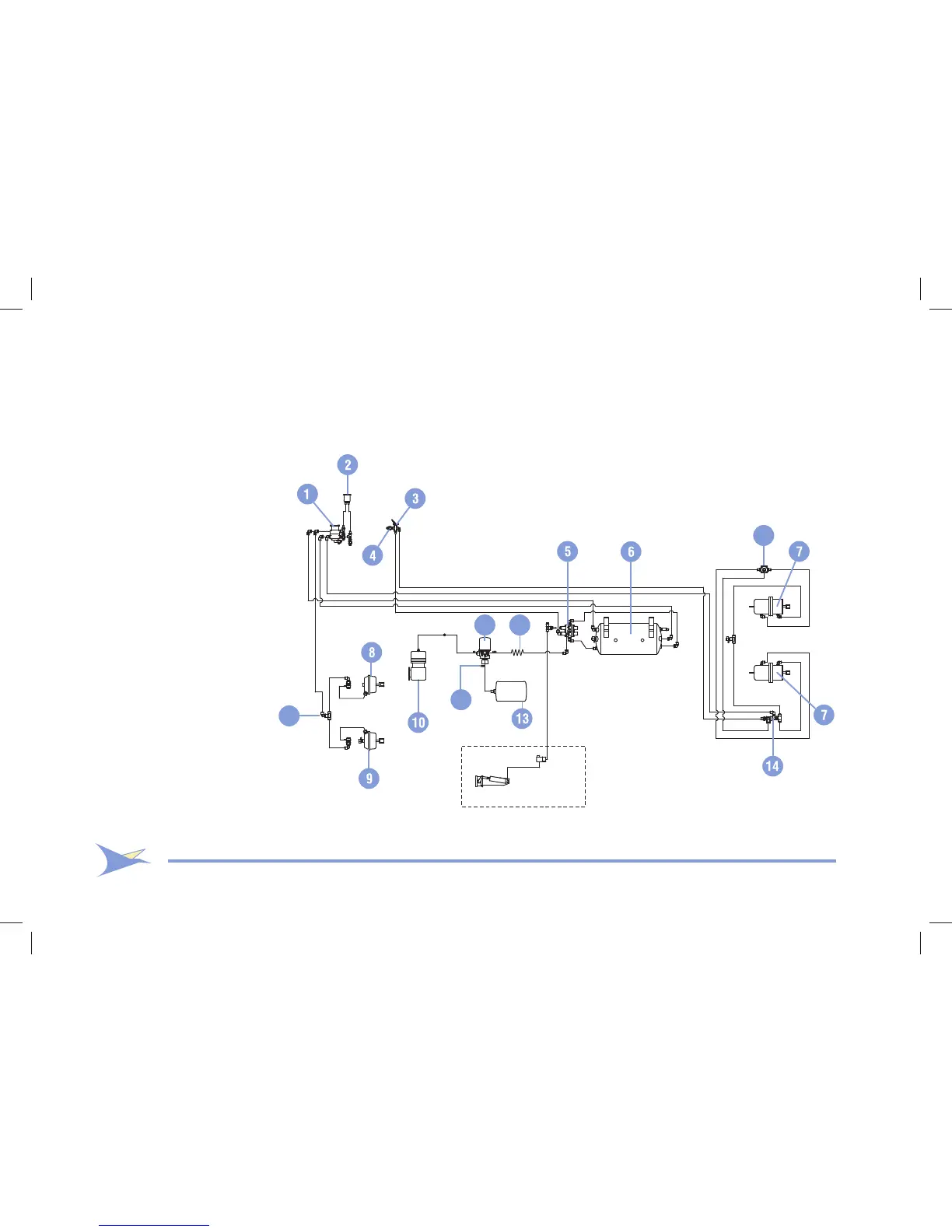

Brake Diagram
1- Pedal valve
2- Dual manometer
3- Parking brake valve
4- Interrupter
5- 4-way valve
6- Dry air reservoir
7- Rear chamber - Spring brake
8- Front chamber
9- Front chamber
10- Air compressor
11- Pressure regulator
12- Drain valve
13- Humid air reservoir
14- 2-way valve
15- Rapid discharge valve
16- Serpentine
Engine Brake
15
15
12
11 16
