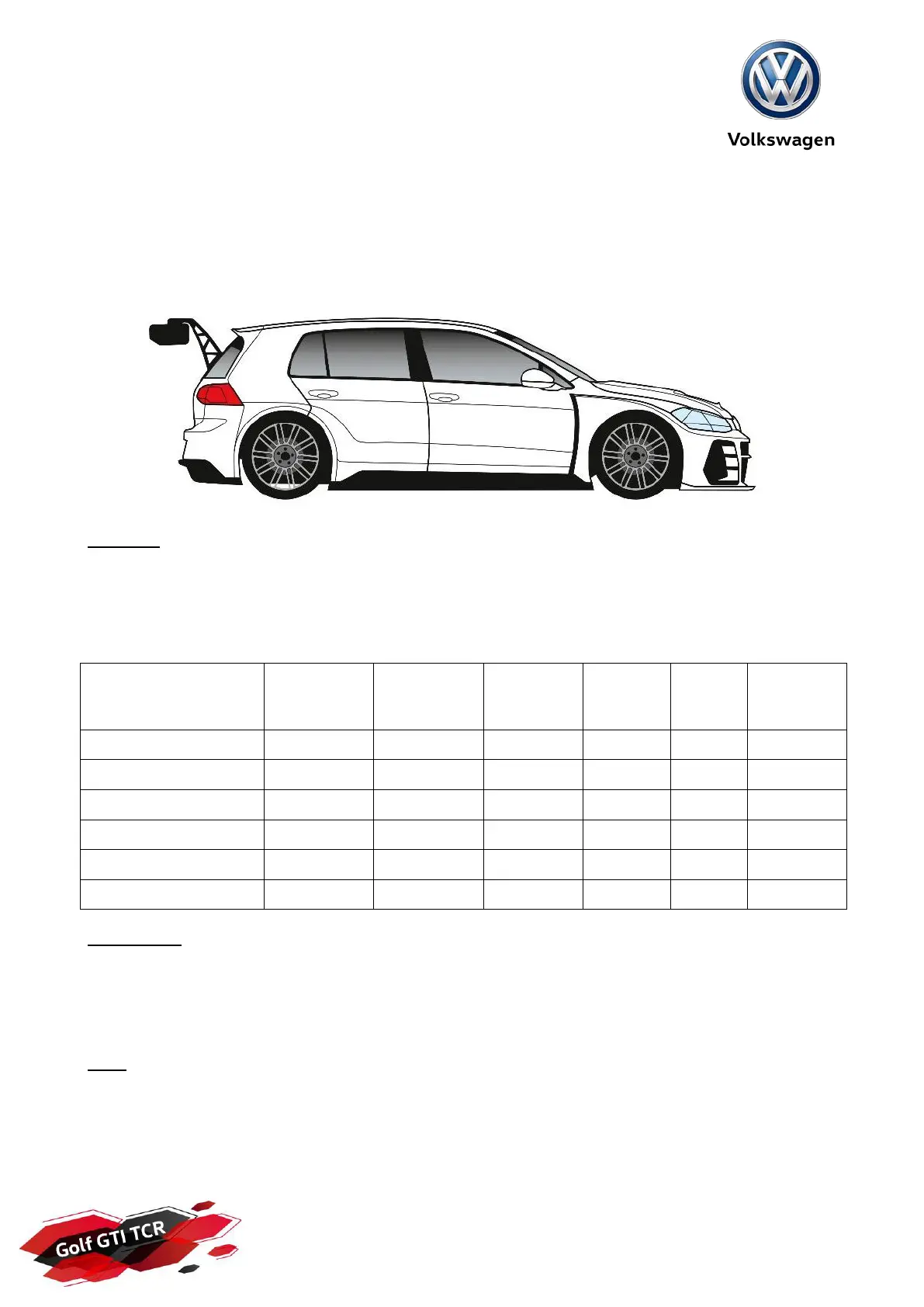

4.12 Aerodynamics
It’s strongly recommended checking periodically that all aerodynamic parts and their fixations are in good
conditions.
Rear wing:
- The rear wing has extensive regulation. Zero is the standard setting for the car.
- Wing angle -5° has a considerable influence on the rear down force.
- Wing angle -10º has a big influence on the rear down force as well as in drag.
- Lateral plates are individually adjustable.
Aero Map
Ground
Clearance
Front
Ground
Clearance
Rear
Rear Wing
Angle
Δ Drag
Δ Down
Force
Δ Balance
Forward
RH 80 mm
80 mm
80 mm
0 ° 1,5% -2,5% -5,0%
RH 70 mm / Reference
70 mm
70 mm
0 ° 0,0% 0,0% 0,0%
Pitch + 10 mm
70 mm
80 mm
0 ° 1,0% 5,0% 2,0%
Pitch -10 mm
80 mm 70 mm
0 ° 0,5% -10,0% -5,0%
Rear Wing 5°
80 mm
80 mm
5° 6,0% 8,0% -20,0%
Rear Wing -5°
80 mm
80 mm
-5 ° -3,0% -18,5% 20,0%
Front splitter:
- Check periodically the fixations. It has to be in good conditions.
- Check the front splitter angle that has to be at 0º when pitch is 0º.
Pitch:
- Measure the pitch angle on the body shell over the door sill
