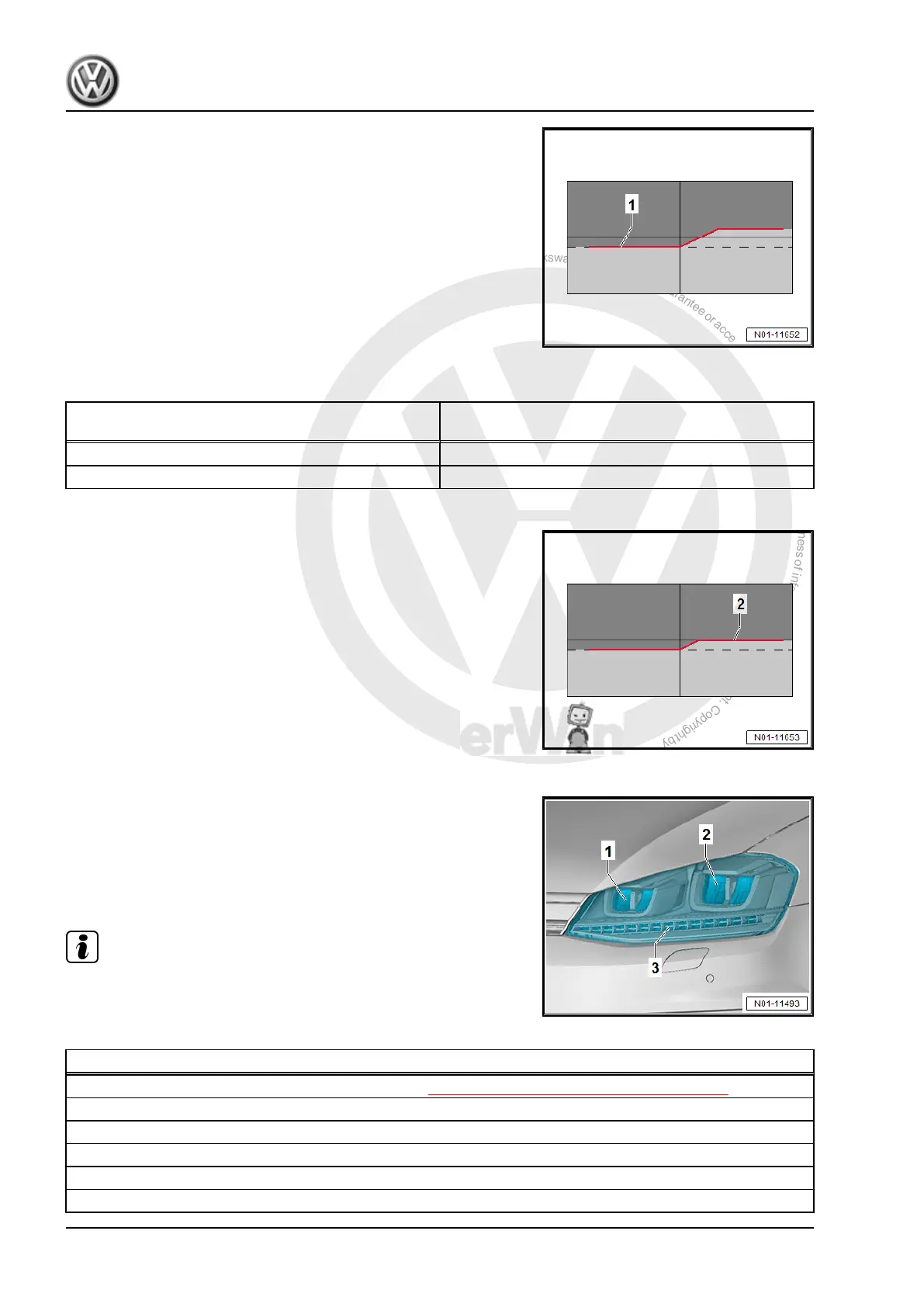

VOL: visual optical aim left -1-
– Check if the left level cut-off line contacts the dividing line -1-
on the headlamp adjusting unit test surface.
Angle Dimension for SAE VOR HID Headlamp, LED Headlamp
and Dynamic Light Assist Headlamp
Fuel gauge
level
Angle dimension
0 to 1/2 0.0 %
1/2 to 1 0.0 %
VOR: visual optical aim right -2-
– Check if the right level cut-off line contacts the dividing line
-2- on the headlamp adjusting unit test surface.
4.59.4 LED Headlamps: Adjusting
Overview LED Headlamp, e-Golf
1 - High Beam Headlamp Reflector
2 - Low Beam Reflector
3 - Left Front Turn Signal Bulb - M5- or Right Front Turn Signal
Bulb - M7- LED version, cannot be replaced separately
Note
Adjusting the headlamps is invoiced separately.
Headlamp Range Control, Performing Basic Setting
ODIS Service
– Connect the Vehicle Diagnostic Tester . Refer to ⇒ “3.5 Vehicle Diagnostic Tester ”, page 14 .
– Switch on the ignition.
– Perform the vehicle identification.
– Enter the work order data or select “no work order”.
– Select “control module”.
– Select “headlamp range control”.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
174 4. Procedure Descriptions
