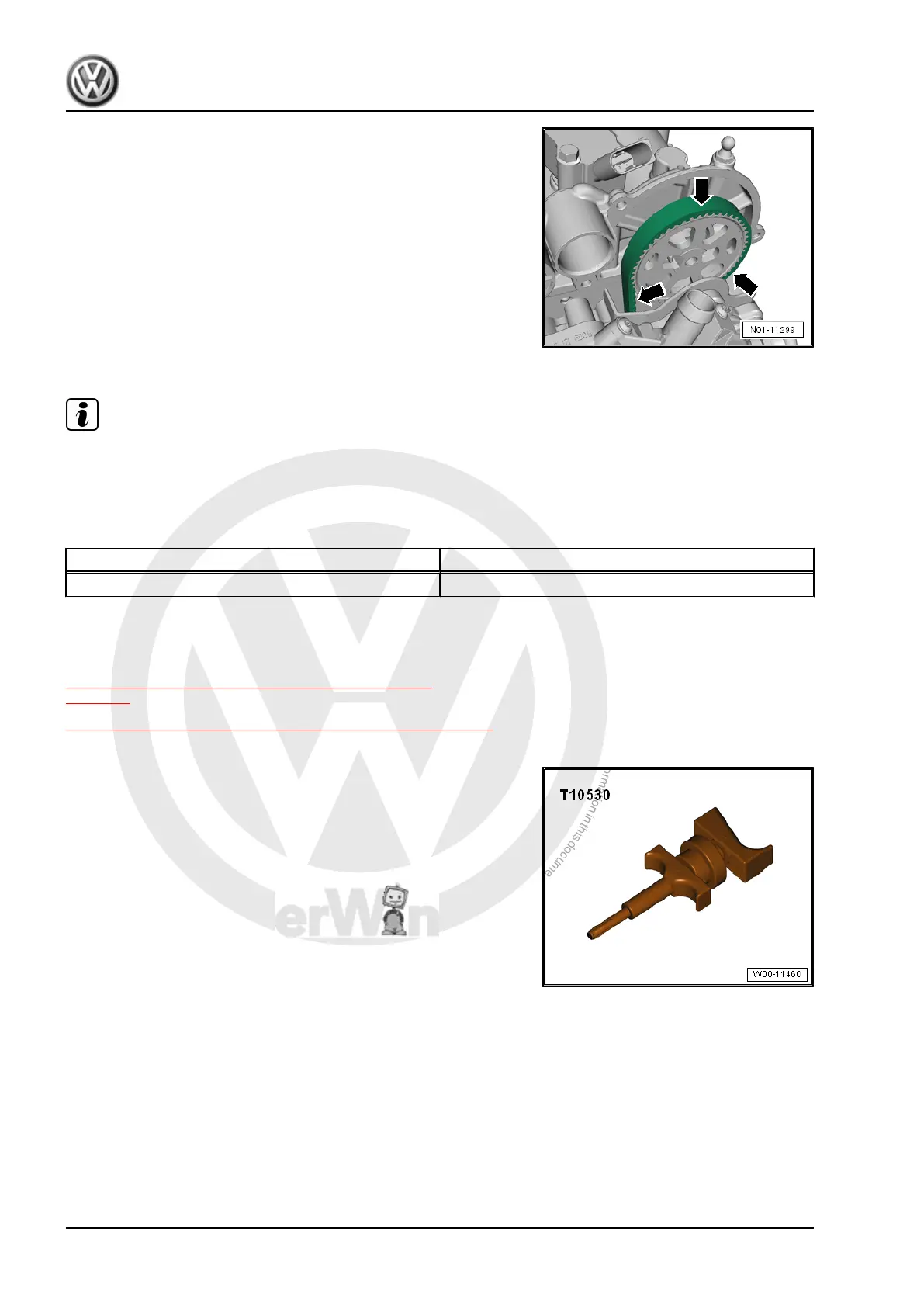

– Turn the crankshaft at the crankshaft belt pulley bolt in the
direction of engine rotation and then check the entire toothed
belt for the following conditions:
♦ Cranks, cross-sectional breaks, tears (on side of cover)
-arrow-
♦ Lateral movement
♦ Fraying of cords
♦ Tears (in tooth base) -arrow-
♦ Separation (toothed belt body, belt cords)
♦ Surface cracks (plastic shroud)
♦ Oil or grease contamination
Note
It is essential to replace toothed belt if malfunctions are found.
This will prevent any belt malfunctions. Replacing the toothed belt
is a repair procedure.
Assembly is done in the reverse order.
Tightening Specification Nm
Bolt for the toothed belt guard 8
4.75 Spark Plugs, Replacing
⇒ “4.75.1 Spark Plugs, Replacing, 1.4L TSI Engines”,
page 209 .
⇒ “4.75.2 Spark Plugs, Replacing, 2.0L TSI Engine”, page 211 .
Special tools and workshop equipment required
♦ Puller - T10530-
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
208 4. Procedure Descriptions
