4.73 Camshaft Drive Toothed Belt, Checking
⇒ “4.73.1 Toothed Belt Condition, Checking, 1.4L TSI Engines”,
page 202 .
Note
♦
Only applies to gasoline engines that do not have a specified
toothed belt replacement interval.
♦
For engines without a specified toothed belt replacement in‐
terval. Refer to
⇒ “2.2 Maintenance Tables for Market Designation A”,
page 5 .

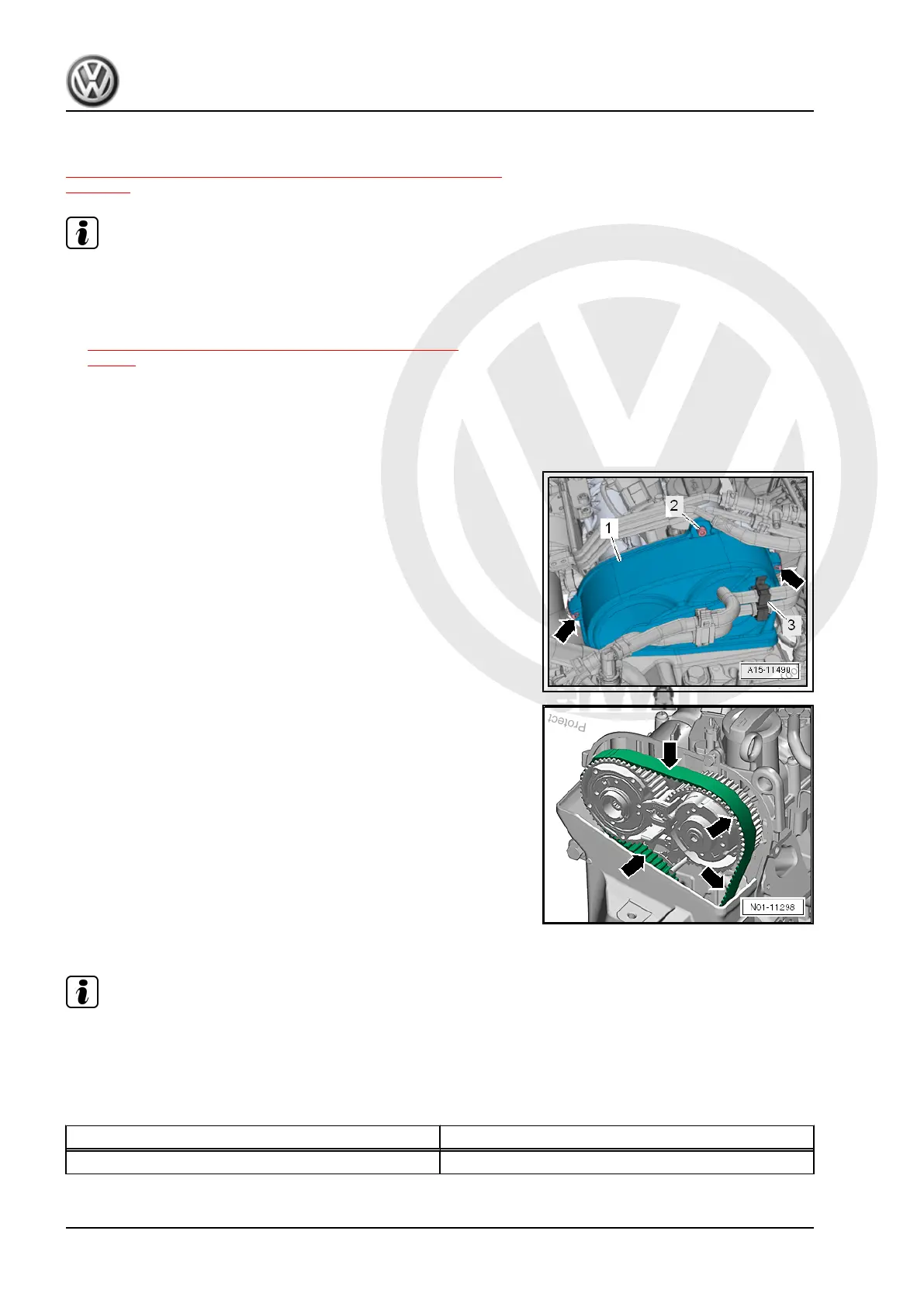

4.73.1 Toothed Belt Condition, Checking, 1.4L
TSI Engines
Procedure
– Free up the hoses from bracket -3-.
– Remove the bolt -2-.
– Loosen the clamps -arrows-, and remove the upper toothed
belt guard -1-.
– Turn the crankshaft at the crankshaft belt pulley bolt in the
direction of engine rotation and then check the entire toothed
belt for the following conditions:
♦ Cranks, cross-sectional breaks, tears (on side of cover)
-arrow-
♦ Lateral movement
♦ Fraying of cords
♦ Tears (in tooth base) -arrow-
♦ Separation (toothed belt body, belt cords)
♦ Surface cracks (plastic shroud)
♦ Oil or grease contamination
Note
It is essential to replace toothed belt if malfunctions are found.
This will prevent any belt malfunctions. Replacing the toothed belt
is a repair procedure.
Assembly is done in the reverse order.
Tightening Specification Nm
Bolt for the toothed belt guard 8
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
202 4. Procedure Descriptions
