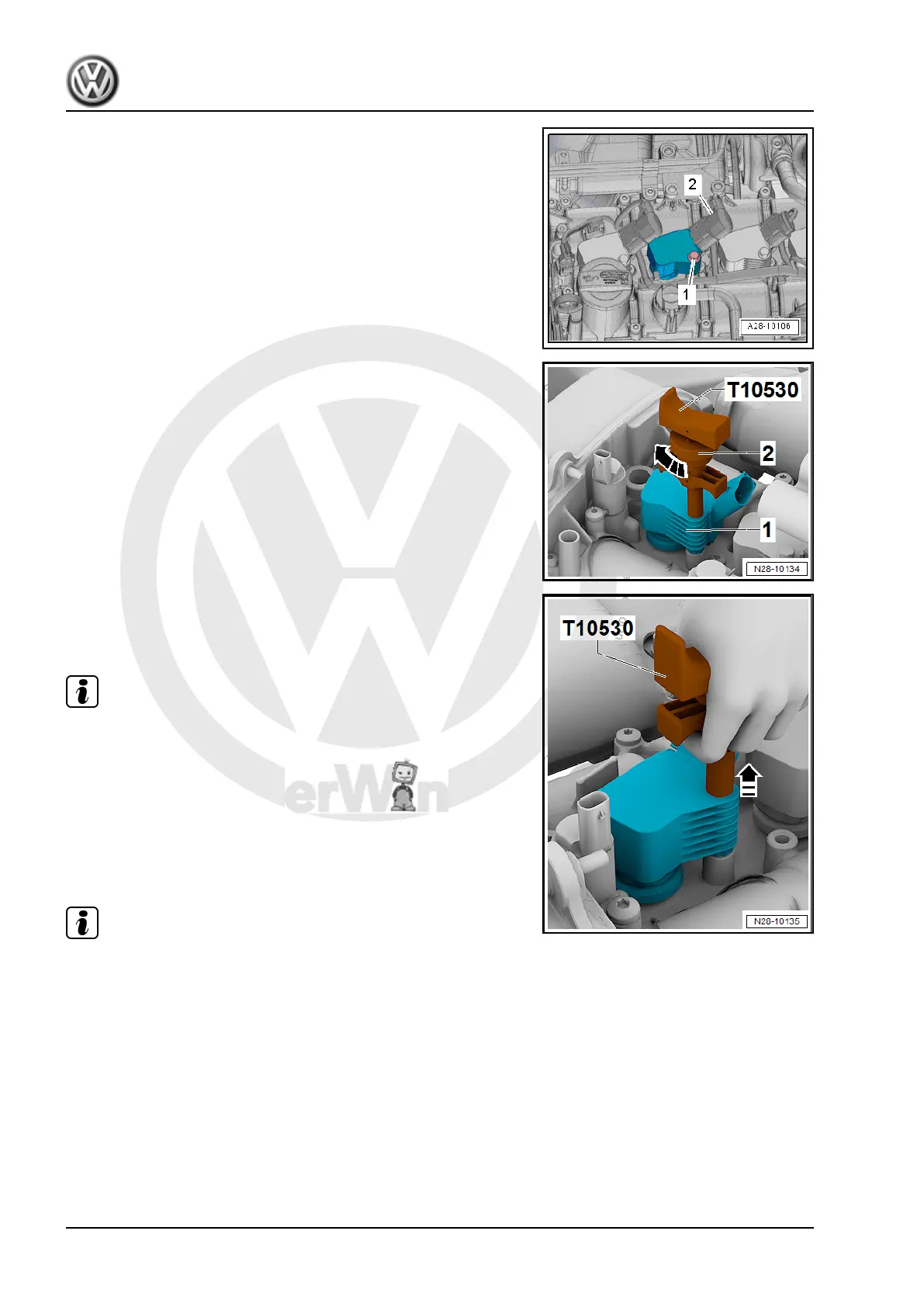

– Disconnect the connector -2-.
– Remove the bolt -1-.
– Push the Puller - T10530- until stop in the ignition coil opening
-1-.
– Tighten the knurled nut -2- in the -direction of the arrow-.
– Pull the ignition coil on the Puller - T10530- in the
-direction of the arrow- out of the cylinder head cover.
Repeat the procedure for all ignition coils with power output stage.
Note
♦
Note the installed position of ignition coils with power output
stages.
♦
Make sure to not kink or damage the lines.
– Remove spark plugs using Spark Plug Removal Tool -
3122B- .
Installing
Note
♦
Lubricate the ignition coils with power output stage with Sili‐
cone Grease whenever installing new spark plugs. Refer to
the Parts Catalog.
♦
The correct silicone paste is shown on the Parts Catalog with
the ignition coils and/or the spark plugs.
Golf 2013 ➤ , Golf Sportsvan 2015 ➤ , Golf Variant 2014 ➤ , e-Golf 2014 ...
Maintenance - Edition 06.2015
218 4. Procedure Descriptions
