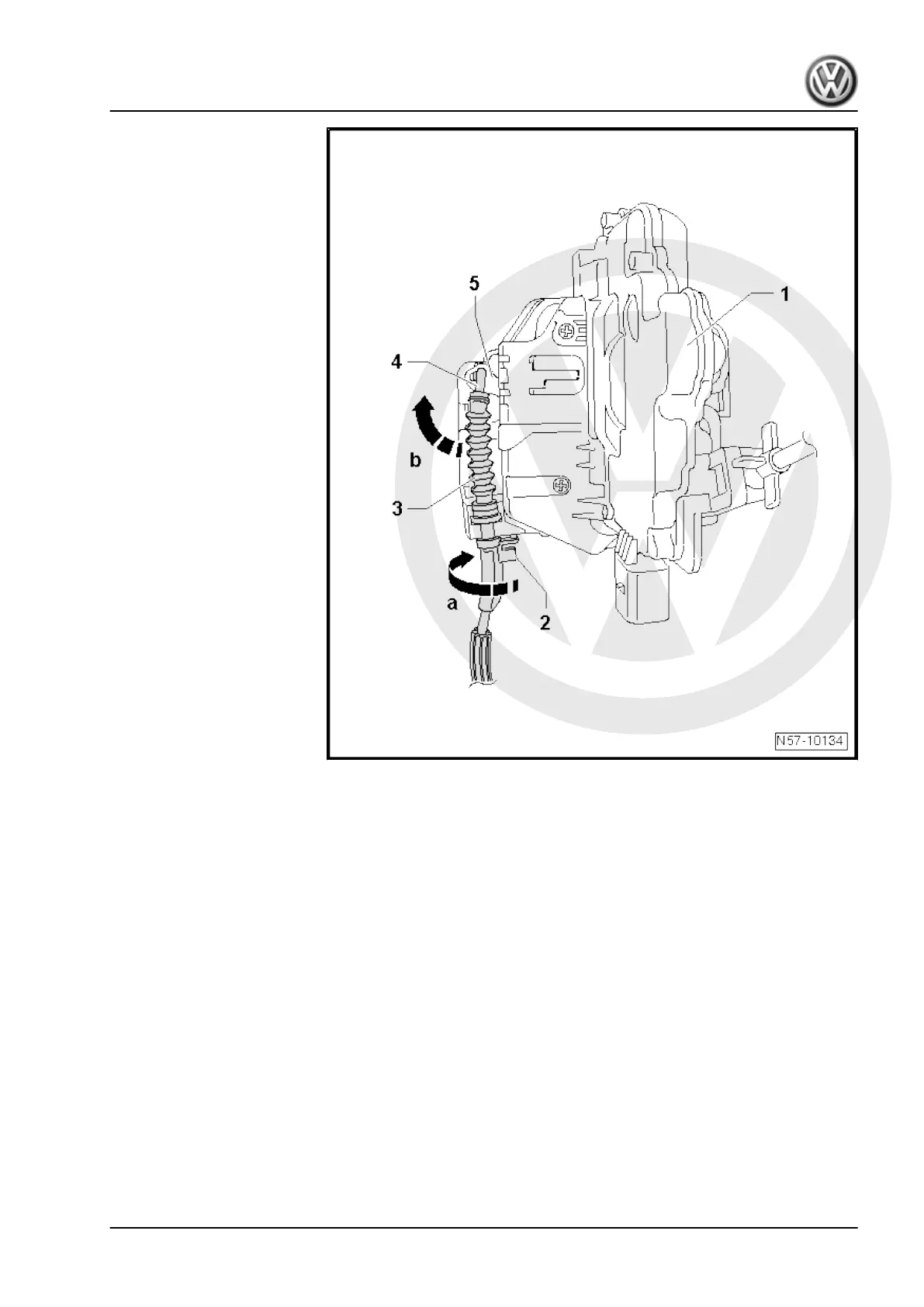

– Turn lock -1- around.
– Release retainer -2- by turning in direction of -arrow a-.
– Remove retainer -2- from mounting.
– Swing cable -3- in direction of -arrow b- and take cable nipple
-4- out of eyelet -5-.
2.9.2 Installing
Installation is carried out in the reverse order of removal.
• Afterwards, a functional check must be performed, as an in‐
correctly adjusted or incorrectly engaged cable cannot open
the lock.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
2. Door components 113
