❑ This bolt must be removed to remove door from hinge.

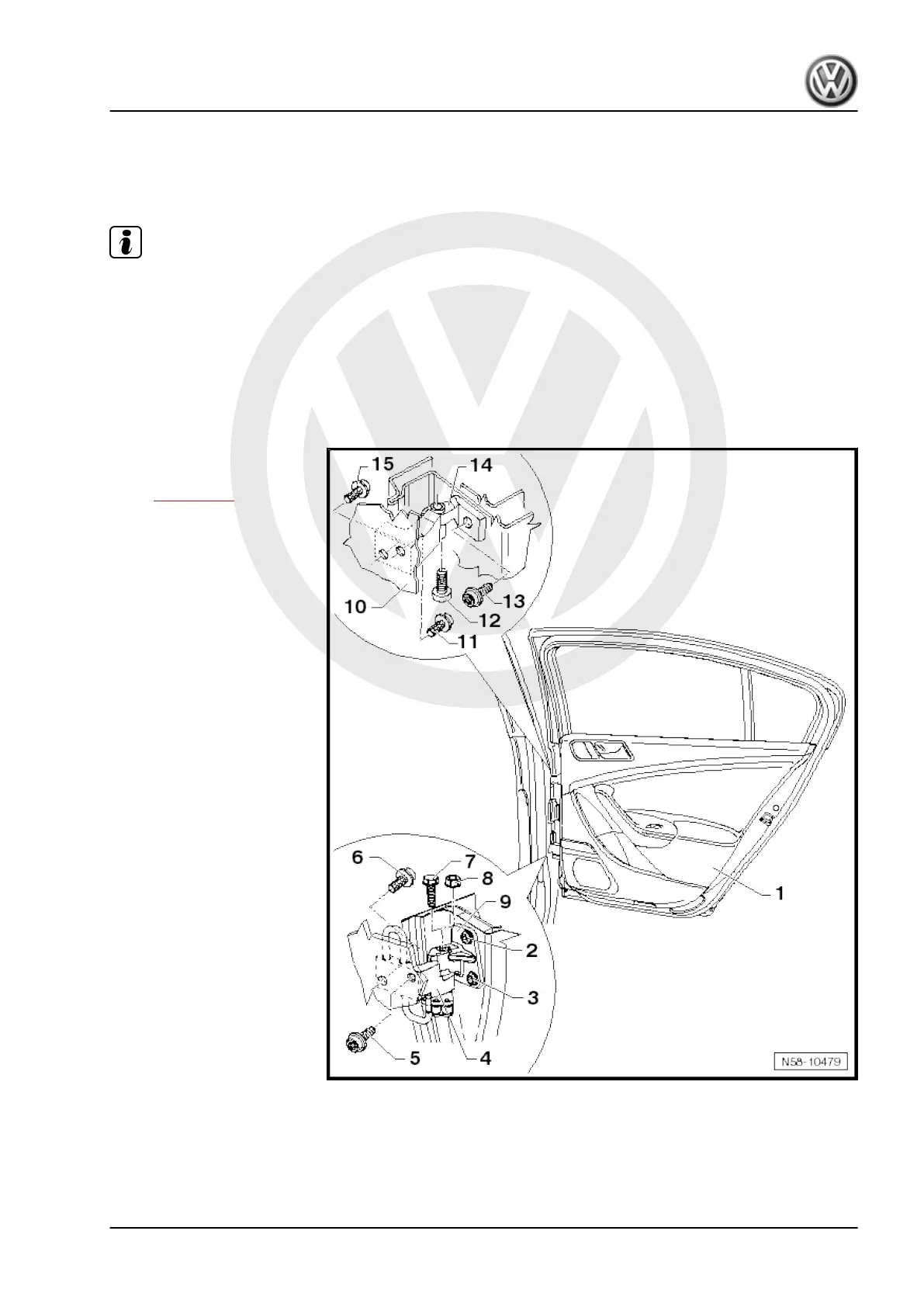

1.3 Assembly overview - door hinges
Note
♦ The right side is shown. The left side is similar.
♦ The hinge bolts must always be renewed if loosened.
♦ The specified torque for the hinge bolts to the door (bolts -2, 3 and 13-) has been revised.
♦ The lower hinge parts can be bolted on with a bolt -7- or a nut -8-.
♦ If a new hinge is installed, it must be greased. Work specifications can be found in the “Maintenance manual”
⇒ Maintenance ; Booklet 21.1 .
1 - Door
❑ Removing and installing
⇒ page 134
2 - Multi-point socket head bolt
❑ Specified torque: 50 Nm
❑ Always renew bolts after
loosening.
3 - Multi-point socket head bolt
❑ Specified torque: 50 Nm
❑ Always renew bolts after
loosening.
4 - Door hinge with arrester
❑ Lower part is bolted to
upper part of hinge with
bolt -7- or nut -8-.
❑ The hinge is split.
5 - Multi-point socket head bolt
❑ Installed from inside ve‐
hicle.
❑ Remove lower B-pillar
trim ⇒ General body re‐
pairs, interior; Rep. gr.
70 ; Pillar and side panel
trim; Removing and in‐
stalling B-pillar lower
trim
❑ Specified torque: 20 Nm
+
1
/
4
turn further (90°)
❑ Always renew bolts after
loosening.
6 - Multi-point socket head bolt
❑ Specified torque: 20 Nm
+
1
/
4
turn further (90°)
❑ Always renew bolts after loosening.
7 - Bolt
❑ Specified torque: 28 Nm
❑ This bolt or nut -8- must be removed to remove door from hinge.
