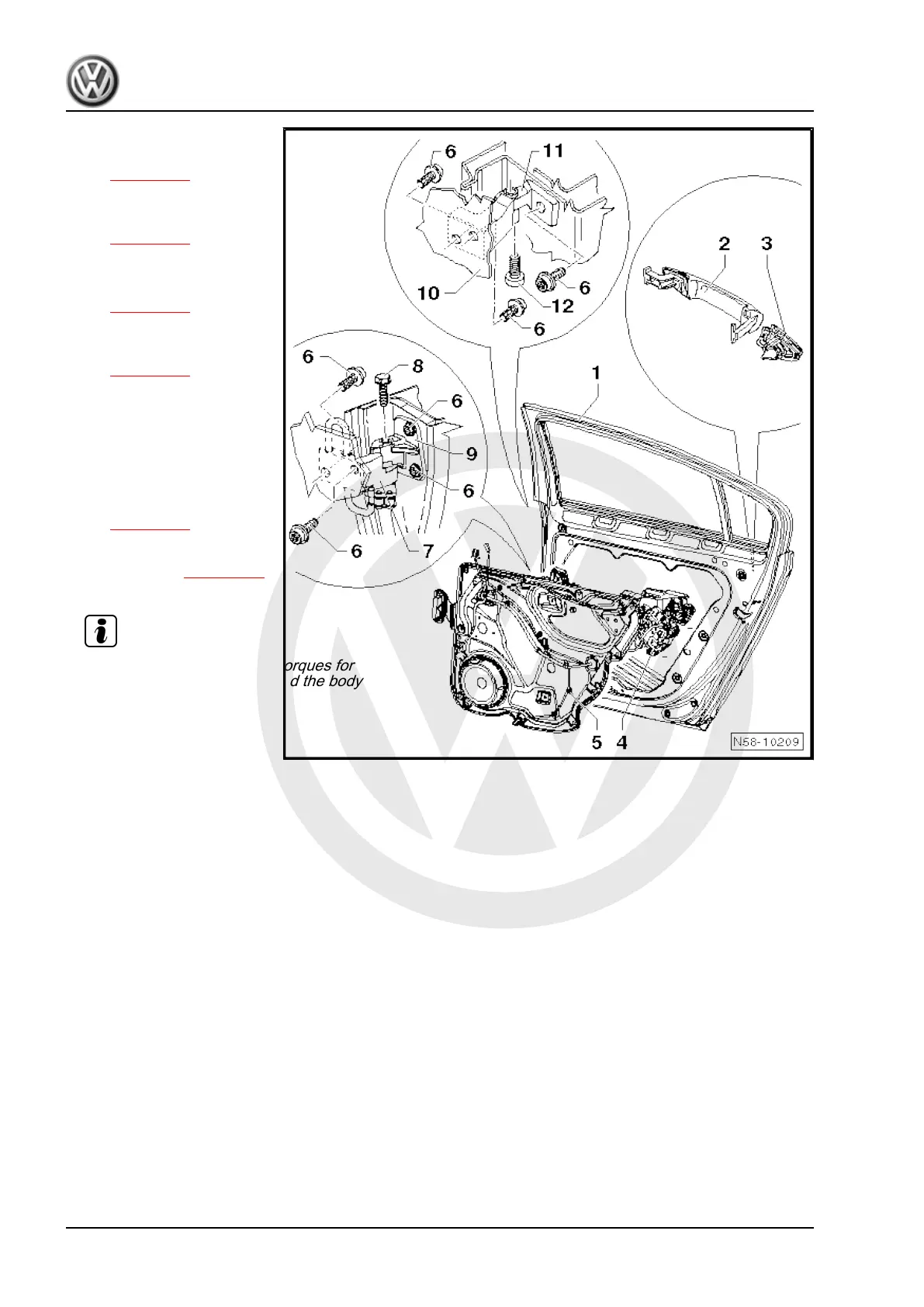

1 - Door
❑ Removing and installing
⇒ page 134
2 - Door handle with base
❑ Removing and installing
⇒ page 158
❑ Remove door handle
with access and start
authorisation
⇒ page 159
3 - Lock cylinder housing
❑ Removing and installing
⇒ page 157
❑ Without cylinder lock.
4 - Door lock
❑ The door lock can be re‐
moved only together
with the assembly carri‐
er.
❑ Removing and installing
⇒ page 161
5 - Subframe
❑ Removing ⇒ page 148
6 - Multi-point socket head bolt
Note
The different specified torques for
tightening to the door and the body
must be complied with.
❑ Specified torque to
body: 20 Nm +
1
/
4
turn
(90°) further
❑ Specified torque to door: (50 Nm)
❑ Always renew bolts after loosening.
7 - Door hinge with arrester
❑ Lower part is secured to upper part of hinge with bolt -8-.
❑ The hinge is split.
8 - Bolt
❑ Specified torque: 28 Nm
❑ This bolt must be removed to remove door from hinge.
9 - Door hinge
❑ Upper part is secured to lower part of hinge with bolt -8-.
❑ The hinge is split.
10 - Door hinge
❑ Lower part is secured to upper part of hinge with bolt -12-.
❑ The hinge is split.
11 - Door hinge
❑ Upper part is secured to lower part of hinge with bolt -12-.
❑ The hinge is split.
12 - Bolt
❑ Specified torque: 28 Nm
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
132 Rep. gr.58 - Rear doors, door components
