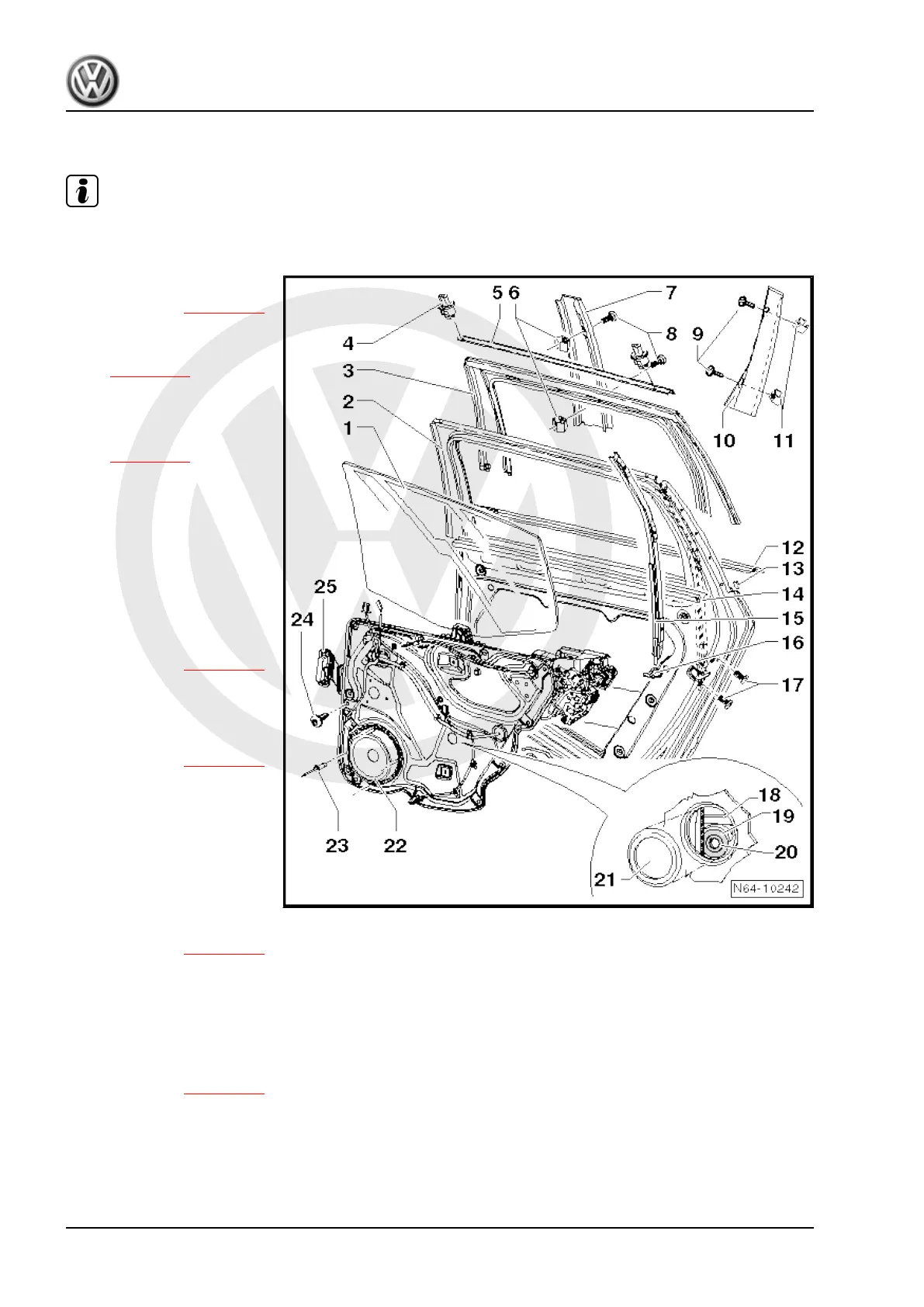

4.2 Assembly overview
Note
The right side is shown. The left side is similar.
1 - Door window
❑ Removing ⇒ page 367
2 - Door
❑ Removing and installing
⇒ page 142
3 - Window channel
❑ Pushed onto flange
❑ Removing and installing
⇒ page 373
❑ Version with and without
trim strip
4 - Clip
❑ To secure trim strip in
window channel
❑ Qty. 2
5 - Trim strip
❑ Inserted in window
channel
❑ Removing ⇒ page 375
6 - Speed nut
❑ Qty. 2
7 - Front trim
❑ Removing ⇒ page 368
8 - Bolt
❑ Qty. 2
❑ Specified torque: 2 Nm
9 - Bolt
❑ Qty. 2
❑ Specified torque: 2 Nm
10 - Rear trim
❑ Removing ⇒ page 369
11 - Speed nut
❑ Qty. 2
12 - Window slot outer seal
❑ Pushed onto flange
❑ Version with and without trim strip
❑ Removing ⇒ page 367
13 - Carrier
14 - Window slot inner seal
❑ Pushed onto flange
