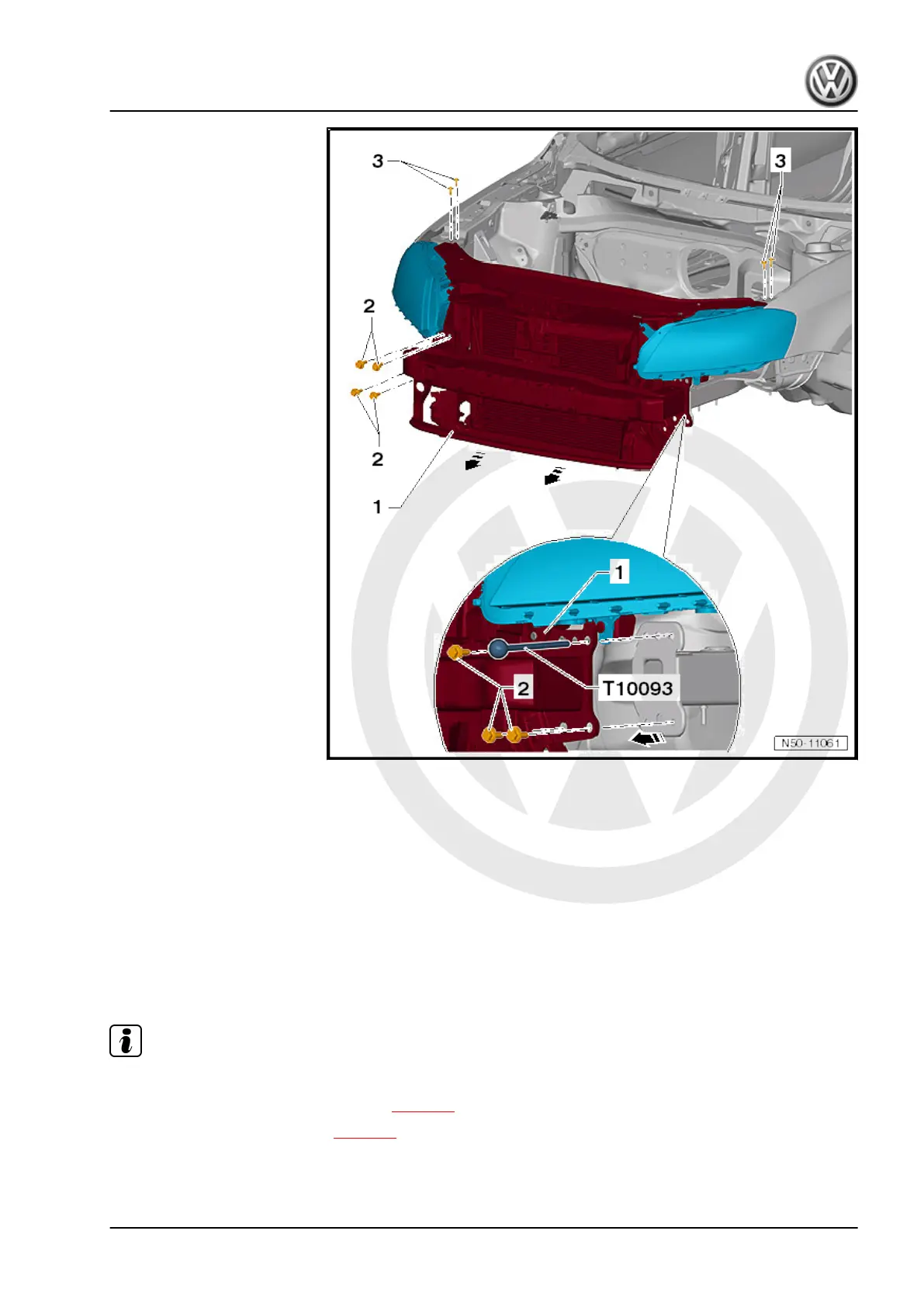

– Push lock carrier together with add-on parts -1- on the guide
pins - T10093- and onto the longitudinal member.
– Fit bolts -3- and -2- in place.
– Align
lock carrier together with add-on parts -1- to longitudinal
members and between wings ⇒ Body Repairs; Rep. gr. 00 ;
Body gaps/shut lines; Body - front .
– Specified torque for bolts -3-: 8 Nm
– Specified torque for bolts -2-: 60 Nm
The remaining installation steps are carried out in the reverse se‐
quence of removal.
Note
♦
Make sure that the charge air cooler pressure hoses are properly refitted.
♦
Pressure hose with plug-in connector ⇒ page 8
♦
Pressure hose with hose clip ⇒ page 8
♦
Do not allow hoses or lines to be pinched.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Lock carrier 7
