♦ Dimension -c- = 0.7 … 2.7 mm
If measured values differ from specifications, respective glass
panel must be adjusted.
♦ Adjusting front glass panel ⇒ page 222
♦ Adjusting rear glass panel ⇒ page 222

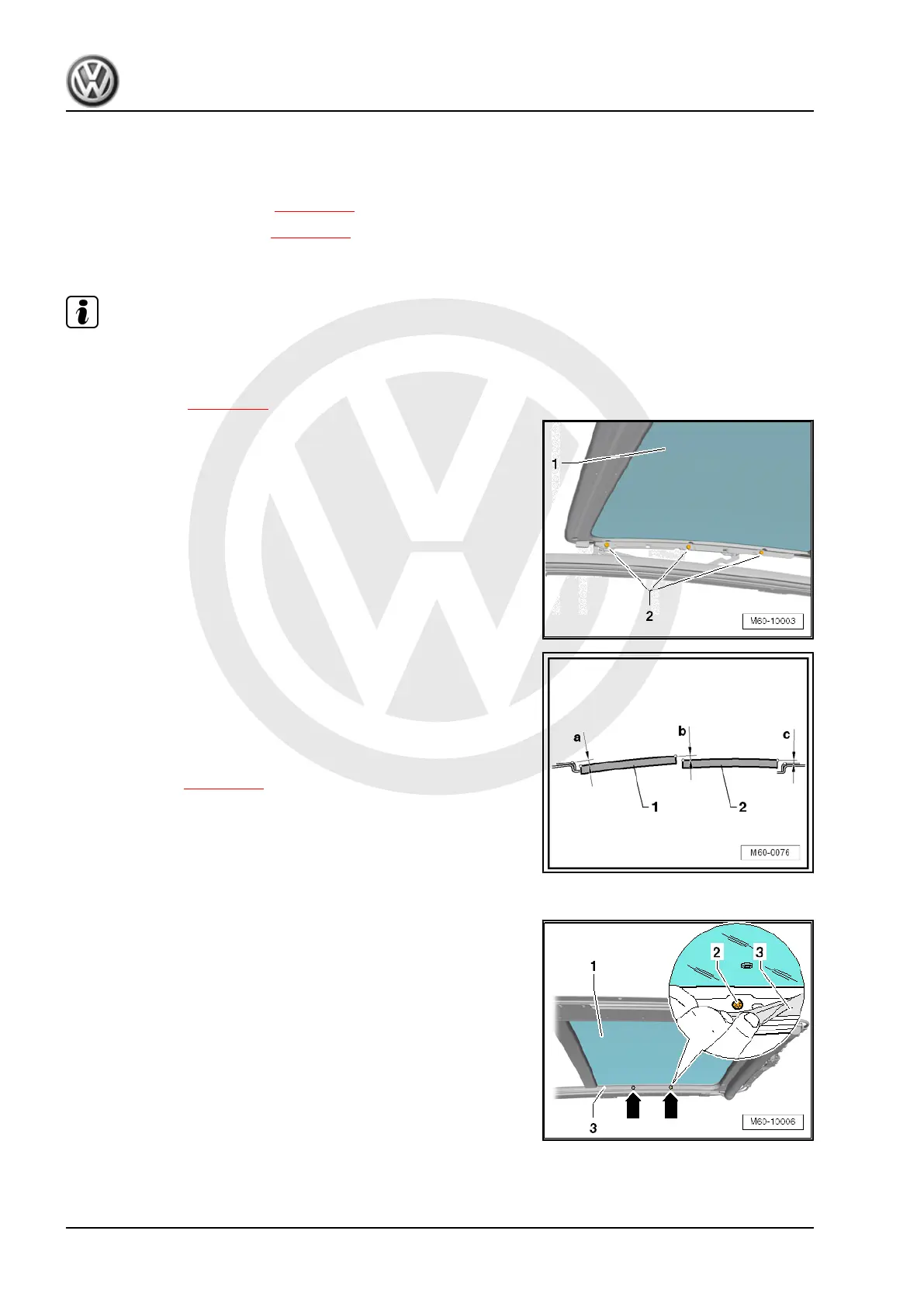

3.7.2 Adjusting front glass panel
Note
The glass panel height adjustment is performed after the glass
panel has been closed from slide open position.
– Remove trims ⇒ page 215 .
– Only undo the two front screws -2- on the left and right,
– Close glass panel.
– Adjust glass panel -1- according to illustration.
♦ Dimension -a- : 0.7 … 2.7 mm
♦ Dimension -b-: 0 … 1.3 mm
– Insert and tighten screws on left and right, specified torque: 5
Nm.
– Installing trim ⇒ page 217 .
3.7.3 Adjusting rear glass panel
– Pull inner seal -3- inwards slightly at indicated points
-arrows- and undo screws -2-.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
222 Rep. gr.60 - Sunroof
