Note

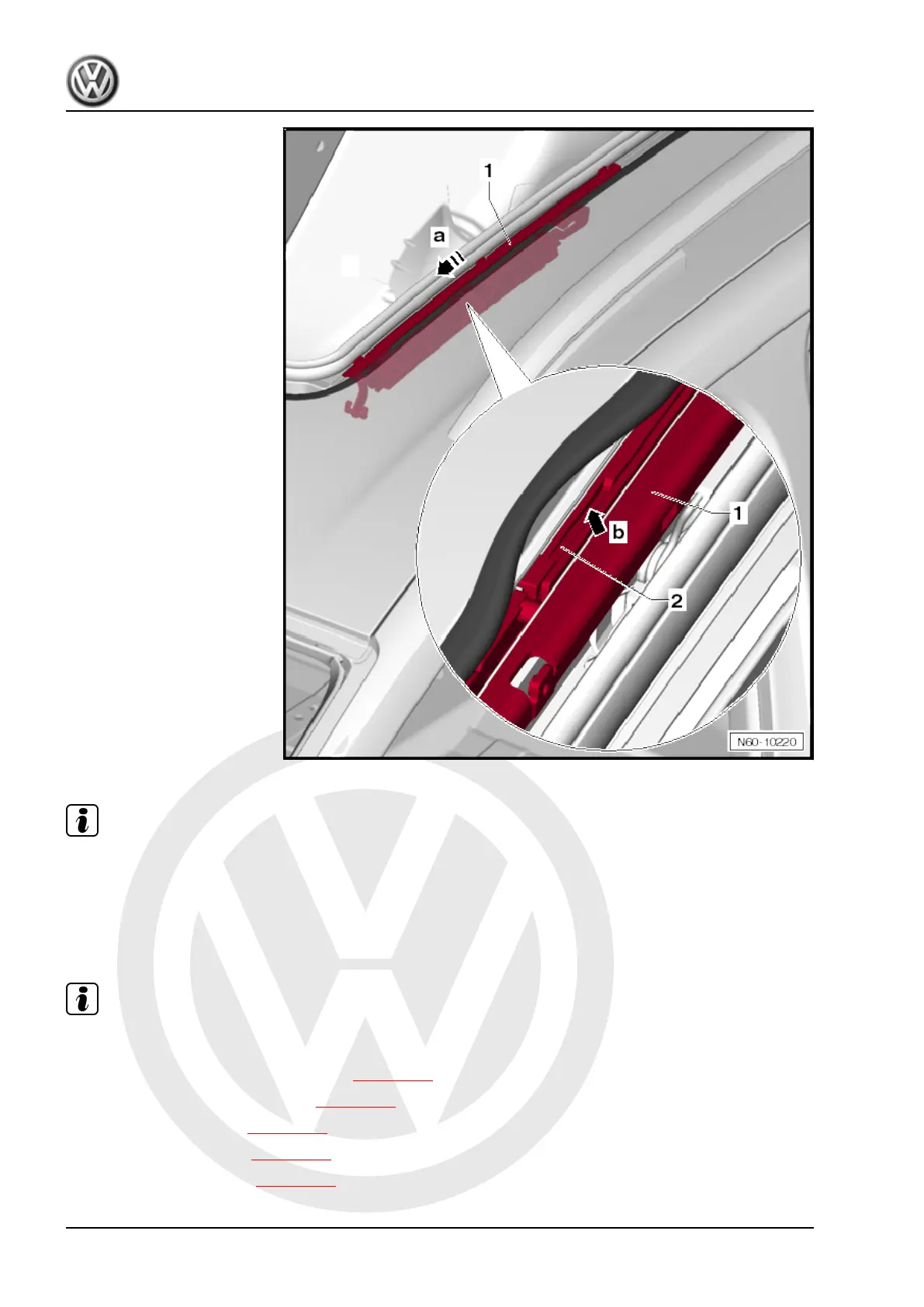

Do not pull or push tilting mechanism guide plate.
– Push glass panel tilting mechanism only by indicated position
-arrow b- on slider -2-, not by guide plate -1-.
– Push tilting mechanism fully forwards -arrow a- on both sides
until it is completely lowered.
Note
Tilting mechanism is lowered when it is moved.
– Attach rear section to assembly frame ⇒ page 258 .
– Install assembly frame in vehicle ⇒ page 255 .
– Install rear glass panel ⇒ page 219 .
– Install front glass panel ⇒ page 215 .
– Install sliding roof motor ⇒ page 235 .
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
268 Rep. gr.60 - Sunroof
