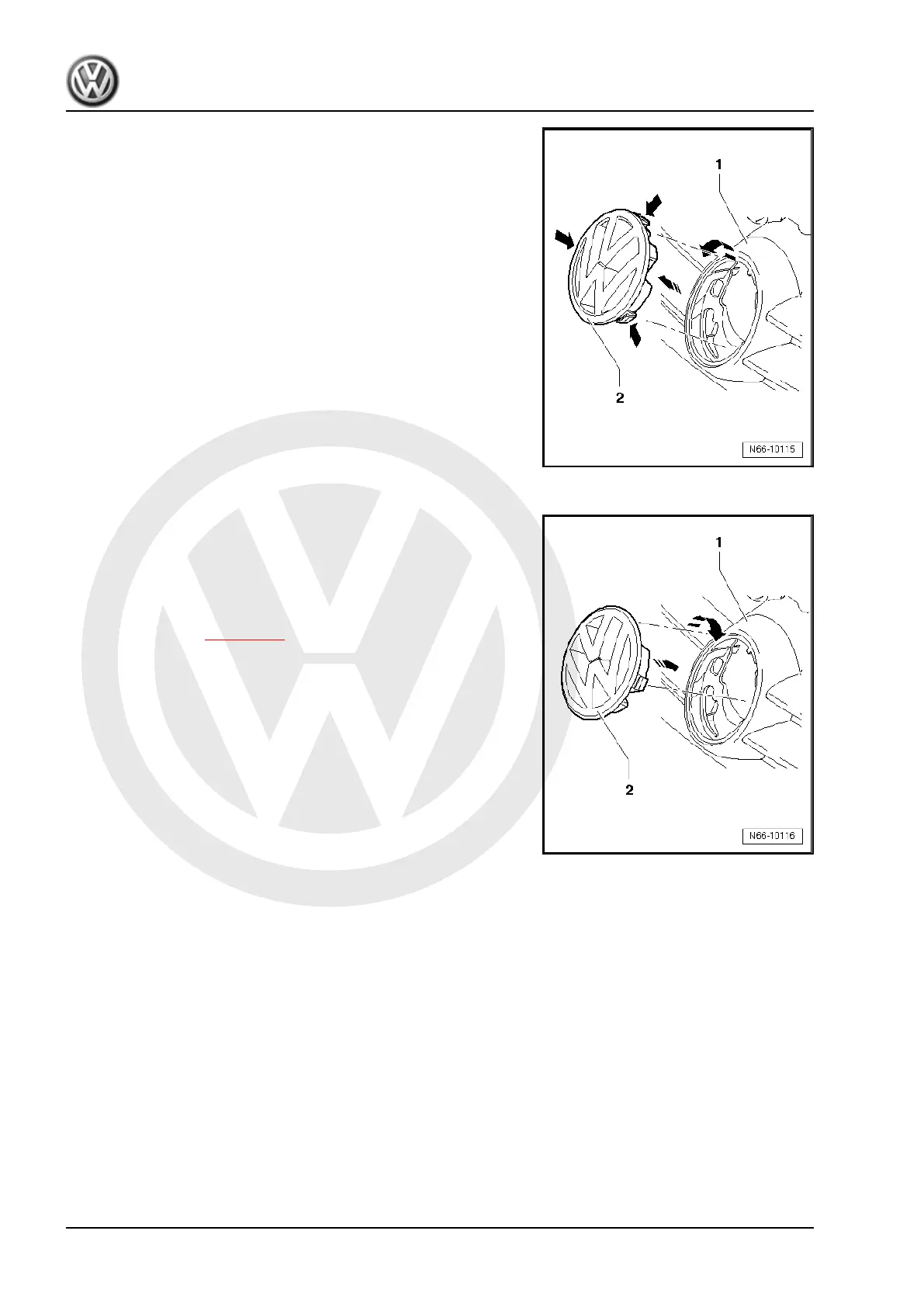

– Release catches -arrows- on rear of emblem -2-.
– Slightly turn emblem -2- in direction of -arrow- and pull emblem
forwards out of radiator grille -1-.
3.3.2 Installing
– Guide emblem -2- with locking lugs in cut-outs of radiator grille
-1-.
– Slightly turn emblem -2- in direction of -arrow- until emblem
-2- engages with radiator grille -1-.
– Install honeycomb grille (if fitted) on rear of radiator grille.
Install radiator grille ⇒ page 395 .
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
396 Rep. gr.66 - Exterior equipment
