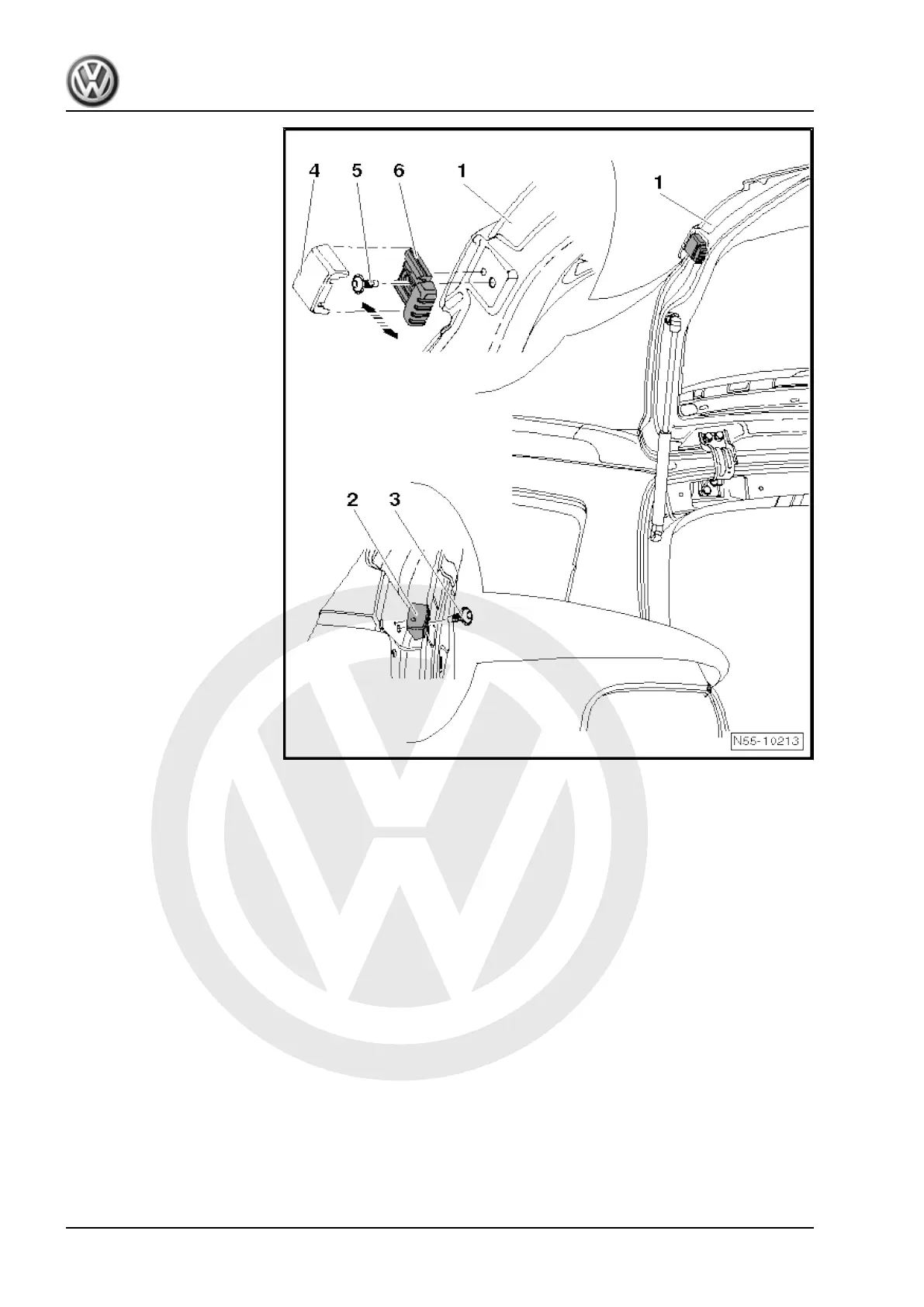

– Tighten stop buffer -2-, specified torque for bolt -3-: 10 Nm.
– Lever cover -4- out of stop buffer.
– Loosen bolt -5- on stop buffer -6- slightly until the stop buffer
can be moved into uppermost position -arrow-.
– Close rear lid -1- to first detent position by applying light pres‐
sure to centre area.
– Open rear lid again.
– Tighten bolt -5-, specified torque: 10 Nm.
– Press cover -4- onto stop buffer.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
74 Rep. gr.55 - Bonnet, rear lid
